OPERATOR'S MANUAL
10/ OPERATING PROCEDURES

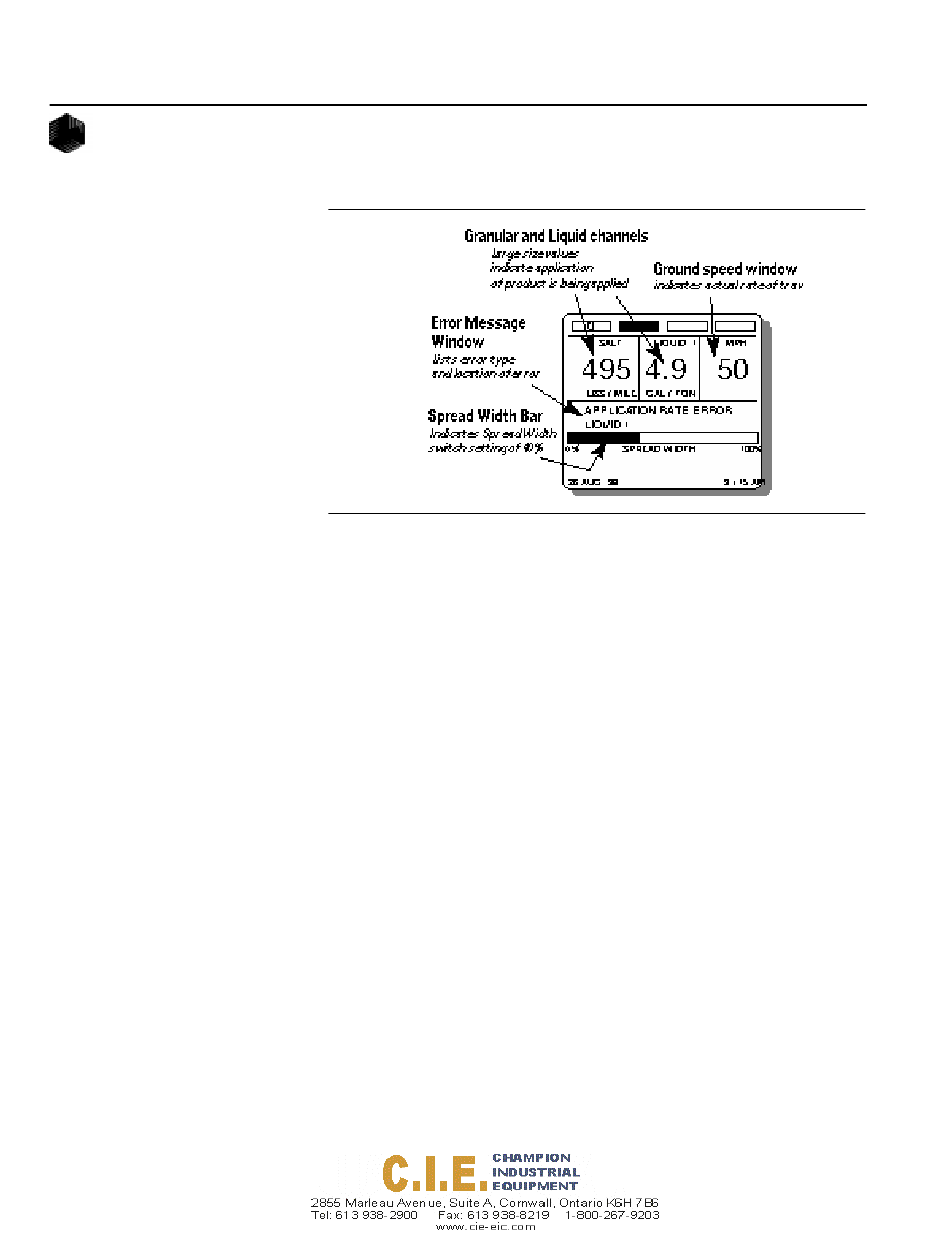

Figure 7. OPERATE Screen Showing Product Application
4. Rotate the WIDTH ADJUST knob on the Switch Module
while observing the SPREAD WIDTH bar on the display.
The rotational speed of the spinner changes with the knob setting.
The horizontal bar graphically represents the position of the
SPREAD WIDTH knob. The bar is at the 100% position when the
knob is fully clockwise, corresponding to maximum spinner speed.
The operator determines the correct setting by observing the spread
pattern. The bar is hollow until the spinner is operating.
5. Note the date and time across the bottom edge of the screen.
6. Observe the boom graphics across the top of the screen.
All boom sections appear as rectangle blocks during anti-ice
operation. Each section is hollow until activated.
7. Observe the area for alarm messages.
Alarm messages appear (flashing) in the middle of the screen, above
the SPREAD WIDTH bar (See Figure 7).
