OPERATOR'S MANUAL

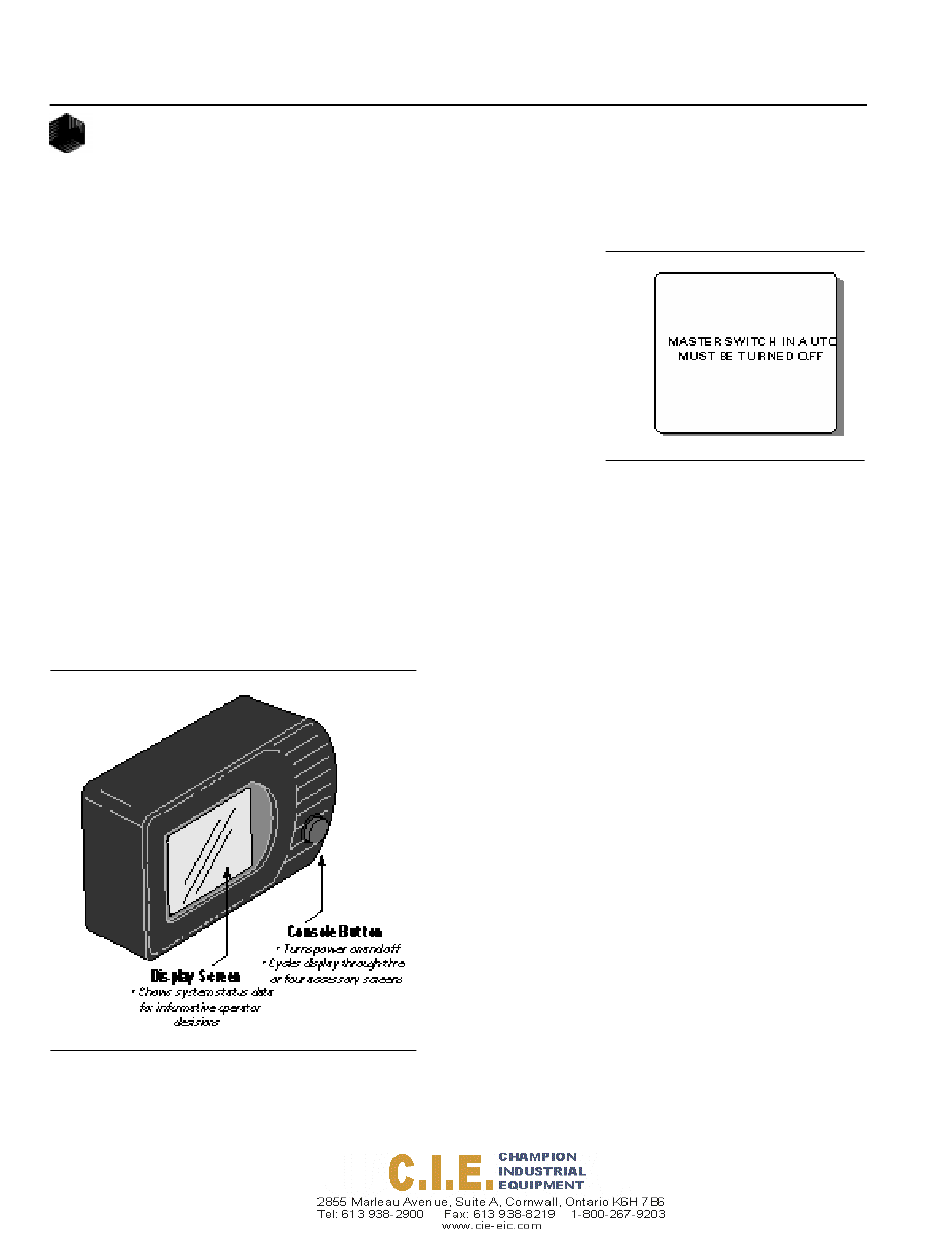

Figure 5. Console Showing Functional Items
8/ OPERATING PROCEDURES

STARTING THE SYSTEM

1. Verify the MASTER Switch on
the Switch Module is in the
OFF position (See Figure 3).
If the Master Switch is in the
AUTO position during power up,
a warning message with audible
alarm occurs until the switch is
turned OFF (See Figure 4).

2. Turn on the ignition switch.

If the Console was on when the
ignition was last turned off, the
display comes on with the
ignition switch. A screen briefly
shows the DICKEY-john logo
followed by the OPERATE screen (See Figure 6).
If the console does not power on, the console button was used to
properly power down the unit. Proceed to Step 3.
3. Briefly press the Console button (less than a second) to apply
power to the Console (See Figure 5).
If the button is held too long, a beep sounds indicating
the Operate screen is skipped and an accessory screen
appears instead (This screen described later). If the beep
is heard, turn the console off as indicated in Step 4 and
start again.
During start-up (power up), the Console automatically
closes all system actuators and performs self-tests, includ-
ing system configuration and application data. If an error
occurs at power up or during operation, an appropriate
error message displays with recovery information.
4. Turn the Console off by pressing and holding the
Console button until a beep sounds and the text on
the screen disappears (approx. 3 seconds) and then
release.
Power is removed when the screen goes dark. To restart,
repeat Step 3.
Figure 4. Master Switch
Warning Message
CONTROL POINT™
11001-1100-199904 Revision A
