Description (Continued)
Direct point callup displays individual points
alphabetically and then homes in on the logical
choice as more point information is entered
A Site Plan bitmap can be displayed for reference; icons
can be added to indicate system status

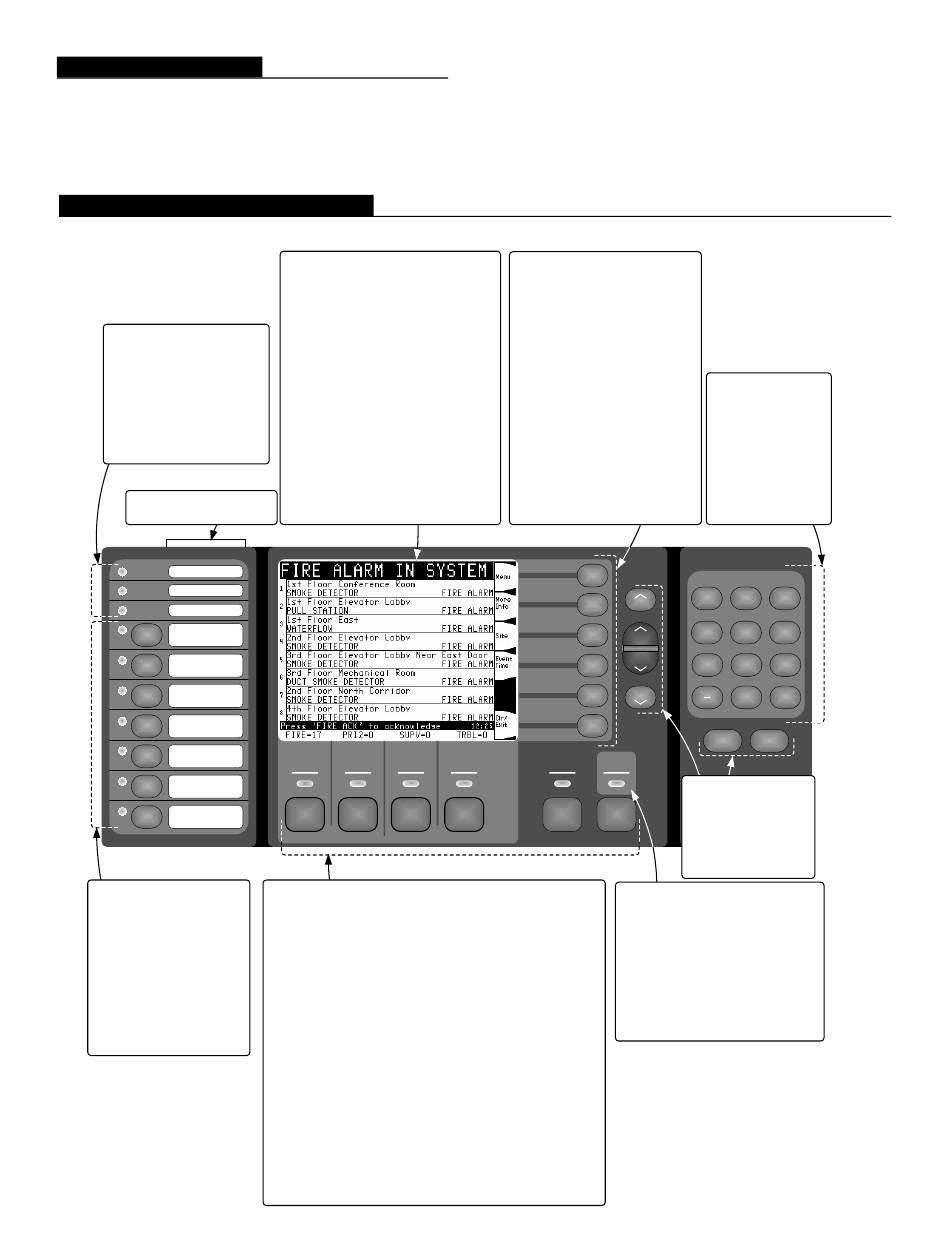

Control Panel Operation Reference
THREE PROGRAMMABLE
LEDs provide custom labeling,
the top two LEDs are selectable
as red or yellow, the third LED is
selectable as red or green
ULC SYSTEMS require
designating a Ground Fault
indicator
Custom label insert (typical
choices shown for reference)
Ground Fault
Waterflow-East
Waterflow-West
Manual Evac
City Disconnect
Door Holder
Bypass
Drill
Smoke Sensor
Almost Dirty Check
Language
Toggle
Lamp Test
SEVEN PROGRAMMABLE
FUNCTION SWITCHES, each
equipped with dual color LED
indicators; the top six LEDs are
selectable as either red or
yellow, the bottom LED is
selectable as either red or
green; NOTE: Program the
bottom switch as "Lamp
Test" for UL listed systems
320 x 240 DOT MATRIX DISPLAY, White
LED backlighting provides easy viewing;
operation is programmable for key inactivity
timeout and/or AC power fail
PRIMARY "ACTIVITY IN SYSTEM"
DISPLAY OPTIONS: Choices include "First
8" (shown below for "Fire Alarm in System"),
"First and Most Recent," "First 5 and Most
Recent," "Site Plan," "General Alarm," or
"Direct to List." After the event is
acknowledged, screen reverts to the
sequential event list until Clr/Exit softkey is
selected or after timeout (~ 30 seconds);
applicable to Fire Alarm, Priority 2 Alarm,
System Supervisory, and System Trouble,
each category is independently selectable
for primary display mode
Fire
Priority 2
System
Alarm
Alarm
Supervisory
Fire Alarm
Priority 2
Supv
Ack
Ack
Ack
ALARMS
WARNINGS
FIRE ALARM ACK acknowledges a Fire Alarm condition, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential alarm list
PRIORITY 2 ACK acknowledges a Priority 2 Alarm condition, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential Priority 2 alarm list
SUPV ACK acknowledges system supervisory conditions, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential supervisory condition list
TROUBLE ACK acknowledges system troubles, logs the
acknowledge, silences the operator panel and all annunciator tone-
alerts, and displays sequential trouble list
ALARM SILENCE causes audible and visible notification appliances
to be silenced (default operation, may be modified through panel
programming for compliance with local requirements)
SYSTEM RESET restores control panel to normal when all alarmed
inputs are returned to normal
Up to 50 custom point detail messages can be generated
Date formats are either MM/DD/YY or DD/MM/YY
Time formats are either 24 hour or 12 hour with AM/PM
System Normal screen supports a gray scale bitmap
(watermark) for location name, company logo, or site plan
SIX SOFT KEYS are available when
required. This sample provides Menu
to call up the available operations;
More Info to call up specific point
details, Site to call up the Site Plan
Graphic Screen, Event Time (while
pressed) displays time and date for all
displayed events, and Clr/Exit; the
following are other typical soft keys:
Point Enable and Disable
Force On or Arm
Force Off or Disarm
Return On/Off or
Arm/Disarm to Auto Mode
Event Time Request
More Information Request
Page Up
Previous
Page Dn
System
Alarm
AC
Trouble
Silenced
Power
Trouble
Alarm
System
Ack
Silence
Reset
SIX SYSTEM STATUS INDICATOR
LEDs provide system status indications
in addition to LCD information, LEDs
flash to indicate the condition and then
when acknowledged, remain on until
reset :
Fire Alarm & Priority 2 Alarm, red LED
Supervisory & Trouble, yellow LED
Alarm Silenced, yellow LED
AC Power, green LED (on for normal)
2
NUMERIC KEYPAD for
point category and
point selection
(alphabet characters
are not used at this
time)
C/Exit Key duplicates
the Clr/Exit softkey
when present
A B C
D E F
G H I
ZONE
SIG
AUX
1
2
3
J K L
M N O
P Q R
FB
IO
IDNet
4
5
6
S T U
V W X
Y Z /
P
A
L
Next
7
8
9
'SP' ( )
, # :
NET
ADDR
C/Exit
0
Menu
Enter
LCD NAVIGATION
CONTROL:
Menu, Enter; Previous
item select, Next item
select; Page Up and
Page Down
S4100-0101-8 5/2018
