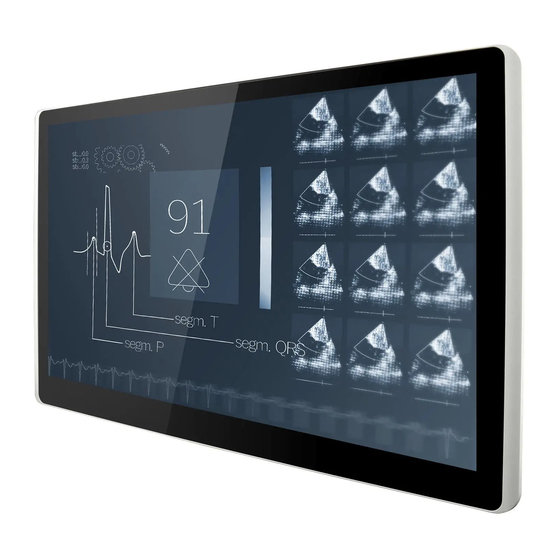

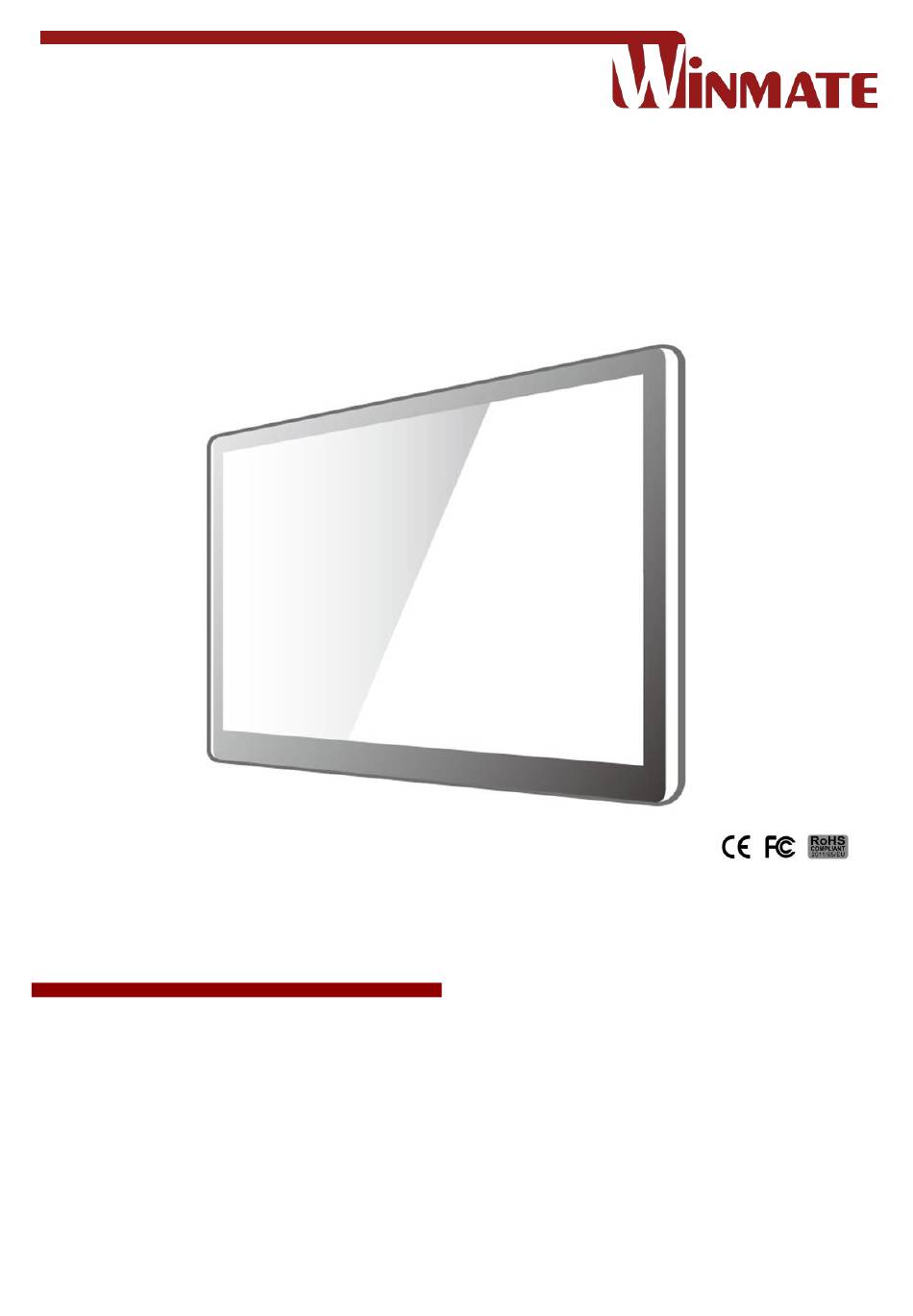

- Page 1 15.6” Medical Display W15L100-PTA3-ME User Manual Document Version 1.0 Document Part Number: 915211101038 Please read these instructions carefully before using this product, and save this manual for future use...
-
Page 2: Table Of Contents
15.6" Medical Display User Manual Contents Chapter 1: Read Me First 1.1 Advisory Conventions 1.2 Warning and Cautions Chapter 2: Introduction 2.1 Unpacking 2.2 Description of Parts 2.3 Physical Buttons Chapter 3: Installation 3.1 VESA Mount 3.2 Connecting Peripherals Chapter 4: Operating the Device 4.1 Turning On and Off 4.2 Frequency Table 4.3 Troubleshooting... -
Page 3: Chapter 1: Read Me First
Chapter 1: Read Me First Chapter 1: Read Me First This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 4: Advisory Conventions
15.6" Medical Display User Manual 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. -
Page 5: Warning And Cautions
Chapter 1: Read Me First 1.2 Warning and Cautions The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Warning! To prevent injuries, firmly fix the unit to the floor or wall following the installation manual. - Page 6 15.6" Medical Display User Manual For the customers in U.S.A. and Canada Please use the following power supply cord. United States and Canada Plug Type HOSPITAL GRADE* Cord Type Min. Type SJT Min. 18 AWG Minimum Rating for Plug and 10A/125V Appliance Couplers Safety Approval...
-
Page 7: Chapter 2: Introduction
Chapter 2: Introduction Chapter 2: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the HMI in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 8: Unpacking
Owner’s Record The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Winmate dealer regarding this product. Model No. ________________________________Serial No.___________________________ Check and identify the supplied accessories: ... -
Page 9: Description Of Parts
Chapter 2: Introduction 2.2 Description of Parts Rear View Connectors Touch - Connects USB for touch capabilities. DC IN – Provides power for the monitor, accepts 12V DC. Example: AC cord or DC power supply. If both are provided, choose only one. -
Page 10: Physical Buttons
15.6" Medical Display User Manual 2.3 Physical Buttons Physical buttons (OSD Control Panel) are located on the rear side of the Display. Physical Buttons Menu – Press to enable the main menu. Input – Press to ENTER/ Change video source. Right –... -
Page 11: Chapter 3: Installation
Chapter 3: Installation Chapter 3: Installation This chapter describes how to mount the display and tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. -
Page 12: Vesa Mount
75x75 mm, 200x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. -
Page 13: Connecting Peripherals
Chapter 3: Installation 3.2 Connecting Peripherals Use VGA or HDMI cable to connect your display to external device. Connect USB cable for touch capabilities. Use cable clamps (optional accessory) to fix the position of cables. Note: Please adjust screen resolution to the native resolution. Recommended resolution 1920 x 1080. -
Page 14: Chapter 4: Operating The Device
15.6" Medical Display User Manual Chapter 4: Operating the Device This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. -
Page 15: Turning On And Off
Chapter 4: Operating the Device 4.1 Turning On and Off Follow the following steps to turn on your device: 1. Connect the AC adapter (12V/36W) to the DC power connector located on the back side of the display. 2. Connect the power cord to AC adapter. 3. -
Page 16: Frequency Table
15.6" Medical Display User Manual 4.2 Frequency Table Signal Name Vertical Frequency(Hz) HDMI ✔ ✔ ✔ ✔ 640 x 480 ✔ ✔ ✔ ✔ ✔ ✔ 480P ✔ ✔ ✔ ✔ ✔ ✔ 800 x 600 ✔ ✔ ✔ ✔ ✔... -
Page 17: Troubleshooting
Chapter 4: Operating the Device 4.3 Troubleshooting Problem Check the following There is a black dot or dead A missing pixel does not constitute an out of spec. pixel dot on the screen defective product Turn off the power supply, and check that the AC cord or Cannot turn power on DC cord are securely inserted. -
Page 18: Chapter 4: Operating The Device
15.6" Medical Display User Manual Chapter 4: Operating the Device This chapter includes important information to consider when operating the device. -
Page 19: Important Information
This product has been manufactured by Winmate Inc. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Winmate. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents. - Page 20 The portable and mobile RF communications equipment such as cellular phones can affect the display. The use of accessories and cables other than those specified, with the exception of replacement parts sold by Winmate Inc., may result in increased emissions or decreased immunity of the device. Warning!
- Page 21 Chapter 4: Operating the Device Guidance and manufacturer’s declaration-electromagnetic emissions The W15L100-PTA3-ME is intended for use in the electromagnetic environment specified below. The customer or the user of the W15L100-PTA3-ME should assure that it is used in such an environment. Emission test Compliance...
- Page 22 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the W15L100-PTA3-ME is used exceeds the applicable RF compliance level above, the W15L100-PTA3-ME should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the W15L100-PTA3- Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
- Page 23 Recommended separation distances between portable and mobile RF communications equipment and the W15L100-PTA3-ME The W15L100-PTA3-ME is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the W15L100-PTA3-ME can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the W15L100-PTA3-ME as recommended below, per the maximum output power of the communications equipment.
- Page 24 15.6" Medical Display User Manual Precautions for connecting this unit with other medical devices Before you utilize this device and/or connect this device to any other medical device, please be aware of and abide by the following precautions: Before actually using this device for medical practice, please check and confirm that you do not experience any discomfort in the use of this monitor ...
- Page 25 Chapter 4: Operating the Device Recommendation to use more than one unit As problems, can occasionally occur, when the monitor is used under critical conditions, we strongly recommend you use more than one unit or prepare a spare unit for replacement. About the LCD Display Panel ...
- Page 26 15.6" Medical Display User Manual A long period of use Due to the characteristics of LCD panel, displaying static images for extended periods, or using the unit repeatedly in a high temperature/high humidity environments may cause image smearing, burn-in, areas of which brightness is permanently changed, lines, or a decrease in overall brightness.
- Page 27 Chapter 4: Operating the Device Flat surface for better maintenance The design allows the user to easily wipe liquids and gel off the LCD panel and control buttons – ensuring a high standard of disinfection and cleanliness. Repacking Do not throw away the carton and packing materials. They can be used again to repack monitor. If you have any questions about this unit, contact your authorized dealer.
- Page 28 Information on Disposal in other Countries outside the European Union. Winmate reserves the right to make changes in specifications and features shown herein, or discontinue the product at any time without notice or obligation.” Information on Disposal for Users of Waste Electrical & Electronic Equipment...
-
Page 29: Appendix
Appendix Appendix This section tells you additional information about the product. -
Page 30: Appendix A: Technical Specifications
15.6" Medical Display User Manual Appendix A: Technical Specifications Model Name W15L100-PTC3-ME 15.6” TFT Size/Type Resolution 1920 x 1080 Brightness Display Contrast Ratio 700:1 (typ.) Viewing Angle ~85~85 (H); ~85~85 (V) Max Colors 16.2M Touch Projected Capacitive Touch 1 x VGA 1 x HDMI Input Ports 1 x Audio... - Page 31 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ _____________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
