WARNINGS:
•
Make sure the gas control valve is OFF and the heater is cool prior to conducting service.
• Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with
this appliance may result in property damage or personal injury.
• If using propane (LP), convert the appliance before installing the logs (see the owners manual for details).
Compatibility
•
430 GSR2

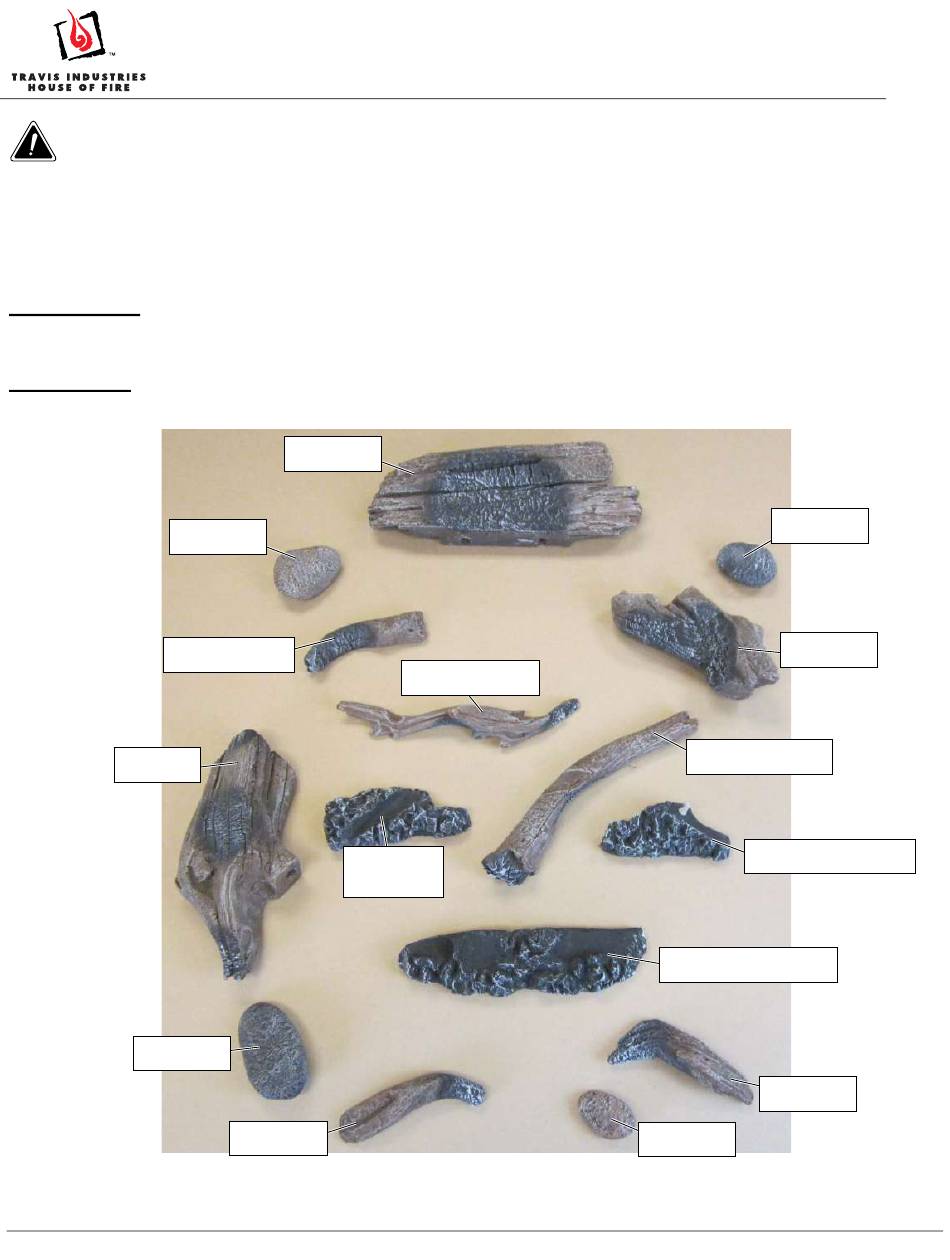

Packing List
15-Piece Log/Stone Set
#14 Stone
Left Rear Twig
Left Log
#9 Stone
Page 1 of 18
430 GSR2 Driftwood Log Set
Installation Instructions
Rear Log
Left Cross Twig
Left Ember
Chunk
Left Twig
17601812.docx — 10/11/13
(SKU 94500946)
#11 Stone
Right Log
Right Cross Twig
Right Ember Chunk
Front Ember Chunk
Right Twig
#4 Stone
© Travis Industries, Inc.
