Travis Industries 430 GSR2 Installation Instructions Manual

Traditional log set
Hide thumbs Also See for 430 GSR2:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Instruction and Installation Manual



WARNINGS:
•
Make sure the gas control valve is OFF and the heater is cool prior to conducting service.
•
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with
this appliance may result in property damage or personal injury.
•
If using propane (LP), convert the appliance before installing the logs (see the owners manual for details).
Compatibility
•
430 GSR2

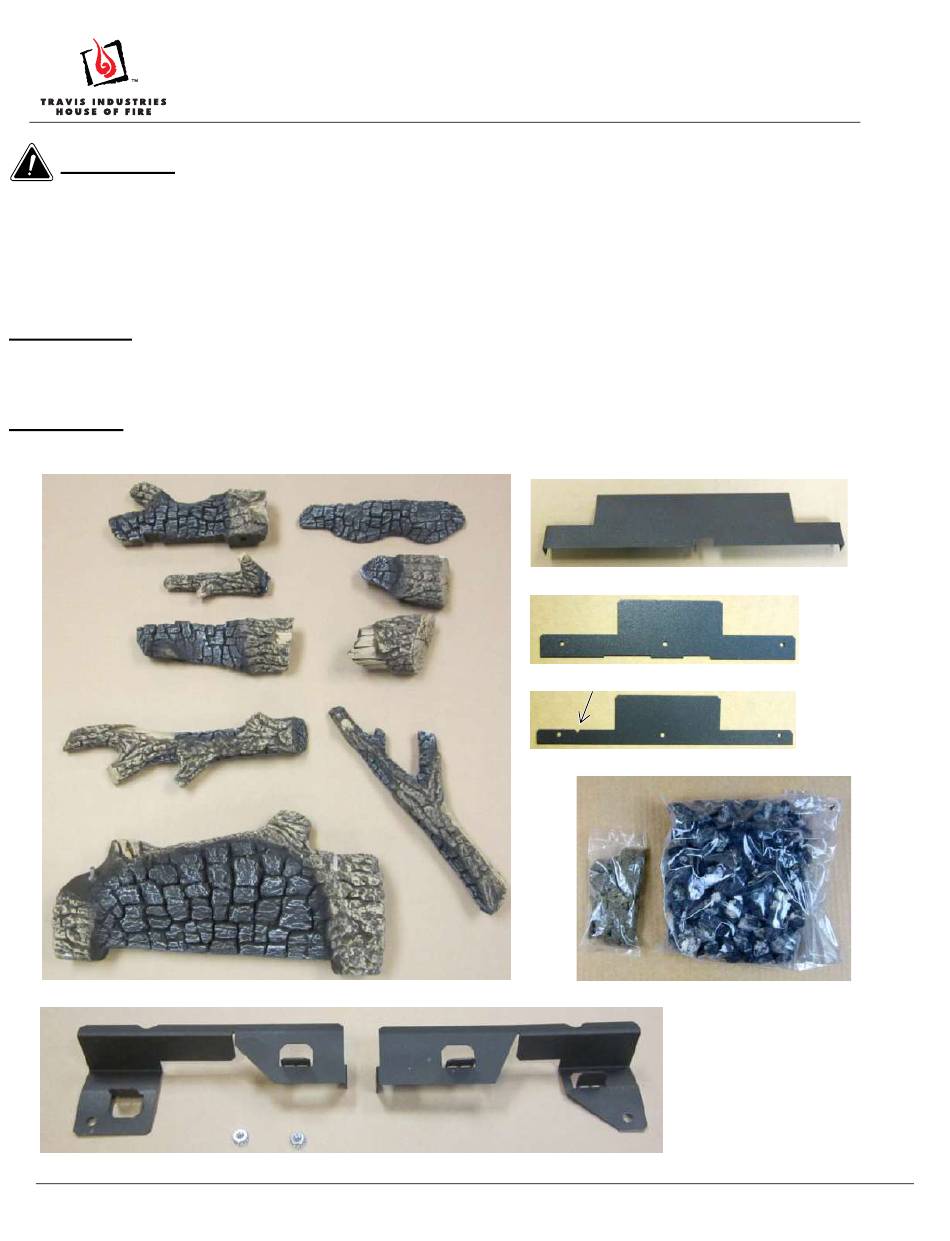

Packing List
9-Piece Log Set
Left and Right Log Supports with (2) 10-24 Nuts
Page 1 of 13
430 GSR2 Traditional Log Set
Installation Instructions
17601790.docx — 7/23/13
(SKU 94500945)
Rear Log Support
Rear Air Deflector (NG)
Rear Air Deflector (LP - NOTE NOTCH)
Rock Wool and Embers

© Travis Industries, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 430 GSR2 and is the answer not in the manual?

Questions and answers

Related Manuals for Travis Industries 430 GSR2

Summary of Contents for Travis Industries 430 GSR2

  • Page 1 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       WARNINGS: • Make sure the gas control valve is OFF and the heater is cool prior to conducting service. • Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
  • Page 2 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       Preparing the Burner NOTE: The insert should be in place, with the gas line and vent attached and the firebacks installed (see owner’s manual for further details). 1. Remove the rear burner.
  • Page 3 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       4. Replace the rear burner and secure with the screw removed earlier. Note how the two tabs on the rear burner fit over the front burner. 5. Install the rear log shelf.
  • Page 4 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       6. The left and right log supports are shown below (the right side support has a 45° notch on the lower right tab). Attach the front log supports with the 2 included nuts.
  • Page 5 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       Rock Wool Placement 7. Place the rock wool as follows: a. Brush the rock wool using a stiff brush in a loose, gauze-like layer. TIP: Hold the rock wool in a tight wad with one hand while brushing with the other.

  • Page 6: Installation Instructions

    430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       Log and Ember Placement The logs are fragile, especially after being exposed to heat. • The burner must be correctly positioned before installing the logs. Make sure the burner is fully seated and screwed into place.
  • Page 7 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       9. Place the left middle log. Note how the index hole fits over the pin on the burner and is pushed back. 10. Place the right middle log. The index hole on the log fits over the pin on the burner and the left side is pushed back.
  • Page 8 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       11. Place the center ember chunk. Note how the two tabs on the front log supports insert into the slots on the chunk. 12. Place the left front log. Note how the tab and nut on the front left log support insert into the holes on the log.
  • Page 9 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       13. Place the right front log. Note how the tab and nut on the front left log support insert into the holes on the log. Page 9 of 13 17601790.docx —...
  • Page 10 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       14. Place the ember chunks as shown below. Note that half the bag of embers is left over. 15. Re-apply the rock wool over the ember chunks along the front burner.
  • Page 11 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       16. Place the left twig. Note how the pin on the back log inserts into the hole on the twig and the front edge rests on the flat spot on the center ember chunk.
  • Page 12 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       18. Place the center twig as shown below. Flat Portion  Notch The notch fits over the  Make sure the twig is all the way  small tab on the right log.  Flat portion of twig rests  forward on the rear burner.  on the rear burner here.  NOTE: Newer units have a bracket on the burner that  helps align the center twig.  When in place, the  twig rests against this bracket.  Log Position (shown without additional logs) Page 12 of 13 17601790.docx —...
  • Page 13 430 GSR2 Traditional Log Set Installation Instructions (SKU 94500945)       19. The completed log set is shown below. 20. Set the exhaust restrictor to the required position as shown in the table below. The insert should be test-burned with the glass frame in place prior to leaving the installation.
