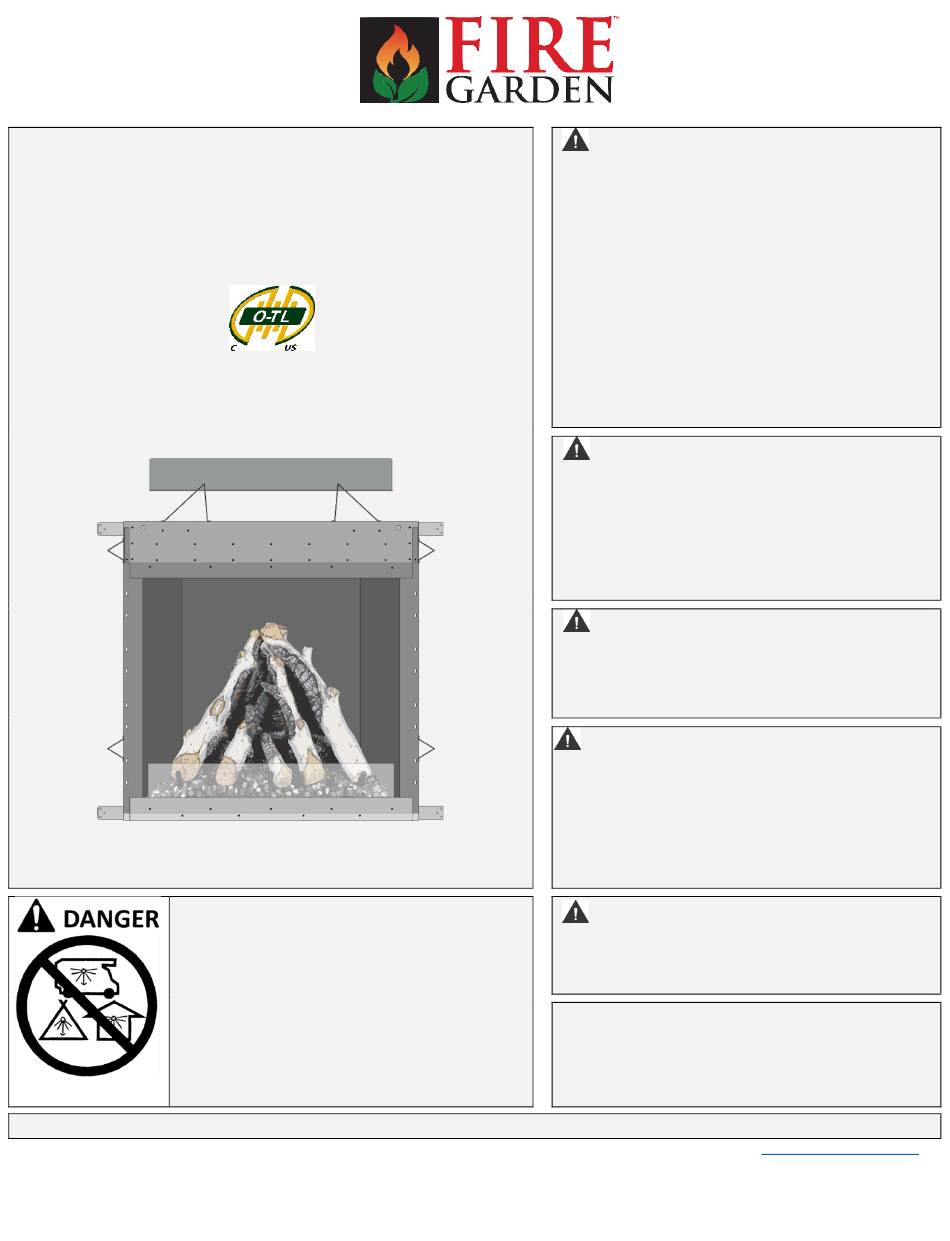

Fire Garden™
Outdoor Traditional
Omni-Test Laboratories, Inc.
Report # 0028GM127S
ANSI Z21.97-2017 /CSA 2.41-2017, CSA 2.17-2017
Outdoor Decorative Gas Appliances

This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill
you.
Never use this appliance in an
enclosed space such as a camper,
tent, car, or home.
French language manuals at firegarden.com.  Manuels de langue Française à firegarden.com
Travis Industries, Inc.
$10.00
By Travis Industries, Inc.
4035
Manual
Listed by
CARBON MONOXIDE HAZARD
12521 Harbour Reach Dr., Mukilteo, WA 98275
 Copyright 2024, T.I.

DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, leave the area
•
immediately.
After leaving the area, call your gas
•
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion, which
could cause property damage, personal
injury, or death.

WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
WARNING: For outdoor use only.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.

WARNING: Improper installation,
adjustment, alteration, service or
maintenance can cause injury or
property damage. Read the installation,

operating, and maintenance
instructions thoroughly before
installing or servicing this equipment.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference

www.travisproducts.com
Part # 100-01572
