- Page 1 QUICK START GUIDE VAV CONTROLLERS & WALL SENSORS www.proloncontrols.com | info@proloncontrols.com 17 510 rue Charles, Suite 100, Mirabel, QC, J7J 1X9 REV 1.0 PL-QCK-WSENSOR/VC2000-EN...
- Page 2 Prolon. All specifications are nominal and may change as design improvements are introduced. Prolon shall not be liable for damages resulting from misapplication or misuse of its products. All trademarks are the property of their...
-
Page 3: Table Of Contents
Table of Contents Analog Sensor ....................4 (PL-RS) Dimensions and Wiring ..................4 Digital Sensor ....................6 (PL-T200) Dimensions and Wiring ..................6 Digital Sensor ....................8 (PL-T500) Dimensions and Wiring ..................8 Digital Sensor ................... 10 (PL-T1000) Installation ......................10 Auxiliary Analog Input ..................12 Operation ...................... -

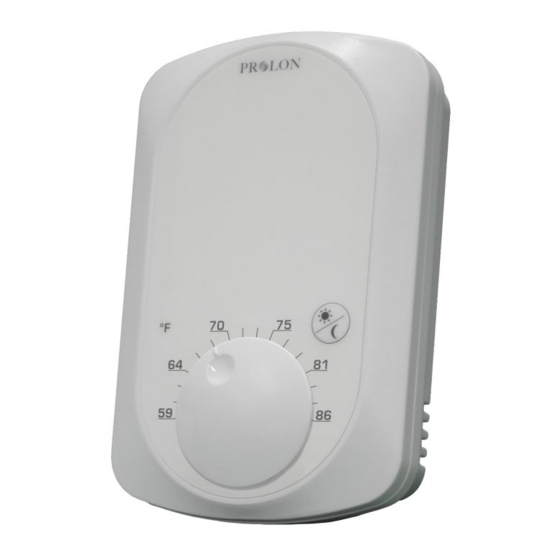

Page 4: Analog Sensor
Analog Sensor (PL-RS) Dimensions and Wiring Schedule override 4.96” (126 mm) 1.30” (33 mm) REV 1.0 / PL-QCK-WSENSOR/VC2000-EN... - Page 5 Room temperature THERM Setpoint (10K) 3.23” (82 mm) Temperature table (thermistor: 10K Type 3) Fahrenheit Celsius Ohms 25395 19903 15714 12493 10000 8056 6530 5324 REV 1.0 / PL-QCK-WSENSOR/VC2000-EN...
-
Page 6: Digital Sensor (Pl-T200)
Digital Sensor (PL-T200) Dimensions and Wiring Schedule override (hold for 3 second) 4.96” (126 mm) 1.30” (33 mm) REV 1.0 / PL-QCK-WSENSOR/VC2000-EN... - Page 7 INT A (+) Communication (RS485) INT B (-) 24VAC Power (2 VA max) RJ45 connection (to C1000) 3.23” (82 mm) REV 1.0 / PL-QCK-WSENSOR/VC2000-EN...
-
Page 8: Digital Sensor (Pl-T500)
Digital Sensor (PL-T500) Dimensions and Wiring Schedule override: Hold 3 seconds Change unit °F/°C: Double-click 4.96” (126 mm) 1.30” (33 mm) REV 1.0 / PL-QCK-WSENSOR/VC2000-EN... - Page 9 INT A (+) Communication (RS485) INT B (-) 24VAC Power (2 VA max) RJ45 connection (to C1000) 3.23” (82 mm) REV 1.0 / PL-QCK-WSENSOR/VC2000-EN...
-
Page 10: Digital Sensor (Pl-T1000)
Digital Sensor (PL-T1000) Installation 1. Open casing to remove back cover by pushing on the tab located underneath the thermostat. (See Figure 1) 2. Pull wire(s) throught central hole of back cover. 3. Screw in the back cover to the wall. 4. - Page 11 Figure 1 INT A INT B 24 VAC Figure 2 RJ45 (Female) Figure 3 REV 1.0 / PL-QCK-WSENSOR/VC2000-EN...
-
Page 12: Auxiliary Analog Input
Digital Sensor (PL-T1000) Auxiliary Analog Input The T1000 has auxiliary analog input which can be used to connect another thermistor. The T1000 can be configured to use this alternate temperature reading for a variety of functions, including temperature averaging or radiant floor slab temperature. The alternate thermistor (10KΩ... -
Page 13: Changing The Setpoint
Changing the Setpoint Home Screen Setpoint Screen Heat SP Scroll or tap (any direction) Cool SP View current zone temperature Tap anywhere Adjust your setpoint (or simply wait) by scrolling clockwise return to or counterckwise Home Screen Schedule Override The First, go to the Setpoint screen. The sun icon is displayed when overridden... -
Page 14: Vav Zone Controller (Pl-C1000-Vav)
VAV Zone Controller (PL-C1000-VAV) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-WSENSOR/VC2000-EN... - Page 15 INT Port: Incoming Modbus RS485 communication from digital sensor -OR- Remote computer with Prolon Focus software NET Port: Incoming Modbus RS485 communication - OR - BACnet MS/TP Digital Input for night setback / Standby mode Multi-function analog input Common for all the inputs...
-
Page 16: Vav Zone Controller
VAV Zone Controller (PL-VC2000) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-WSENSOR/VC2000-EN... - Page 17 Airflow Sensor (PL-VC2000-PI) Airflow sensors are only included in the PL-VC2000-PI models only. Adding an airflow sensor to the Prolon VC2000 lets it regulate the airflow as well as temperature in a zone, independently of the static pressure variations of the system.
-
Page 18: Compliance
Interference-Causing Equipment regulations. Cet appareil numérique de la Classe (B) respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. Technical Specifications PL-RS / PL-T200 PL-C1000-VAV Supply: 24 VAC ±10%, 50/60 Hz Supply: 24 VAC ±10%, 50/60 Hz...
