- Page 1 QUICK START GUIDE C1000 SERIES www.proloncontrols.com | info@proloncontrols.com 17 510 rue Charles, Suite 100, Mirabel, QC, J7J 1X9 REV. 1.0 PL-QCK-C1000-EN...
- Page 2 Prolon. All specifications are nominal and may change as design improvements are introduced. Prolon shall not be liable for damages resulting from misapplication or misuse of its products. All trademarks are the property of their...
-
Page 3: Table Of Contents
Table of Contents Boiler Controller ..................4 (PL-C1000-BLR) FlexIO Controller .................6 (PL-C1000-FLX) Heatpump Controller ..........8 (PL-C1000-HP & PL-C1000-HPS) Humidity Controller ................ 10 (PL-C1000-HU) Rooftop Controller ..........12 (PL-C1000-RTU & PL-C1000-RTUS) Water Loop Controller ..............14 (PL-C1000-WLC) Compliance....................... 16 Technical Specifications ..................16... -

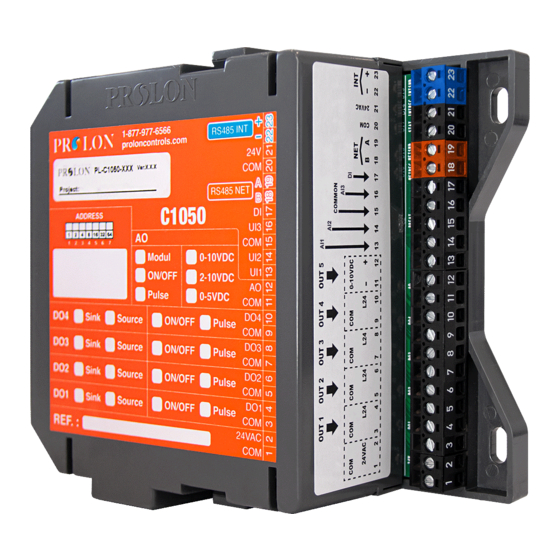

Page 4: Boiler Controller (Pl-C1000-Blr)
Boiler Controller (PL-C1000-BLR) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 5 INT Port: Incoming RS485 network communication (Modbus) NET Port: Incoming RS485 network communication (Modbus) External dry contact for proof of pump Supply water temperature sensor (10K thermistor) Common for all the inputs Return water temperature sensor (10K thermistor) Outside air temperature sensor (10K thermistor) Output 5 - Valve / Modulating boiler (analog 0-10 / 2-10 / 0-5 DVC) Output 4 - Boiler 2 action (digital - ON/OFF) Output 3 - Boiler 1 action (digital - ON/OFF)
-
Page 6: Flexio Controller (Pl-C1000-Flx)
FlexIO Controller (PL-C1000-FLX) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 7 INT Port: Incoming RS485 network communication (Modbus) NET Port: Incoming RS485 network communication (Modbus) Digital input Analog input 3 Common for all the inputs Analog input 2 Analog input 1 Analog output (0-10 / 2-10 / 0-5 VDC) Digital output 4 (ON/OFF, PWM) Digital output 3 (ON/OFF, PWM) Digital output 2 (ON/OFF, PWM) Digital output 1 (ON/OFF, PWM)
-
Page 8: Heatpump Controller (Pl-C1000-Hp & Pl-C1000-Hps)
Heatpump Controller (PL-C1000-HP & PL-C1000-HPS) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 9 PL-C1000-HP PL-C1000-HPS INT Port: Incoming RS485 INT Port: ProLon digital temperature sensor - OR - Incoming RS485 network communication (Modbus) network communication (Modbus) NET Port: Outgoing RS485 NET Port: ProLon digital temperature network communication Sensor - OR - Incoming RS485...
-
Page 10: Humidity Controller (Pl-C1000-Hu)
Humidity Controller (PL-C1000-HU) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 11 INT Port: Incoming RS485 network communication (Modbus) NET Port: Incoming RS485 network communication (Modbus) External dry contact for proof of fan Supply humidity sensor (0-5VDC) Common for all the inputs Room / Return humidity sensor (0-5VDC) Outside temperature sensor (10K thermistor) Output 5 - Humidifier (analog 0-10 / 2-10 VDC) Output 4 - Humidifier (digital - ON/OFF) Output 3 - Dehumidifier (digital - ON/OFF)
-
Page 12: Rooftop Controller (Pl-C1000-Rtu & Pl-C1000-Rtus)
Rooftop Controller (PL-C1000-RTU & PL-C1000-RTUS) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 13 PL-C1000-RTU PL-C1000-RTUS INT Port: Incoming RS485 INT Port: ProLon digital temperature network communication sensor - OR - Incoming RS485 (Modbus) network communication (Modbus) NET Port: Outgoing RS485 NET Port: ProLon digital temperature network communication sensor - OR - Incoming RS485...
-
Page 14: Water Loop Controller
Water Loop Controller (PL-C1000-WLC) 32-122 °F (0-50 °C) Non-condensing REV 1.0 / PL-QCK-C1000-EN... - Page 15 INT Port: Incoming RS485 network communication (Modbus) NET Port: Incoming RS485 network communication (Modbus) Auxiliary digital input Supply water temperature sensor (10K thermistor) Common for all the inputs Return water temperature sensor (10K thermistor) Auxiliary temperature sensor (10K thermistor) Output 5 - Water tower stage 2 (analog 0-10 VDC) Output 4 - Water tower stage 1 (digital - ON/OFF) Output 3 - Pump (digital - ON/OFF) Output 2 - Valve / Damper / Cooling (digital - ON/OFF)
-
Page 16: Compliance
Compliance • cULus Listed; UL 916 Energy Management Equipment, File E364757, Vol.1 • FCC Compliant to CFR47, Part 15, Subpart B, Class B • Industry Canada (IC) Compliant to ICES-003, Issue 5: CAN ICES-3 (B) / NMB-3(B) • RoHS Directive (2002/95/EC) FCC User Information This device complies with Part 15 of the FCC Rules.
