Summary of Contents for Prolon PL-RS
- Page 1 QUICK START GUIDE VAV CONTROLLERS & WALL SENSORS www.proloncontrols.com | info@proloncontrols.com 17 510 rue Charles, Suite 100, Mirabel, QC, J7J 1X9 REV 5.0 / PL-QCK-WSENSOR/VC2000-EN...
-
Page 2: Table Of Contents
© Copyright 2023 Prolon. All rights reserved. No part of this document may be photocopied or reproduced by any means, or translated to another language without prior written consent of Prolon. All specifications are nominal and may change as design improvements are introduced. Prolon shall not be liable for damages resulting from misapplication or misuse of its products. All trademarks are the property of their respective owners. -

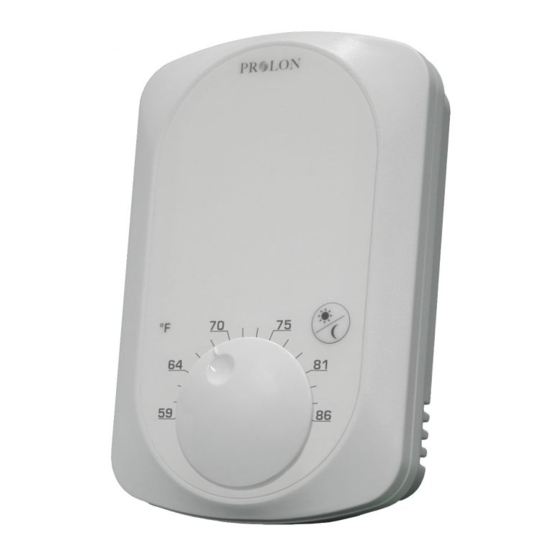

Page 3: Analog Sensor (Pl-Rs)
Analog Sensor (PL-RS) Dimensions and Wiring Schedule override Schedule override Room temperature Room temperature THERM THERM Setpoint (10K) Setpoint (10K) 4.96” 4.96” (126 mm) (126 mm) 3.23” 3.23” (82 mm) (82 mm) 1.30” 1.30” (33 mm) (33 mm) Temperature table (thermistor: 10K Type 3) -
Page 4: Digital Sensor (Pl-T200)
Digital Sensor (PL-T200) Dimensions and Wiring Schedule override Schedule override (hold for 3 second) (hold for 3 second) INT + INT + Communication (RS485) Communication (RS485) INT - INT - 24VAC 24VAC Power (2 VA max) Power (2 VA max) 4.96”... -
Page 5: Digital Sensor (Pl-T500)
Digital Sensor (PL-T500) Dimensions and Wiring Schedule override: Schedule override: Hold 3 seconds Hold 3 seconds Change unit °F/°C: Change unit °F/°C: INT + INT + Communication (RS485) Double-click Double-click Communication (RS485) INT - INT - 24VAC 24VAC Power (2 VA max) Power (2 VA max) 4.96”... -
Page 6: Digital Sensor (Pl-T1000)
Digital Sensor (PL-T1000) Installation 1. Open casing to remove back cover by pushing on the tab located underneath the thermostat. (See Figure 1) 2. Pull wire(s) throught central hole of back cover. 3. Screw in the back cover to the wall. 4. -
Page 7: Auxiliary Analog Input
Digital Sensor (PL-T1000) Auxiliary Analog Input The T1000 has auxiliary analog input which can be used to connect another thermistor. The T1000 can be configured to use this alternate temperature reading for a variety of functions, including temperature averaging or radiant floor slab temperature. The alternate thermistor (10KΩ... -
Page 8: Operation
Digital Sensor (PL-T1000) Operation Changing the Setpoint The T1000 is controlled using the circular touch pad on the bottom half of the thermostat. The touch pad uses capacitive sensing technology Home Screen Setpoint Screen to detect finger proximity. There are no moving parts to push or rotate. Heat SP Scroll or tap The T1000 is controlled using simple scrolling, tapping or holding... -
Page 9: Vav Zone Controller (Pl-C1050-Vav)
VAV Zone Controller (PL-C1050-VAV) INT Port: Incoming Modbus RS485 communication from digital sensor -OR- Remote computer with Prolon Focus software 24VAC Power supply to digital sensor (24 VAC) NET Port: Incoming Modbus RS485 communication - OR - BACnet MS/TP Digital Input for night setback / Standby mode... -
Page 10: Vav Zone Controller (Pl-Vc2000)
Airflow Sensor (PL-VC2000-PI) Airflow sensors are only included in the PL-VC2000-PI models only. Adding an airflow sensor to the Prolon VC2000 lets it regulate the airflow as well as temperature in a zone, independently of the static pressure variations of the system. -
Page 11: Compliance
Compliance Technical Specifications Digital Sensor (PL-T1000) PL-RS / PL-T200 • FCC Compliant to CFR47, Part 15, Subpart B, Class B Supply: 24 VAC ±10%, 50/60 Hz • Industry Canada (IC) Compliant to ICES-003, Issue 5: CAN ICES-3 (B) / Consumption: 2 VA max...
