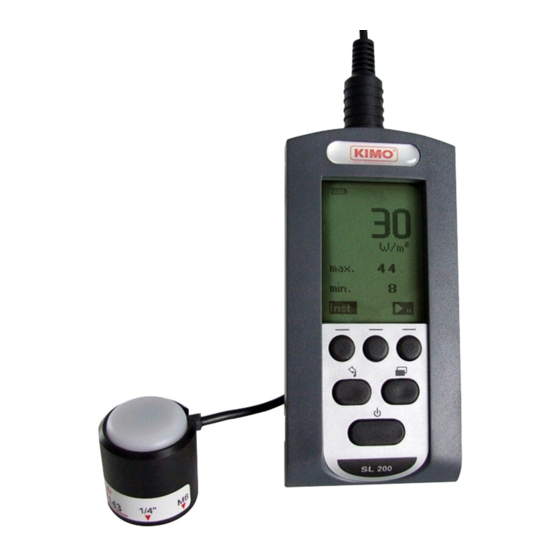

Kimo SL200 User Manual

Solarimeter
Hide thumbs
Hello, I am your AI assistant. How can I help you?
Table of Contents

Advertisement

Quick Links

Download this manual
Solarimeter
SL 200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL200 and is the answer not in the manual?

Questions and answers

Related Manuals for Kimo SL200

Summary of Contents for Kimo SL200

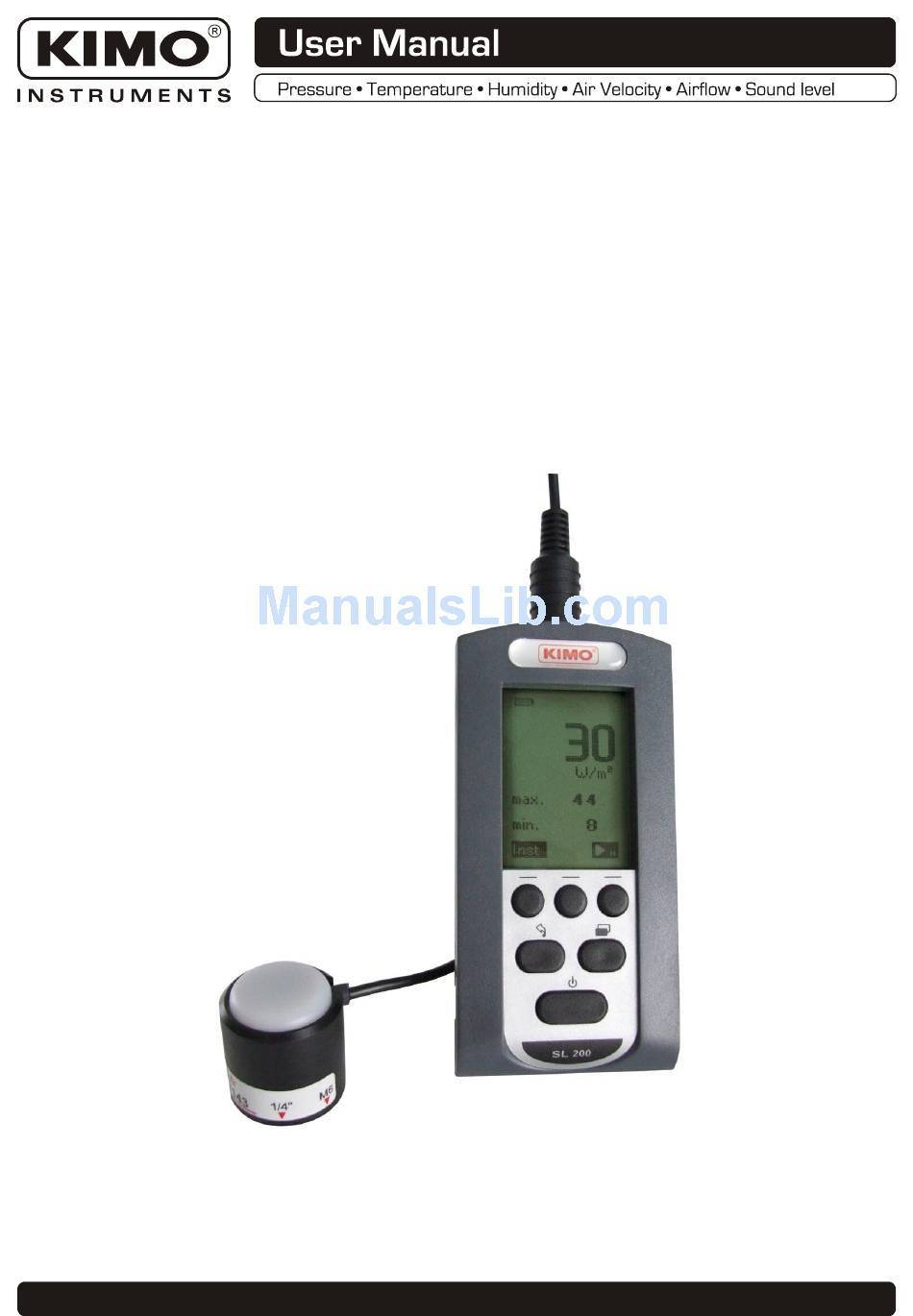

  • Page 1 Solarimeter SL 200...

  • Page 3: Table Of Contents

    VII – Operating information........................10 Over-range........................................10 Sensor default......................................10 Power..........................................10 VIII – Maintenance..........................10 Servicing........................................10 Clock..........................................10 Regular checking.......................................11 Batteries and adaptors replacement...............................11 IX – Main specifications........................11 SL200..........................................11 Solar cell........................................12 Standard reference....................................12 X – Metrology............................12 Traceability........................................12 Sensor replacement....................................12 XI – Delivery and packaging........................13 XII – Accessories............................13...

  • Page 4: I - Introduction

    I – Introduction In addition to environmental applications, and face to development of renewable energy, SL 200 instrument allows to control on test or on site, equipment with thermal or photovoltaic sensors. Thanks to its big capacity of measurement and storage, SL 200 becomes an instrument of control and investigation particularly suited.

  • Page 5: Operating Principle

    III – Operating principle Keyboard presentation When being switched on, “measurement screen” is displayed. From this screen, the operator has access to three others screens by pressing on keyboard; return to measurement screen is obtained by activating Function keys Directly associated to text displayed shown above on display, they allow measurement setting.

  • Page 6: Setting

    IV – Setting Accessible from the principal measuring screen by successive pushes on the key , those different screens allow setting of the instrument. They also inform users. Brightness To optimize display reading, the operator can : 1. Adjust brightness by pressing function keys.

  • Page 7: Radiant Exposure Or Irradiation

    Radiation exposure or global irradiation The instrument measures twice a second the irradiance and displays it, while memorizing minimum and maximum values. From these data , it calculates and displays the measurement duration : average value, Radiation exposure or global irradiation. From start screen, the operator have access to energy measurement over a period controlled by timer and clock, he proceeds as follows: Access to exposure measurement and in sunshine control Irr.

  • Page 8: Stored Data Reading

    Then press USB symbol. Once the connection, computer detects SL200 instrument on the appropriate port. The software allows only the transfer, the instrument is still pending. It only indicates date and time (which can be updated through software DL200).

  • Page 9: Data Evaluation

    Data evaluation Customized treatment of .txt file The operator can organize his control or investigation folder by importing .txt file in an appropriate spreadsheet. For example Evaluation of the .txt file through DL 200 software allows rapid obtaining of tracing time of irradiance and an easy graphic process. For example : These images can be saved or printed for an integration into the corresponding folder.

  • Page 10: Operating Information

    Clock SL200 instrument has a permanent clock powered by an internal battery that is recharged when the device is switched on. In case of non- use of the device, the battery will allow the running of the clock for 6 months.

  • Page 11: Regular Checking

    Regular checking Like most measuring instruments, it is strongly recommended to regularly control and calibrate SL200. Return to the manufacturer each year will provide necessary metrological traceability. Batteries replacement – adaptors Batteries : To replace batteries, open the back hatch and insert the 3 new batteries of type 1.5 V / AAA-LR3 inside.

  • Page 12: Solar Cell

    Solar cell Spectral response ..............from 400 to 1100 nm Nominal calibration coefficient..........100mv for 1000W/m Response in cosine..............corrected until 80° Coefficient in temperature............+0.1%/°C Operating temperature............from -30°C to +60°C Humidity dependence.............100% HR UV performance...............excellent (PMMA filter) Mode..................photovoltaic Surface active................1 cm2 Material..................Polycristallin silicon Front face.................Translucent PMMA Tightness.................Polyurethance resine and housing PMMA and polyacetol...

  • Page 13: Delivery And Packaging

    XI – Delivery and packaging SL 200 housing ● Silicium sensor and 1.25 metre of cable with mini -DIN connector ● Transport case with foam protection ● 3 LR3-AAA batteries ● Instructions for use ● Calibration certificate ● CD with Instruction for use of SL 200 instrument and DL 200 software ●...
