Kimo HD110 User Manual

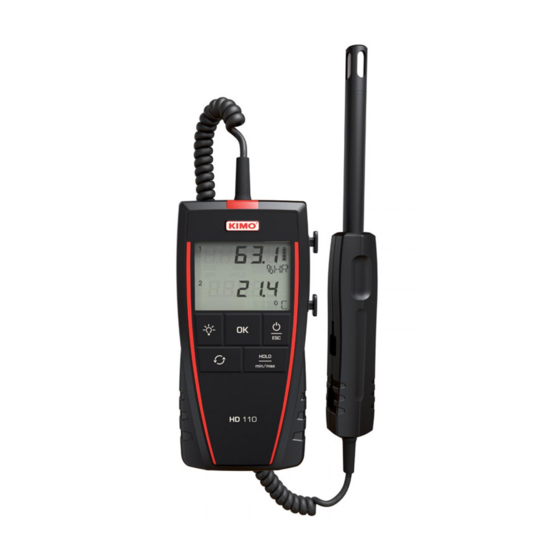

Thermo-hygrometer
Hide thumbs Also See for HD110:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

DESCRIPTION OF THE DEVICE

OK key
Backlight key
Select key
PERFOM A MESUREAMENT
Turn on the device by pressing on "On/Off/Esc".
➢
The device displays its name "HD110" then the measured values.
Put the probe to the required location.
➢
The device displays the temperature and hygrometry measurements.
Press "OK".
➢
The device displays the dew point measurement with the temperature measurement.
Press again on "OK".
➢
The device displays the dew point measurement with the hygrometry measurement.
Thermo-hygrometer
HD110
On/Off/Esc key
Hold/min/max key
Screen 1
OK
38.3
% RH
20.5
°C
5.8
°Ctd
OK
38.3
% RH
Screen 3
Screen 2
20.5
°C
5.8
°Ctd
OK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD110 and is the answer not in the manual?

Questions and answers

Related Manuals for Kimo HD110

Summary of Contents for Kimo HD110

  • Page 1 Screen 1 Screen 2 Turn on the device by pressing on “On/Off/Esc”. ➢ 38.3 20.5 The device displays its name “HD110” then the measured values. % RH °C Put the probe to the required location. ➢ 20.5 The device displays the temperature and hygrometry measurements.
  • Page 2 FIREEZE THE MEASUREMENT During the measurement: Press “Hold/min/max” to freeze the measurement. ➢ “Hold” displays on screen and the measurements are frozen. Press “On/Off/Esc” to exit the hold function. ➢ The device returns to the measurements display. DISPLAY THE MINIMUM AND THE MAXIMUM Once the measurement is frozen: ➢...
  • Page 3 Adjust the auto shut-off The device is on and displays the measurements. Press “Select” until “AUTO OFF” blinks on screen. ➢ Press “OK”. ➢ The time before auto shut-off blinks on screen. Press “Select” to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF. ➢...
  • Page 4 Adjust the auto shut-off The device is on and displays the measurements. Press “Select” until “AUTO OFF” blinks on screen. ➢ Press “OK”. ➢ The time before auto shut-off blinks on screen. Press “Select” to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF. ➢...
  • Page 5 Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to 2002/96/CE guidelines relating to WEEE...
