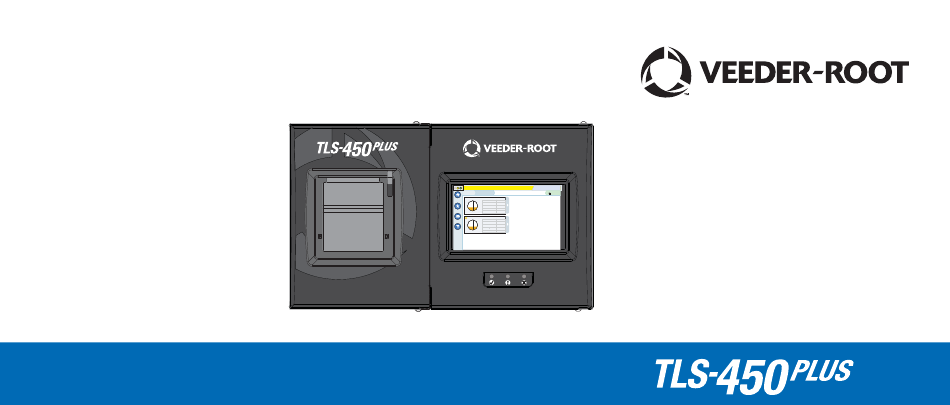

Manual No. 577014-072 • Rev. A
Operator's Quick Help
T 2: DELIVERY NEEDED
1 Warning(s)
12/20/2012 06:01 PM
0 Alarms(s)
Overview
Tank Overview
Print (0)
Home
TANK 1: reg
Fuel Volume
3655
Fuel Height
38.6
Ullage 100%
6345
Temperature
61.9
Favorites
Water Height
3.0
TANK 2: diesel
!
Menu
Fuel Volume
1600
Fuel Height
20.6
Ullage 100%
8345
Temperature
60.8
Actions
Water Height
0.0
Advertisement
Table of Contents
Related Manuals for Veeder-Root TLS-450 PLUS
Summary of Contents for Veeder-Root TLS-450 PLUS
- Page 1 Manual No. 577014-072 • Rev. A Operator's Quick Help T 2: DELIVERY NEEDED 1 Warning(s) 12/20/2012 06:01 PM 0 Alarms(s) Overview Tank Overview Print (0) Home TANK 1: reg Fuel Volume 3655 Fuel Height 38.6 Ullage 100% 6345 Temperature 61.9 Favorites Water Height TANK 2: diesel...
- Page 2 Notice Console Serial and Form Numbers Veeder-Root makes no warranty of any kind with regard to this publica- Write in Form and Serial Numbers from the label on the bottom of the tion, including, but not limited to, the implied warranties of merchantabili- console housing for future reference: ty and fi...
-
Page 3: Table Of Contents
Table of Contents Example TLS-450PLUS Home Screen-2 Tanks Monitored, 1 Warning ............. 1 TLS-450PLUS Front Panel Status Lights ......................1 Example Status Bar Notifi cations ........................2 System Icons ..............................2 Security Login ..............................4 TLS-450PLUS Comm Ports ..........................5 Table 1 - Confi... -
Page 4: Example Tls-450Plus Home Screen-2 Tanks Monitored, 1 Warning
Page 1 Example TLS-450PLUS Home Screen- 12/20/2012 06:01 PM System Date and Time 2 Tanks Monitored, 1 Warning Bread Crumbs - Menu path to current screen - Overview Tank Overview Date & Time touch a previous tab to return to the Menu Selection dialog. T 2: DELIVERY NEEDED 1 Warning(s) 1 Warning(s) -
Page 5: Example Status Bar Notifi Cations
Page 2 Example Status Bar Notifi cations System Icons Home Screen Icon - Touch to navigate to the home screen. Power On to console and no 0 Warning(s) SYSTEM STATUS 0 Alarms(s) warnings or alarms from system. Default is the Tank Overview screen (shown at left). Favorites Screen Icon - Touch to setup/access your favorite Something needs to be PM 8: SETUP DATA WARNING... - Page 6 Page 3 Screen Dependent Icons - The number in the circle under the System Icons (Continued) Actions icon indicates the device you are viewing or setting up. Touching Menu Icon - Touch to access System Setup Menu, Reports, the circled number displays all of the similar devices in a row along the Diagnostics and other screens (Administrator assigned access).
-
Page 7: Security Login
Page 4 Once the screen above displays, log in to the system with your User Security Login Name and Password. NOTE: If you do not log in, you are only permitted Login [If the console Security Feature is Enabled] - Touch the Login to view system status screens and to print out end-user reports button to open the login screen so you can login as a user. -
Page 8: Tls-450Plus Comm Ports
Page 5 TLS-450PLUS Comm Ports - Menu>Setup>Communication Front of console Figure 1 illustrates the console’s plug-in module locations and the maximum number allowed in each of the two bays of the console: Comm Bay and Module Bay. Input/ output cables to the console’s Comm modules attach to connectors on each module’s end plate, and are accessi- ble through an opening in the base of the console. -
Page 9: Table 1 - Confi Gurable (C) / Non-Confi Gurable (Nc) Ports For Comm Modules In Comm Slots 1-3
Page 6 Table 1 - Confi gurable (C) / Non-Confi gurable (NC) Ports For Comm Modules In Comm Slots 1-3 Slot 1 Slot 2 Slot 3 Port Port Port Comm Comm Module Type RS-232 Single Port (also EDIM, Satellite S-SAT and Satellite H-JBox apps.) RS-232 Dual Port (also EDIM, Satellite S-SAT and Satellite H-JBox apps.) RS-485 Single Port Serial... -
Page 10: Port Assignments For Fixed Comm Modules In Comm Slots 4 & 5
Page 7 Port Assignments For Fixed Comm Modules In Comm Slots 4 & 5 Ethernet ports: (1) upper USB ports: (1) upper, (2) lower Front of Console Future expansion port Ethernet port 2: middle and lower switched Comm Slots... -
Page 11: Using On-Board Help
• Understanding ATG -This help section explains the fundamentals of a topic. Touch the ‘X’ in the right corner of the Help screen title bar to automatic tank gauges (ATG) as implemented by Veeder-Root. return to the screen you were viewing. -
Page 12: Alarm Limit Settings
Page 9 Alarm Limit Settings - Menu>Setup>Tank>Limits Confi gure An Ethernet Port - The diagram below shows the relative position of tank alarm (Limit) Menu>Setup>Communication>Ethernet Port settings. System Status 0 Warning(s) 07/20/2013 08:01 AM 0 Alarms(s) Setup Communication Ethernet Port Print (0) Home IP Address Type... -
Page 13: Backup Data
Page 10 Backup Data - Menu>Software Upgrade>DB Backup Software Version - Menu>Overview>About 0 Warning(s) System Status 07/20/2013 09:18 AM 0 Warning(s) System Status 07/20/2013 09:10 AM 0 Alarms(s) 0 Alarms(s) Print (0) Overview About Print (0) Software Upgrade DB Backup Home Console Series # 8601... -
Page 14: Software Download
