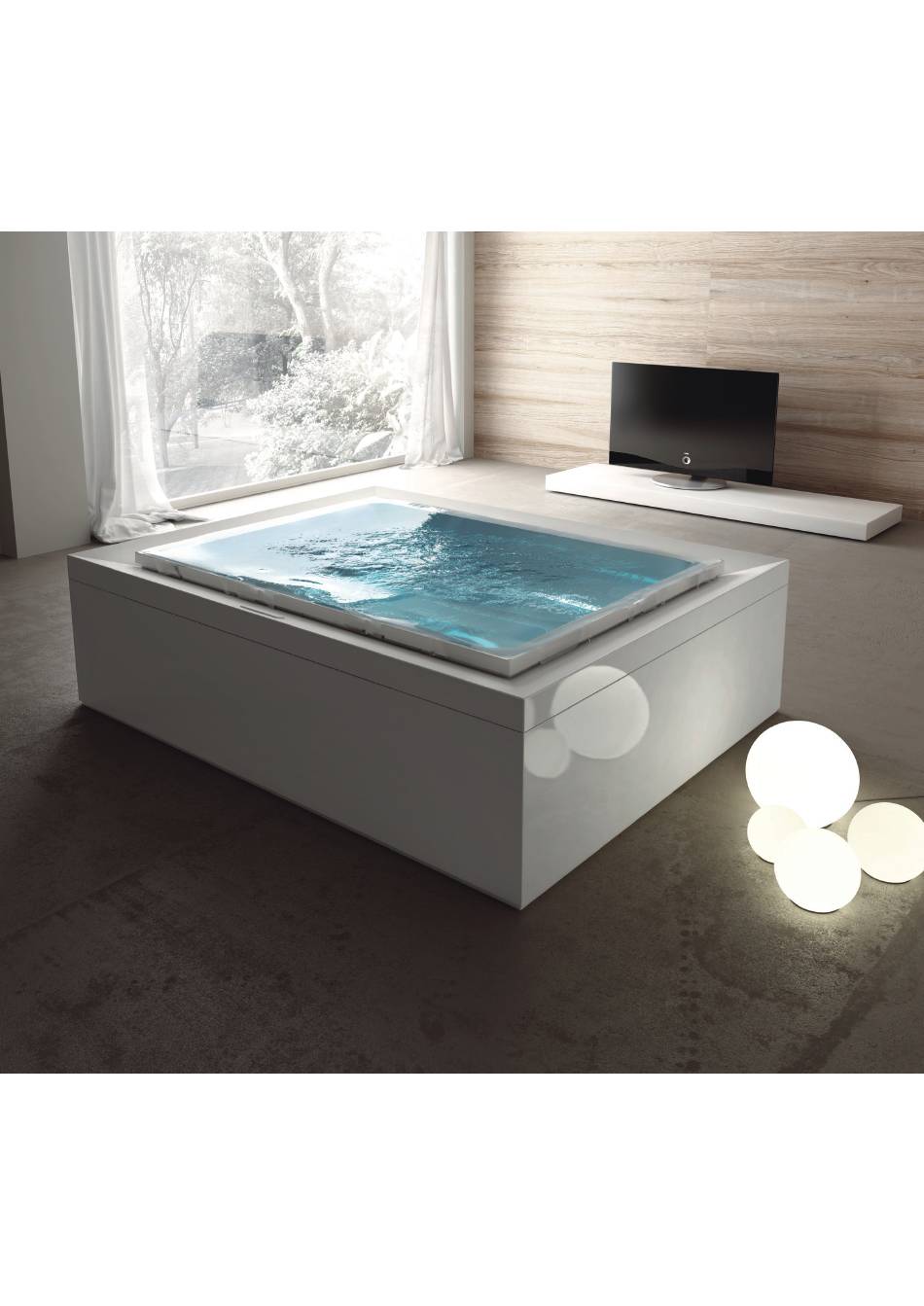

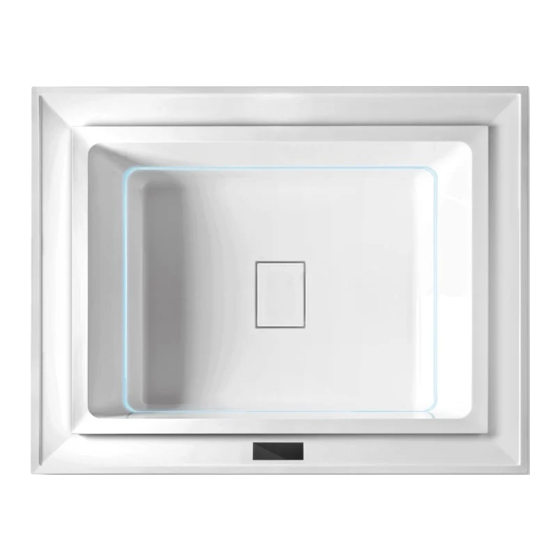

- Page 1 FUSION SPA tub USER AND MAINTENANCE MANUAL treesse 01_2014...
- Page 2 treesse...
- Page 3 Dear Customer, Thank you for having chosen a Treesse product and welcome to our world of total well- being. We remind you that all our products are manufactured from top quality materials and are fully tested in accordance with safety regulations.
- Page 4 CONTENTS INTRODUCTION － USER AND MAINTENANCE MANUAL － SAFETY MEASURES INSTRUCTIONS FOR USE － GENERAL FUNCTIONS － COMPONENTS DESCRIPTION - FILL FUNCTION － SPA FUNCTION － SKIMMER BORDER OPERATION - LED CHROMOTHERAPY FUNCTION - DRAIN FUNCTION － STREAM SHOWER FUNCTION - DISINFECTION FUNCTION －...
- Page 5 INTRODUCTION USER AND MAINTENANCE MANUAL This manual is a guide on how to safely use Treesse products, and it is therefore important to read the manual carefully before using the product. This manual is particularly important and should therefore be carefully preserved, also for future consultation.
- Page 6 INSTRUCTIONS FOR USE GENERAL FUNCTIONS SKIMMER BORDER CONTROL PANEL DRAIN SKIMMER BORDER CONTROL PANEL DRAIN Pg. 6 treesse...
- Page 7 GENERAL FUNCTIONS SKIMMER BORDER CONTROL PANEL DRAIN SKIMMER BORDER CONTROL PANEL DRAIN Pg. 7 treesse...
- Page 8 The tub is filled via the intake grid and is managed via the control panel (see page 13). The FUSION SPA TUB has the patented spa system known as GHOST SYSTEM©. This device means that the spa quality can be...
- Page 9 COMPONENTS DESCRIPTION SKIMMER BORDER The FUSION SPA TUB has a skimmer border feature that offers a total relaxation and well- being experience. The extra border collects the excess water and channels it to the collection tanks fitted underneath the tub.
- Page 10 COMPONENTS DESCRIPTION LED CHROMOTHERAPY (optional) The product's LED chromotherapy feature is located in the outer wall and the transparency of part of the tub allows diffusion of the light. The absence of a light generation device inside the tub itself strongly improves the product's ergonomics and the risk of its breakage.
- Page 11 COMPONENTS DESCRIPTION CONTROL PANEL BUTTON description SPA On/Off button LIGHT/CHROMOTERAPY button Scroll UP button Scroll DOWN button Manual FILL button combinations Manual DRAIN button combinations On/Off STANDBY button combinations Pg. 11 treesse...
- Page 12 COMPONENTS DESCRIPTION CONTROL PANEL LED descriptions FILL on DRAIN on SPA on CHROMOTHERAPY/LIGHT on CLEAN/DISINFECT on HEATING on TEMPERATURE adjustment Pg. 12 treesse...
- Page 13 COMPONENTS DESCRIPTION CONTROL PANEL Start-up On start-up, all LEDs light up for 3 seconds after displaying the software version and build. Functions Filling The fill mechanism is triggered by pressing SPA and scroll DOWN together. The function is confirmed when the FILLING LED is on.
- Page 14 COMPONENTS DESCRIPTION CONTROL PANEL ON mode In ON mode the spa is kept ready for use by the user. If there is not water level warning, the recirculation pump remains on to filter the water. On start-up, the control panel goes to the same status as before the last shutdown.
- Page 15 COMPONENTS DESCRIPTION CONTROL PANEL Temperature The temperature setting is adjusted +/- 5° C by pressing one of the two scroll buttons. During temperature adjustment the related LED is on. After 3 seconds of inactivity, the display returns to standby and the related LED goes off.
- Page 16 DESCRIZIONE DEI COMPONENTI PANNELLO CONTROLLO Automatic cleaning - Begins automatically after every 350 hours of recirculation pump operations. If the filter is blocked a cleaning cycle is triggered automatically. If the problem persists, the system blocks all functions and the message “FL"...
- Page 17 DESCRIZIONE DEI COMPONENTI PANNELLO CONTROLLO Warnings Filter blocked warning - If the filter is blocked, a cleaning cycle is triggered automatically. If the problem persists, the system blocks all functions and the message “FL” is displayed. In this case the tub will have to be shut down, then started up again after waiting 30 seconds, using the product's main switch.
- Page 18 MAINTENANCE GENERAL SURFACE CLEANING Generic products, such as neutral detergents, can be used for normal surface cleaning. It is recommended that the product is applied with a soft cloth, then rinsed thoroughly with water. All products to remove limescale should be avoided. Their alkaline composition can damage product surfaces such as taps or other metal finishes.
- Page 19 GUARANTEE TERMS OF GUARANTEE Under the terms of the guarantee, Treesse will repair or replace faulty parts free of charge. However, for purchasers wishing to make use of the guarantee, note that the right to request cancellation of the contract, to claim compensation for damages or to request full replacement of the product is excluded.
- Page 20 TEAR-OFF «A» MAIL TO THE TRE S S.P.A. GROUP WITHIN 10 DAYS OF THE DATE OF PURCHASE ------------------------------------------------------------------ SURNAME THE PURCHASER DECLARES ACCEPTANCE OF THE TERMS OF THE GUARANTEE AND CONFIRMS THAT THE ------------------------------------------------------------------ PRODUCT IS IN WORKING ORDER...
- Page 21 NOTE Pg. 21 treesse...
- Page 22 NOTE Pg. 22 treesse...
- Page 23 NOTE treesse...
- Page 24 Gruppo Tre S s.p.a 01036 Nepi (Vt) italia S.S. Cassia Km. 36,400 - Zona ind. Settevene Tel. (+39) 0761-527242 - Fax (+39) 0761 527223 e-mail: info@gruppotres.it www.gruppotres.it...
