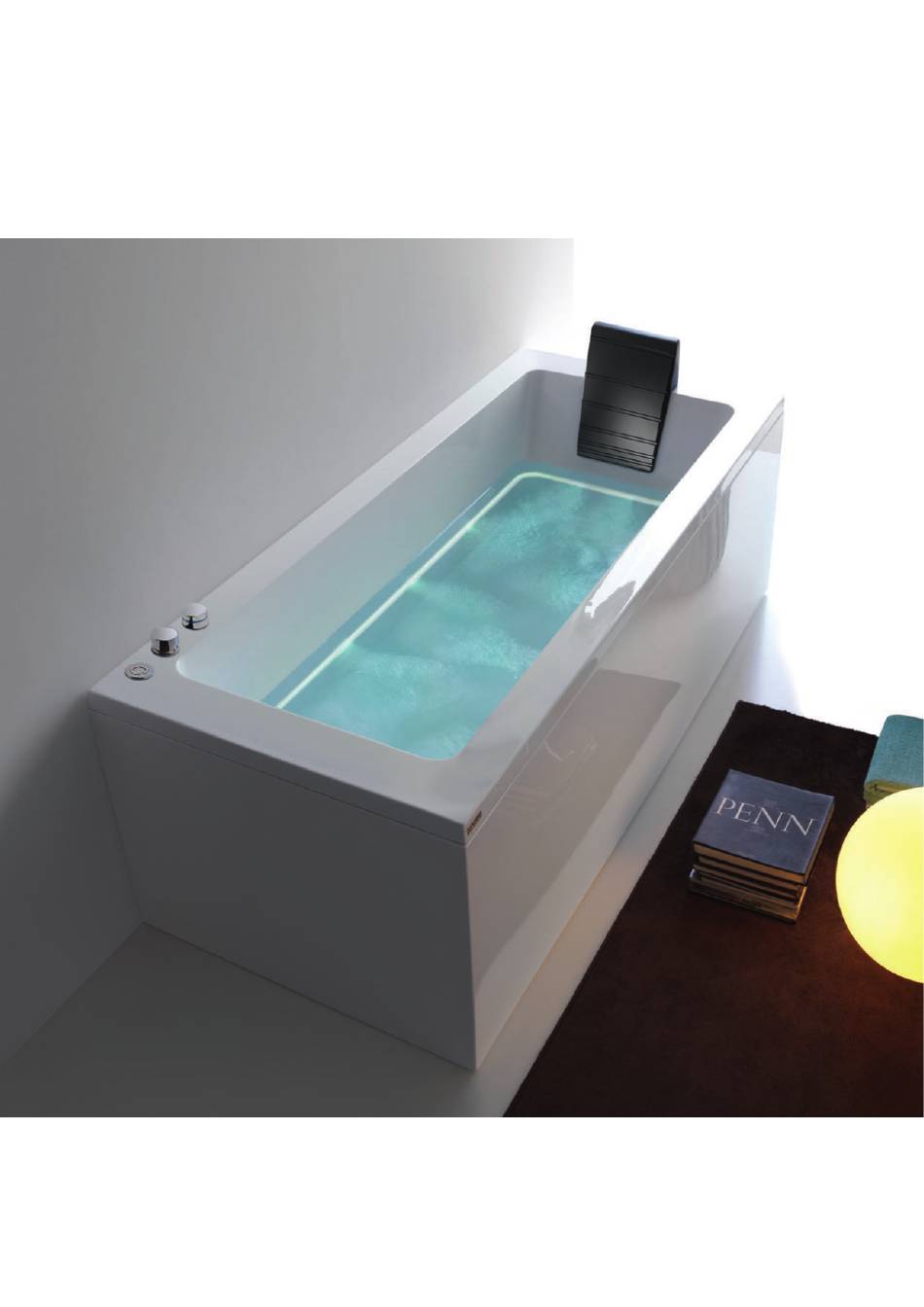

- Page 1 DREAM Bathtubs INSTALLATION, USE AND MAINTENANCE MANUAL 02_2018...
- Page 2 Thank you for choosing a Treesse product. Welcome to our world of total wellbeing. We would like to remind you our products are built using excellent quality materials that are accurately tested according to safety standards in force. This guarantee of quality and comfort is accompanied by strong innovation and sought-after design.
-
Page 3: Installation
_TABLE INTRODUCTION USE AND MAINTENANCE MANUAL SAFETY PROVISIONS DREAM BATHTUBS COLLECTION SYSTEM & TAPS INSTALLATION PREINSTALLATION PRELIMINARY OPERATIONS HYDRAULIC CONNECTIONS WIRING INSTALLATION OF SIDE PANELS GENERAL INFORMATION FOR USE MAIN FUNCTIONS DRAINAGE DISINFECTION MAINTENANCE SURFACE CLEANING WARRANTY WARRANTY CONDITIONS WARRANTY CERTIFICATE... - Page 4 USE AND MAINTENANCE MANUAL This manual is a guide for safe use of Treesse products,therefore you need to pay utmost attention when This manual is a guide for safe use of Treesse products,therefore you need to pay utmost attention when...
- Page 5 _DREAM BATHTUBS COLLECTION Dream 170 Dream 200 Dream 180 Dream 190 Dream 181 Dream 160 Dream 199...
- Page 6 _AVAILABLE SYSTEMS & TAPS SYSTEMS Mobile Controller for “ATC” - Total Control all functions of bathtub (except the tap) Control panel on the “AWC” - Digital Whirlpool Control edge of the bathtub (it is curved for rounded models) TAPS With exception of “ALI”...
-
Page 7: Pre-Installation
_PREINSTALLATION Prepare the installation site; Prepare hydraulic systems; local dedicated to electrical Arrange electrical installations; connections The following pages will give you detailed explanations on how to make connections. Drain Indicative examples of installation about a Dream 200 Floor installation local dedicated to electrical connections... -
Page 8: Preliminary Operations
_PRELIMINARY OPERATIONS Use the wrench provided and Remove the packaging: loosen the support feet of the the bathtub is fixed to a wooden base. panels. Remove the panel by following the direction indicated by the arrows To release the bathtub from the base of the packaging, remove the screws from the support >>... -
Page 9: Hydraulic Connections
_HYDRAULIC CONNECTIONS INDICATIVE EXAMPLE OF HYDRAULIC PREINSTALLATION OF A BATHTUB * The pictures are indicative only: the model and the type must be chosen by the plumber based on water characteristics and DHW system features. Connection to the bathtub using the female 1/2 inch hoses supplied. - Page 10 _WIRING The Treesse hot tubs are built in compliance with European (EN 60 335-2-60) laws and are tested during manufacturing to ensure safety of both the installer and the user. The connection must be made by a qualified electrician. All electrical connections must be performed after having disconnected the power supply of the building.
-
Page 11: Electrical Connections
_ELECTRICAL CONNECTIONS AREAS OF RESPECT Regulations prohibit any electrical installation (plug, switch, lamp, etc.) in the area around the bathtub for a distance of at least 60 cm and a height of 230 cm. -
Page 12: Installation Of Panels
_INSTALLATION OF PANELS After making all the connections, if the tub is not equipped with panels, provide for the installation of the panels in the correct position. 1_ place the panels perfectly, right under the edge of the pool; 2_ fix at the proper height using the shims supplied; 3_ tighten the feet that support the panels so as to ensure an effective ground support. -
Page 13: Description Of The Main Functions
_DESCRIPTION OF THE MAIN FUNCTIONS BATH FILLING ERO - Hidden filling with whirlpool The bathtub is filled with water through the hydromassage system inlets and is controlled by taps. The flexible pipe supplied under the bathtub allows the connection to the taps ERO - Hidden filling without whirlpool The bathtub is filled from the bottom,... - Page 14 _DESCRIPTION OF THE MAIN FUNCTIONS HYDROMASSAGE DREAM hot tubs are equipped with the patented hydromassage GHOST GHOST SYSTEM © This device allows you to enjoy the hydromassage feature, without having the hydromassage system installed in the tub (hidden nozzles). This makes the product more comfortable to use and also more beautiful.
- Page 15 _DRAINAGE “CLICK CLACK” drain system To close the drain press the plug (Fig. 1) To open again, bring the plug to the original position (Fig. 2) Fig.1 Fig.2...
- Page 16 _DISINFECTION INSTRUCTION FOR USE The disinfection function is an automatic cleaning procedure of the bathtub water circuit, tanks included. It should be started after each use of the bathtub or after prolonged periods of inactivity. DISINFECTANT On the edge of bathtub, there is a tank cap for disinfection. The cap is opened by click-clack action, allowing liquid top-up for disinfection.
-
Page 17: Maintenance
_MAINTENANCE _GENERAL SURFACE CLEANING Generic products, such as neutral liquid detergents can be used for normal surface cleaning. You are advised to apply the product with a soft cloth, rinsing carefully with water. Do not use all specific detergents for limescale removal. Due to their alkaline composition they can damage the surfaces of the products such as taps and other metal finishes. -
Page 18: Conditions Of Warranty
_WARRANTY CONDITIONS OF WARRANTY As part of the warranty, in Italy, Treesse will repair or replace faulty parts free of charge. However, the purchaser availing of the warranty will not have the right to ask for dissolution of the contract, compensation for damage and complete replacement of the product. - Page 19 NOTES...
- Page 20 Gruppo Tre S s.p.a 01036 Nepi (Vt) Italy S.S. Cassia Km. 36,400 - Zona ind. Settevene Tel. (+39) 0761-527242 - Fax (+39) 0761 527223 e-mail: info@gruppotres.it www.gruppotres.it...
