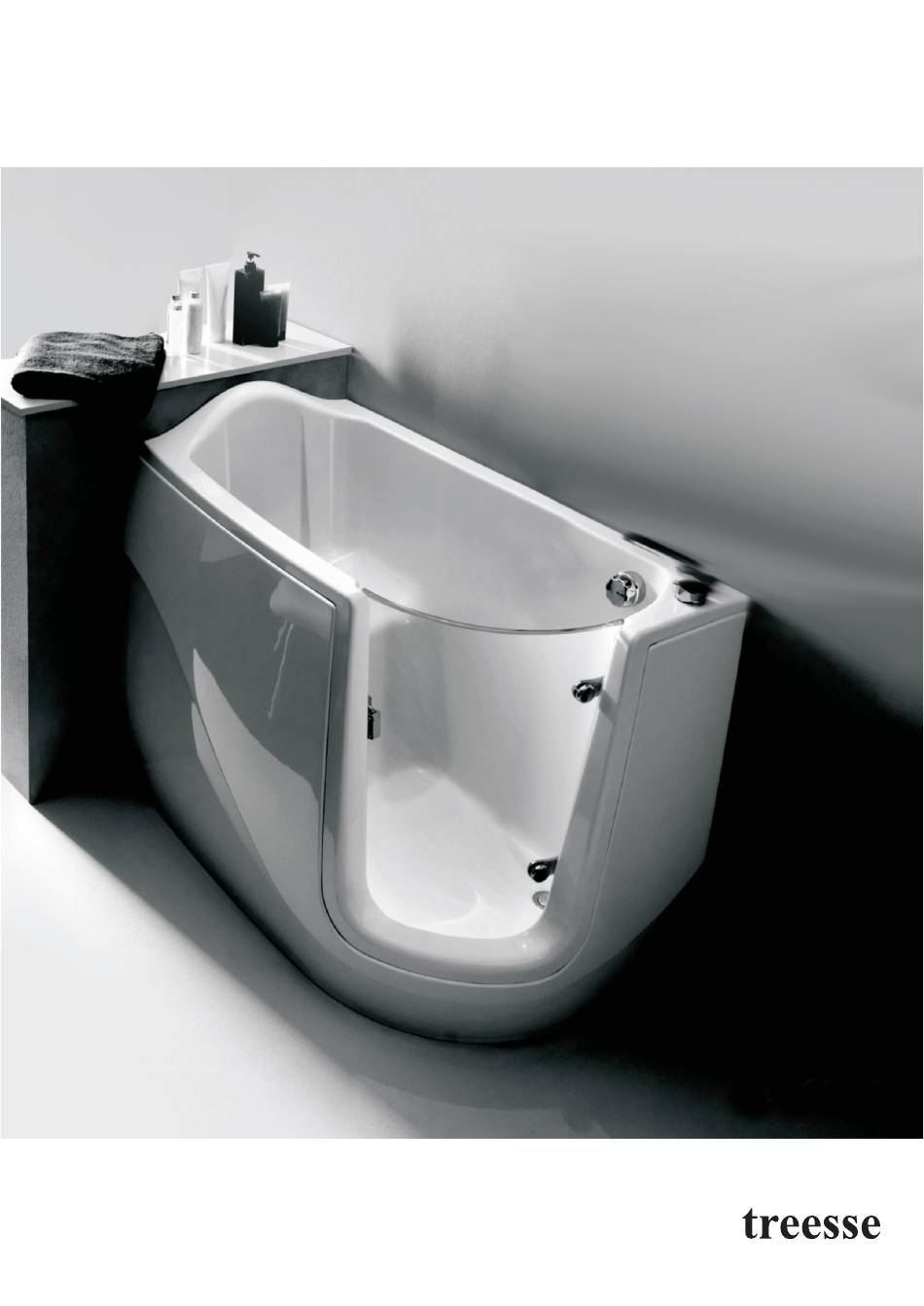

- Page 1 GEN-X INSTALLATION MANUAL 01_2018...
- Page 2 Page 2...
- Page 3 Dear Customer, Thank you for choosing a TREESSE product. Welcome to our world of total well-being. We would like to remind you that all our products are built with top quality materials and are carefully tested according to safety standards.
-
Page 4: Table Of Contents
_TABLE OF CONTENTS INTRODUCTION - INSTALLATION MANUAL - SAFETY PROVISIONS INSTALLATION DOCUMENTATION WARRANTY CONDITIONS WARRANTY CERTIFICATE DISPOSAL AT END OF LIFE Page 4... -
Page 5: Introduction
INSTALLATION MANUAL Ÿ This manual is a guide for the safe installation of TREESSE products. Therefore, you must read it very carefully before proceeding with product installation. This manual is of fundamental importance, therefore it must be carefully kept, for any future consultation. -
Page 6: Installation
_INSTALLATION _Buffer zones Standards forbid any electrical installation (plug socket, switches, lights, etc.) in the zone surrounding the product for a distance of at least 60 cm and a height of 230 cm. Page 6... - Page 7 _INSTALLATION Pull the tub out of the packaging, taking care to hold it under the edge of the tub. Put it near the place where it will be installed. Remove the panels, unscrewing the holding screws at the base and removing them downwards.
- Page 8 _INSTALLATION If not already prepared, assemble the drain column with supply according to instructions in the box of the part. Connect the supply line to the tap deviator The tub rests on no. 6 adjustable feet. To ensure smooth operation of the tub you must carefully level it.
- Page 9 _INSTALLATION Position the tub in the installation corner and place it perfectly level using the feet 1,3,4 and ATTENTION To adjust the tub, act only on the feet and not on the threaded rods. All four feet mentioned above MUST rest on the ground perfectly with the tub in installation position.
- Page 10 _INSTALLATION Each tub is individually tested in the company to guarantee its perfect operation. During this phase of the installation, you must test the product to ensure that all adjustments made in the company have been maintained. Due to improper transport and installation, slight leak problems may arise occasionally.
- Page 11 _INSTALLATION Insert the panel again under the tub, starting from the front side, then under the door and lastly under the short side. To lock the panel, insert it under the edge of the tub, between the edge and the thrust springs. Use the supplied wedges.
-
Page 12: Documentation
_DOCUMENTATION _WARRANTY CONDITIONS Under warranty, the manufacturer will repair or replace free of charge only the parts that have manufacturing defects; therefore, the buyer cannot make use of the warranty to cancel the contract, to ask for compensation for damages and the complete replacement of the product. After the warranty expires, any support and repairs will be charged;... -
Page 13: Disposal At End Of Life
_DOCUMENTATION _DISPOSAL AT END OF LIFE Pursuant to Art.13 of Legislative Decree no.49 on 2014 "Implementation of the WEEE Directive 2012/19/EU on electrical and electronic equipment waste" The crossed-out wheeled bin label specifies that the product was placed on the market after 13 August 2005 and that at the end of its service life should not be disposed of with other waste but must be disposed of separately. - Page 14 _NOTES ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Page 14...
- Page 15 _NOTES ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Page 15...
- Page 16 Gruppo Tre S s.p.a 01036 Nepi (Vt) Italy S.S. Cassia Km. 36,400 - Industrial zone Settevene Tel. (+39) 0761-527242 - Fax (+39) 0761 527223 e-mail: info@gruppotres.it www.gruppotres.it...
