Quick Start Guide
- If the AD9747 evaluation board has been recognized by the PC, "AD9747 RevB" should be populated in the Evaluation Board
field in the Hardware Config panel.
- Generate a sinewave by pulling down the "Add Generated Waveform" menu and choosing "Single Tone". Fill in the form as
shown in Figure 3 (Sample Rate = 100MHz, Desired Frequency = 17.0MHz, etc.). Select the I and Q data vectors in the data
selection panel.

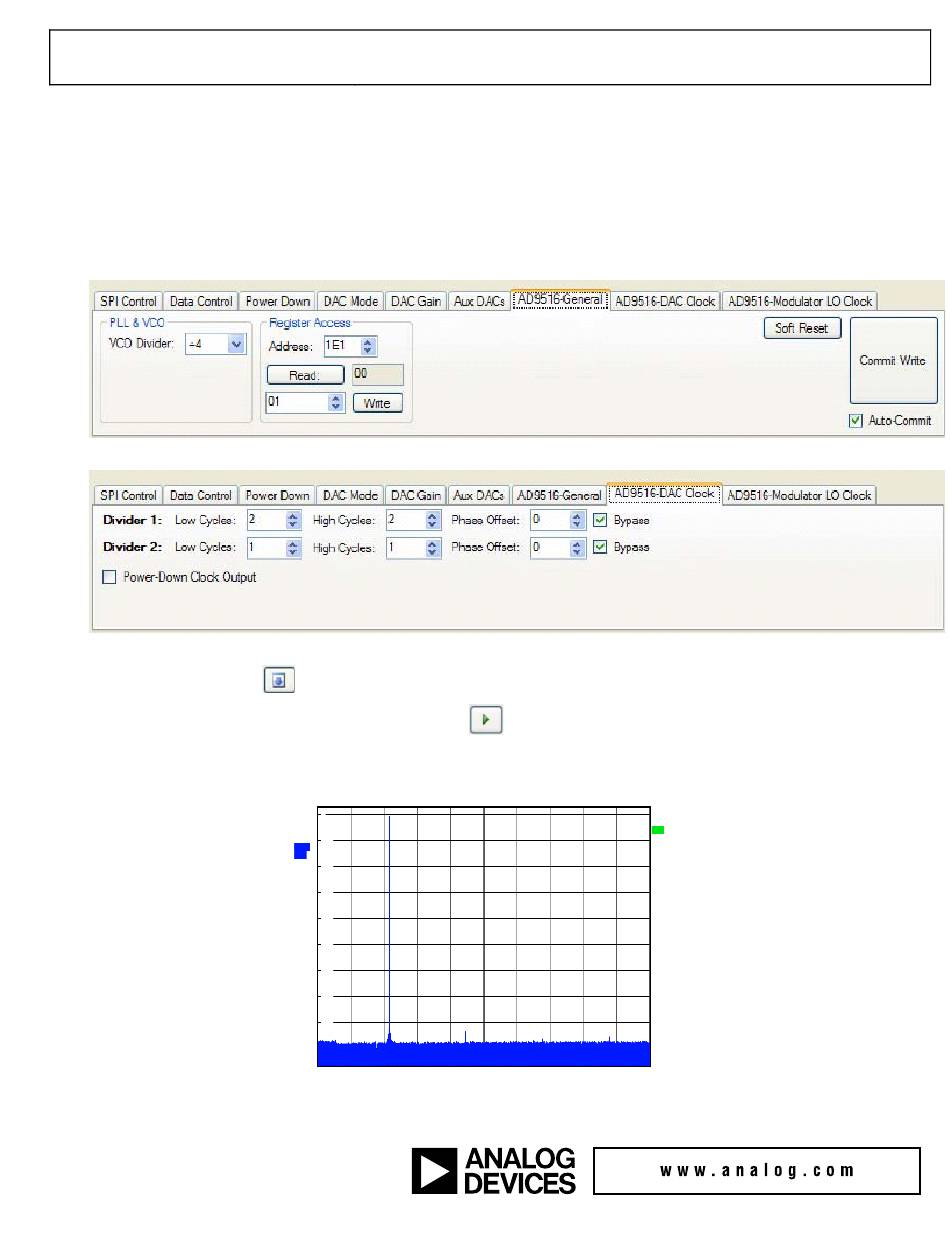

- Configure the eval board by writing the value 01 to register 1E1. This configures the AD9516 to use the CLK input to drive the
clock path.
- Bypass the clock dividers on the AD9516.
- The DCO frequency field in the DPGDownloader window should now be reading something close to 100MHz.
- Next hit the download
- When the vector has finished downloading, hit the play
- The output from J5 and J9 should be a clean 29MHz tone as shown below:
©2009 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
button. This transfers the data from the PC to the DPG memory.
Ref 3 dBm * Att 20 dB
0
-10
1 AP *
AVG
-20
-30
-40
-50
SWP 10 of 10
-60
-70
-80
-90
Start 1 MHz 7.4 MHz/
Date: 19.OCT.2009 17:45:59
D00000-0-1/07
button. This starts the DPG2 transmitting data to the eval board.
* RBW 5 kHz
VBW 20 kHz
SWT 3 s
A
3DB
Stop 75 MHz
AD9741/3/5/6/7-EBZ
