B.E.G. LUXOMAT PD4-M-GH-SM Installation And Operating Instruction

LUXOMAT
B.E.G.

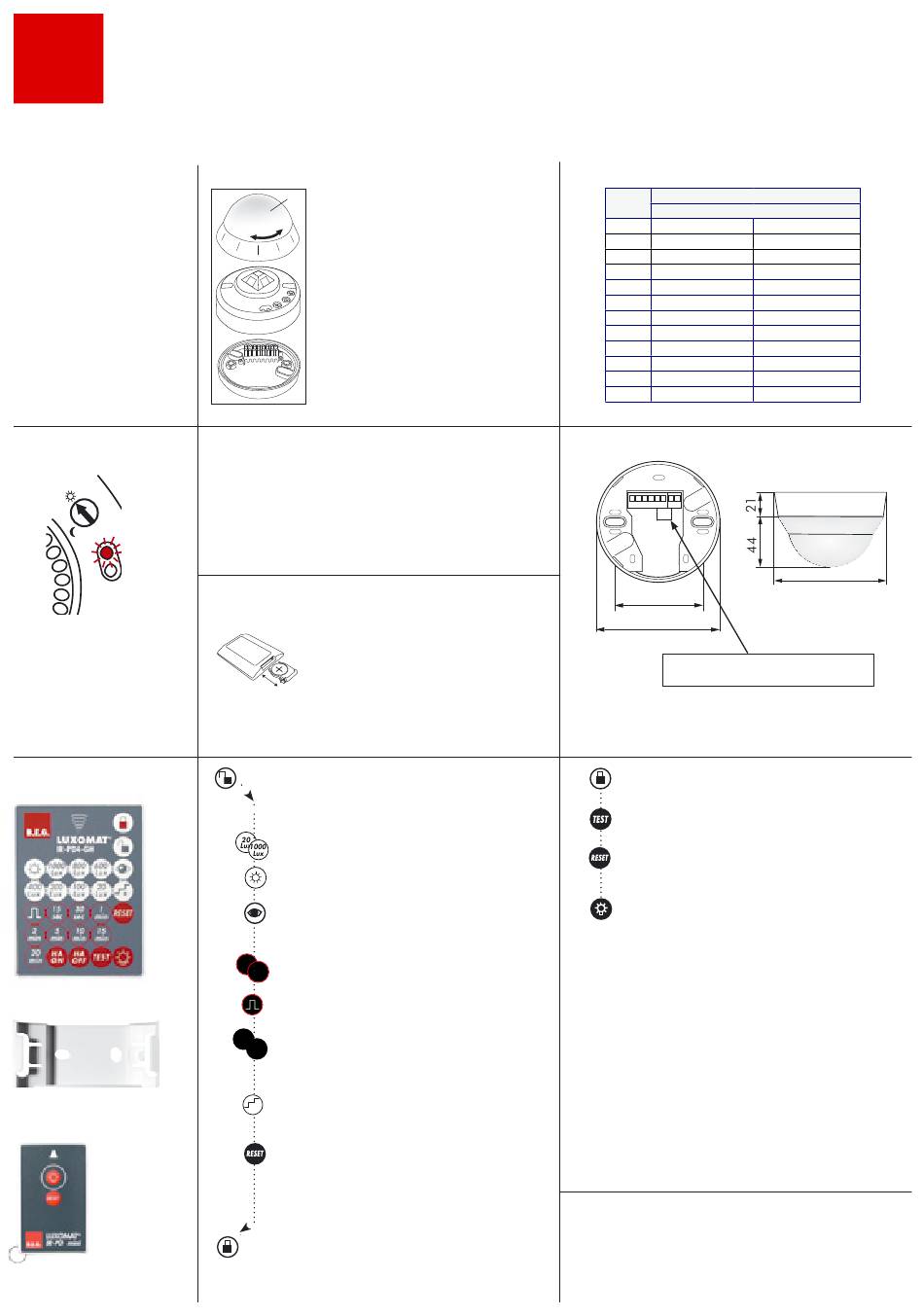

Installation and Operating Instruction for B.E.G. - Occupancy detectors PD4-M-GH-SM
 1 .Mountingpreparations

Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled
electrical personnel in accordance
with electrotechnical regulations.
Disconnect supply before installing!
When in Master/Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.
2c.Selftestcycle
2000
1200
600
200
40
The product enters an initial 60-second
self-test cycle, when the supply is first
connected. The occupancy detector is
ready for operation.
Option:
IR-PD4-GH
Wall bracket for remote control
IR-PD4-GH
IR-PD-Mini
®
2a.  I nstallationoftheLUXOMAT
The detector must be installed on a solid and
C
level surface. The circular cover ring must be removed
close prior to assembly. To do this, twist the lens (C) anti-
open
clockwise through approximately 5° and lift off.
Having connected up the wires in accordance with
regulations, secure the detector with 2 screws.
After installation replace the lens and lock (turn clock-
wise). Mains to be connected.
ATTENTION: Install the unit in such a manner that
both markings on the housing are positioned in the
longitudinal axis of the area to be monitored (e.g.
high-bay corridors)
 3 .Puttingintooperation/Settings
Factory settings
The PD4-M-GH is presetted with time setting 5 min. and twilight switch
1000 Lux.
Attention:
No settings on the unit are possible with potentiometers. Modifications are
only available by remote control IR-PD4-GH.
4.Settingscarriedoutusingremotecontrol(optional)
Remote control LUXOMAT IR-PD4-GH
®
1. Check Battery:
open battery compartment by pressing the plastic
springs together and removing the battery-holder.
Caution:
Settings with remote control supersede the settings
by courtesy of potentiometers.
Unlocking device
Luminance set point
Sun button - preselected light
daylight operation
Automatic reading in the current light value
as new luminance set point
Individual light value 10 - 2000 Lux
Follow-up time (relay and Channel 1)
15
sec 30
15 sec. upto 30 min.
min
Impulse function (relay and Channel 1)
1 sec. ON, 9 sec. OFF
HA Change between operation modes fully automatic/
ON HA
semi automatic mode => (see page 2, point 6)
OFF
Semi automatic: green LED,
Fully automatic: red LED on for ca. 3 sec.
Determination of the switch on threshold
+
to attain a calculatory target value
Resetting when open
All values which have been programmed using the
remote control IR-PD4-GH are deleted, and those values
which have been set by potentiometer are activated.
Lock device
PD4-M-GH-SM
® PD4-M-GH-SM
2b.Rangeindependencefromthemountingheight
Range (circular detection) T=17°C
Mounting
height
walking across
2.00 m r=7.50 m
2.50 m r=9.00 m
3.00 m r=11.00 m
3.50 m r=13.00 m
4.00 m r=15.00 m
4.50 m r=17.00 m
5.00 m r=18.50 m
6.00 m r=18.50 m
7.00 m r=18.50 m
8.00 m r=22.00 m
9.00 m r=22.00 m
10.00 m r=22.00 m
r=radius / Ø=diameter
5. PD4-M-GH-SM - Dimensions
L L N N L' L'
70
98
with jumper =
without jumper =
Lock device
Test mode
Reset to deactivate
Resetting when closed
The lighting relay is switched off, i.e.
opened and the follow-up times reset.
Light on/ off
The light will remain switched on/off for as long as move-
ments are detected in the areas of coverage. Once the last
movement has been detected, the light will remain on for
the duration of the follow-up time as per setting.
The appliance will then return independently to the mode
selected (Fully or Semi-automatic).
B.E.G.(UK)Ltd.
The Lightbox B.E.G.BrückElectronicGmbH
111, Power Road, Chiswick Schlosserstr. 30
W4 5PY 51789 Lindlar
Tel: 0870.850 5412 Tel:
Fax: 0870.850 5413 Fax:
E-Mail: info@beguk.co.uk E-Mail:
Internet: www.beg-luxomat.com Internet:
Ø=15.00 m
Ø=18.00 m
Ø=22.00 m
Ø=26.00 m
Ø=30.00 m
Ø=34.00 m
Ø=37.00 m
Ø=37.00 m
Ø=37.00 m
Ø=44.00 m
Ø=44.00 m
Ø=44.00 m
98
switched live (L')
potentialfree
02266.90 12 10
