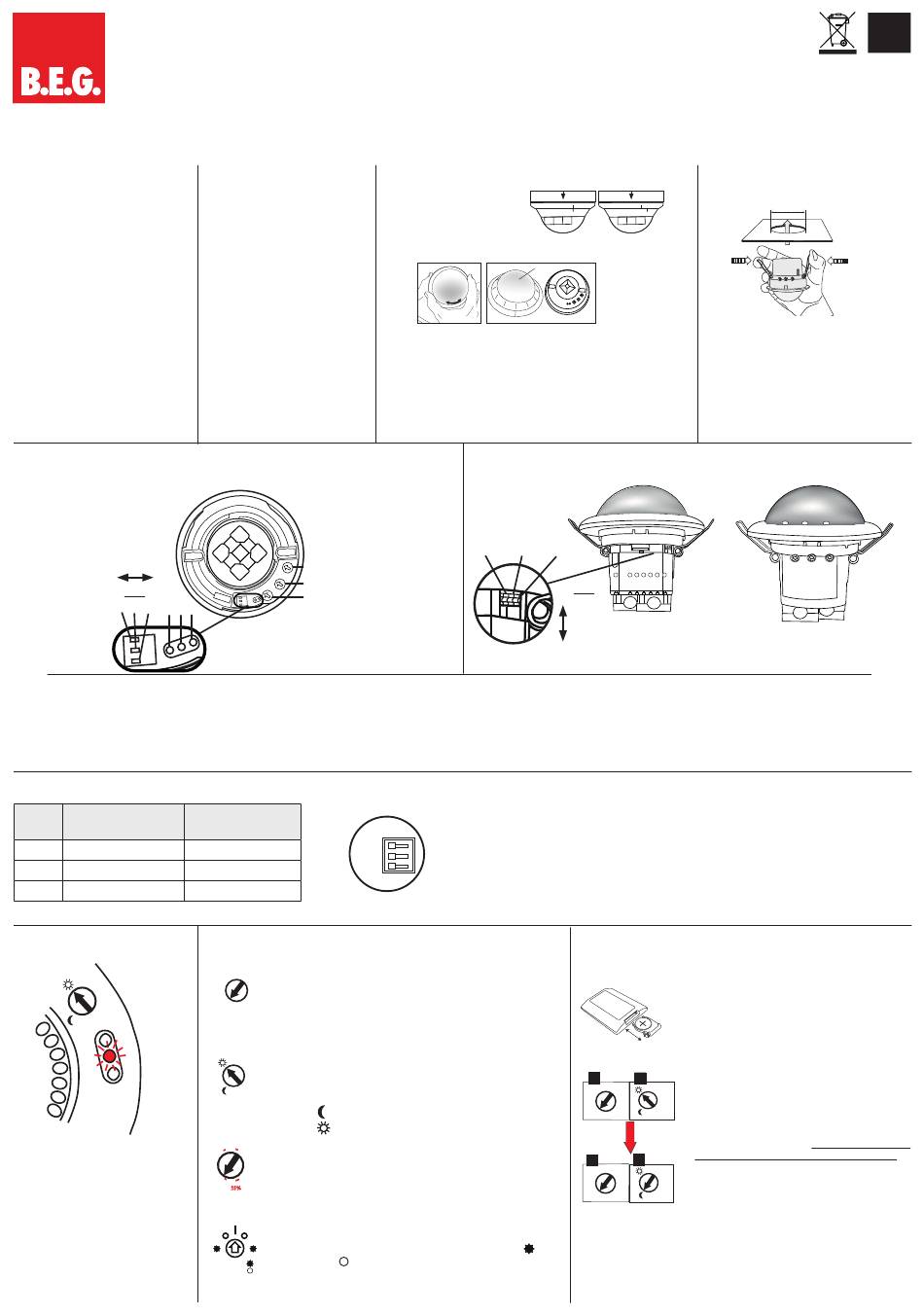

Installation and Operating Instruction for B.E.G.-Occupancy detectors PD4-M-DALI/DSI-C-SM/-FC
1a. Features
* For connection of up to 50 lamps
* Suitable for dimmable electronic
ballasts and control modules
* DALI/DSI output
* Constant light control
* Manual switching /dimming
* Semi or completely automatic
operation
* Luminance (brightness) set point,
switch-off delay time for LIGHT and
orientation-light adjustable
* Sensor and power sections in one
housing
* Infrared remote control
3a. Position DIP-Switches, LEDs and potentiometers SM
OFF On
DIP
1 2 3 I II III
DIP 1 = Change between fully automatic and semi automatic mode
DIP 2 = Change between HVAC-function and light control*
DIP 3 = Change between DALI/DSI mode
4. DIP switch functions
DIP- On
switch
1 Semi automatic mode
2 Corridor mode
3 DSI mode
5. Self test cycle
2000
1200
600
200
40
The PD4-M-DALI/DSI-C enters an
initial 60-second self-test cycle, when
the supply is first connected. The occu-
pancy detector is ready for operation.
1b. Mounting preparations
Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled elec-
trical personnel in accordance with
electrotechnical regulations.
Disconnect supply before installing!
When in Master / Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.
C
B
A
PD4-Surface
mounting
OFF
Fully automatic mode
DIP
Normal mode
DALI mode
120 60 50
A
6. Putting into operation / Settings
40
30
15 Follow-up time for light control
5
10
25 22
The time can be set infinitely variably at between
30
18
1 and 30 minutes.
R1 16
10
16 10
6 Symbol TeST: Test mode
TEST 5
3
1
2
Every movement switches on the light for a period of 1 second,
1
TEST switching it off for a period of 2 seconds after that regardless of
30
15
the level of brightness.
Twilight-switch for constant light control
2000
The switch-on value for the light can be set at between 10 and
1200
600
2000 Lux. Using the rotary control, the luminance set points can
200
40 be set as desired.
Symbol : Night-time operation
Symbol : Daytime / Night-time operation
Orientation lighting
ON
60 The orientation lighting can be set at between 5 and 60 min.
50
30 This rotary controller serves to determine the working time of the
10
5 orientation lighting.
OFF
„ON" for permanent orientation lighting.
„OFF" for deactiviation of orientation lighting.
Pulse spacing PD-Slave
2 or 9 seconds can be set for the pause between 2 pulses sent
9s 2s
to the master. The setting can be made with activated ( ) or
deactivated ( ) LED indicator.
LED ON
LED OFF
For devices with a separate slave input, 2 sec. can be set.
PD4-M-DALI/DSI-C
®
2a. Installation of the LUXOMAT
ATTenTIOn: For maximum
sensitivity the corridor detec-
tor-, lens- and corridor-axis
must match.
C
open
close
The detector must be in stalled on a solid and level surface. The
circular cover ring must be removed prior to assembly. To do this,
twist the lens (C) anticlockwise through approximately 5° and lift
off.
Having connected up the wires in accordance with regulations,
secure the detector with two screws. After installation replace the
lens and lock (turn clockwise). Mains to be connected.
3b. Position DIP-Switches, LEDs and potentiometers FC
1 2
Potentiometer A Lux channel1
Potentiometer B Time channel1
Potentiometer C Orientation lighting
The DIP settings are enabled again by:
• Adjusting the DIP switches when closed
• Reset with test sun setting at the potentiometers
OFF ON
• Reset when open
1
2
Corridor function: After deactivation by an external push button,
3
the detector switches off and returns to automatic mode after 5sec.
PD4-M-DALI/DSI-C-SM 2b. Installation of the LUXOMAT
®
closed
open
A circular opening of diameter 68 mm
must be produced in the ceiling. Having
connected up the cables in accor dance
with regulations, the detector is inserted
into the opening as shown in the drawing
opposite and fixed into position with the
assistance of the spring clips.
3
DIP
OFF
PD4-
False ceiling mounting
On
LeD I green The DIP switch settings are
remote control.
LeD II red
LeD III white
7. Settings carried out using remote control (optional)
Remote control LUXOMAT
120 60 50
A
1. Check Battery:
40
30
open battery compartment by pressing the
15
5 10
plastic springs together and removing the
battery-holder.
16 10
5
2
1
TEST 30
15
2. IMPORTAnT
1 2
Please pay attention, that the setting is potentio-
25 22
2000
30 meter 1 and potentiometer 2 not at the same
18
1200
R1 16
time at "TEST" and at "SUN". All values which
600
10
200
6
TEST
3 40 have been programmed using the remote control
1
will be deleted in the event of power failure in
the position "TEST /SUN". Please switch potentio-
meter 2 over to "MOON" or any other value.
1 2
25 22 2000
30
18 1200
Caution:
R1 16
600
10
200
6 Settings with remote control override the
TEST
3
1 40
potentiometer or DIP switch settings.
GB
®
PD4-M-DALI/DSI-C-FC
68 mm
I II III
A B C
using the
overriden
IR-PD-DALI
®
