ETC Installation Guide
ColorSource PAR Pearl v1.7

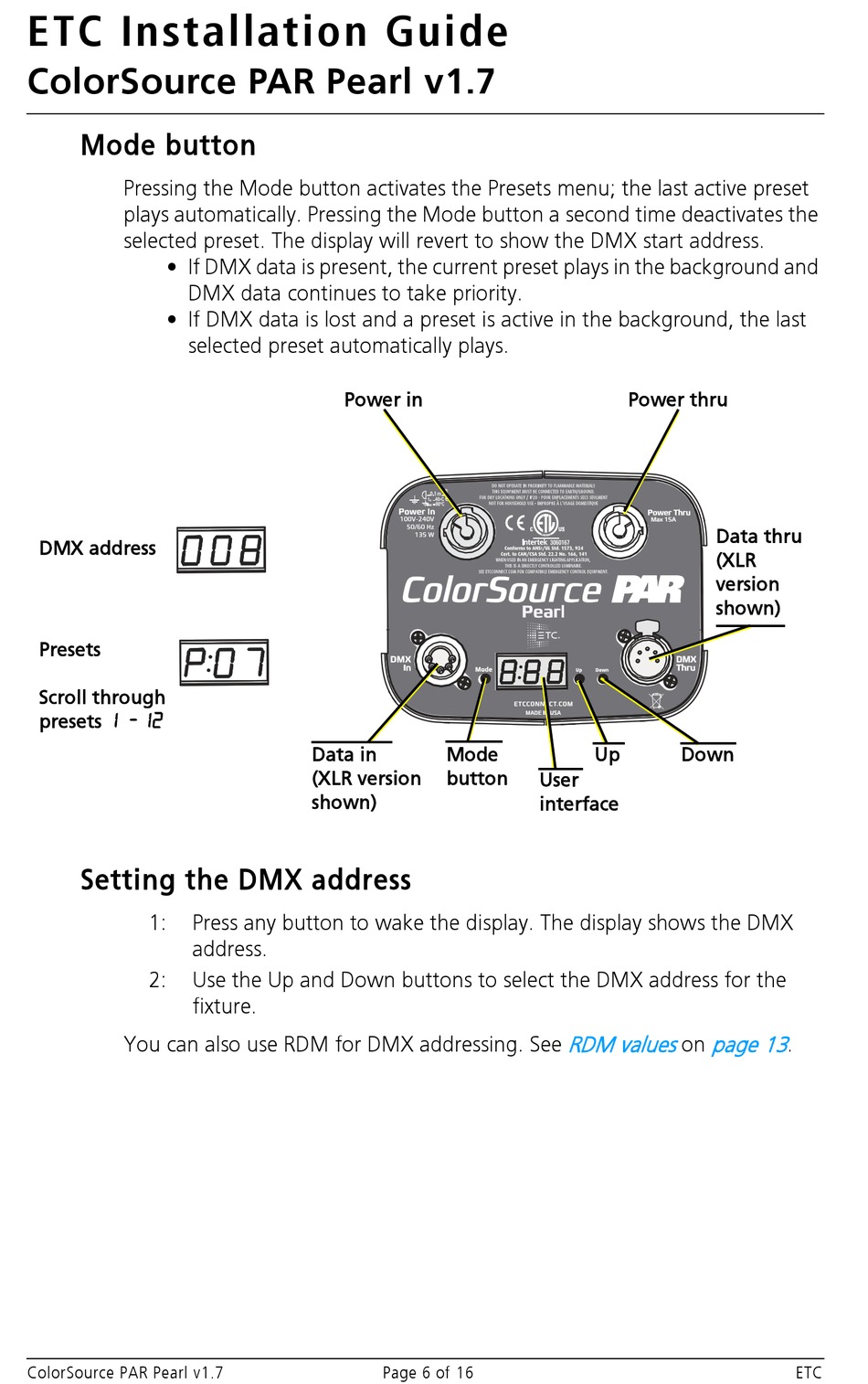

Mode button

Pressing the Mode button activates the Presets menu; the last active preset
plays automatically. Pressing the Mode button a second time deactivates the
selected preset. The display will revert to show the DMX start address.
• If DMX data is present, the current preset plays in the background and
DMX data continues to take priority.
• If DMX data is lost and a preset is active in the background, the last
selected preset automatically plays.
DMX address
Presets
Scroll through

presets

Setting the DMX address

1:
2:
You can also use RDM for DMX addressing. See
ColorSource PAR Pearl v1.7
Power in
Data in
(XLR version
shown)
Press any button to wake the display. The display shows the DMX
address.
Use the Up and Down buttons to select the DMX address for the
fixture.
Mode
button
User
interface
Page 6 of 16
Power thru
Data thru
(XLR
version
shown)
Up Down
RDM values page 13
on .
ETC
