Titan TED-1 Instruction Manual

ASSEMBLY DIAGRAM

4
NO PART NAME RAW MAT`L Q`TY
1 FRONT COVER PP 1
2 BACK COVER PP 1
3 NOZZLE HOLDER POM 1
4 HOLDER COVER PP 1
5 NOZZLE HOOK STAINLESS STEEL(SUS 304) 1
6 SCREW M4x10 6
7 TOGGLE SWITCH 1
8 WATERPROOF CAP 1
9 LED LAMP Φ3, RED 1
10 PCB ASS`Y CEM 1
10-1 RESISTOR 10kΩ 1
10-2 FUSE HOLDER 2
10-3 FUSE 5A 1
11 CONNECTOR WIRE 2
12 CONNECTER PIN 2
13 MOTOR WIRE PACKING VITON 2
14 BODY POM 1
15 O-RING(BODY) NBR 1
16 DRUM BUNG ADPTER PP 1
17 INNER PIPE STAINLESS STEEL(SUS 304) 1
18 SUCTION PIPE PACKING VITON 1
19 SUCTION PIPE PE 1
20 MOTOR WIRE PE 1
21 MOTOR COVER POM 1
22 O-RING(MOTOR COVER, HANDLE) VITON 2
23 MOTOR 1
24 MOTOR PACKING VITON 1
25 MOTOR CASE POM 1
26 IMPELLER ZDC 1
27 IMPELLER CASING POM 1
28 FILTER STAINLESS STEEL(SUS 304) 1
29 END CAP POM 1
30 O-RING(HOSE ADAPTER, SPOUT ADAPTER) VITON 3
31 HOSE ADAPTER PP 2
32 JOINT NUT PP 3
33 HOSE CLAMP STAINLESS STEEL(SUS 304) 2
34 DISCHARGE HOSE PE 1
35 HANDLE PP 1
36 NOZZLE CAP PP 1
37 NOZZLE SPRING STAINLESS STEEL(SUS 304) 1
38 NOZZLE PISTON POM 1
39 O-RING(PISTON L) VITON 1
40 O-RING(PISTON S) VITON 1
41 NOZZLE LEVER PP 1
42 SPOUT STAINLESS STEEL(SUS 304) 1
43 O-RING(SPOUT) VITON 1
44 SPOUT ADAPTER PP 1

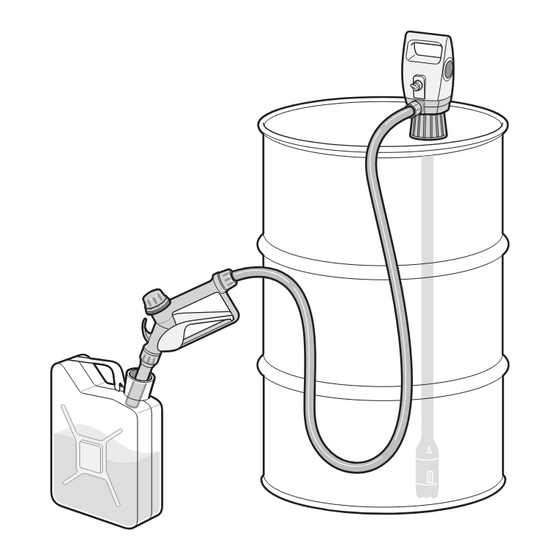

TED-1 Pump
INSTRUCTION MANUAL
Titan CTS
3040 White Horse Road | Greenville, SC 29611 | 864.385.7030
www.titancts.com
