Summary of Contents for Titan TTB844PMP

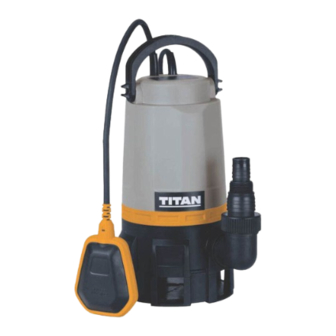

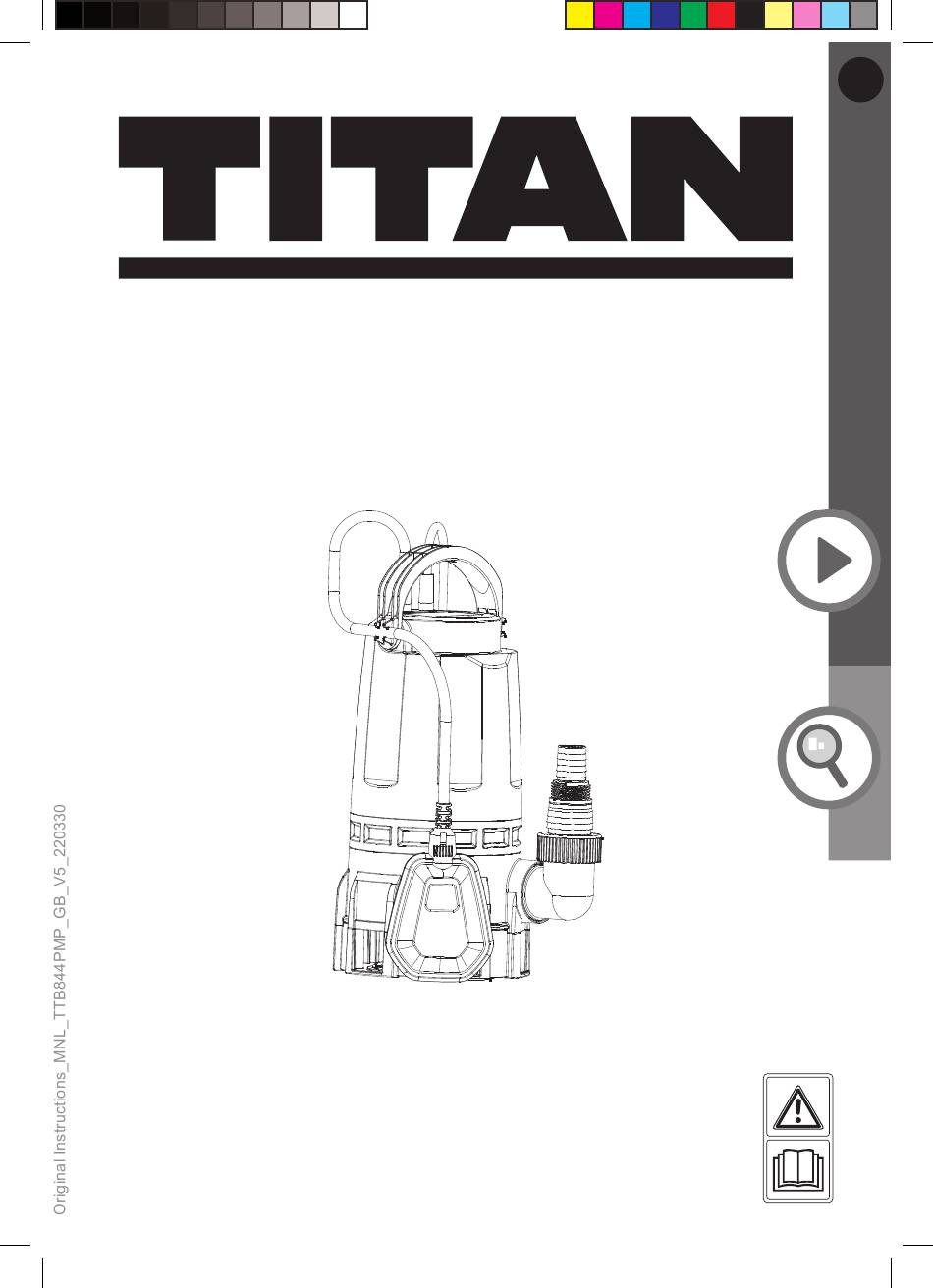

- Page 1 750W Dirty Water Pump TTB844PMP EAN: 5059340250052 CAUTION: Read the instructions before using the machine. BX220IM MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 1 8/6/21 4:40 PM...
- Page 2 MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 2 8/6/21 4:40 PM...
-
Page 3: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity... -
Page 4: Safety Information
Safety information TTB844PMP by TITAN Safety information General safety warnings 1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 TTB844PMP by TITAN Safety information 11. Disconnect the product from the power supply immediately if the cord or the product is damaged or if a breakdown occurs. Improper repairs can lead to electric shocks or other accidents. 13. Pull the plug rather than the power cord to disconnect the product from the power supply.
- Page 6 Safety information TTB844PMP by TITAN Safety information handle for submerging, lifting or securing. Check and clean the outlet and the inlet of the pump when needed. Do not pump liquids with sand or other abrasive substances. It causes increased wear and reduces the pumps output.
- Page 7 TTB844PMP by TITAN Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
-
Page 8: Your Product
Your product TTB844PMP by TITAN Your product 1. Power cord with 9. Base plug a. Bottom plate 2. Carry handle b. Screw (x3)* 3. Cable clip (x2) c. Impeller* 4. Housing 10. Float switch 5. Ventilation bore 11. Float switch cable 6. - Page 9 TTB844PMP by TITAN Your product Technical specifications > Rated voltage : 220- 240 V~, 50 Hz > Rated input power : 750 W > Delivery rate (Q : 14000 l/h > Total head (H : max. 8 m : max. 7 m >...
-
Page 10: Before You Start
The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Rating label explanation TTB844PMP = Model number TT = TITAN B = 220-240 V 844 = Random number generated... - Page 11 TTB844PMP by TITAN Before you start WARNING! The product and the packaging are not children’s toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation! You will need (items not supplied)
- Page 12 Before you start TTB844PMP by TITAN Setup 3. Lay the hose / pipe in as short and straight as possible. Avoid an excessive number of bends. 4. Choose a reinforced delivery hose / pipe of the same or larger diameter as the outlet nozzle in order to reduce friction loss.
- Page 13 TTB844PMP by TITAN Before you start Rope Hose Fig. 3 Fig. 4 Connection to power supply NOTE: Ask a qualified electrician to ensure that the protective earth conductor and RCD correspond with the local safety regulations and work faultlessly before connecting the product to the power supply.
-
Page 14: In More Detail
TTB844PMP by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 14 8/6/21 4:40 PM... - Page 15 TTB844PMP by TITAN Product functions Intended use This dirty water pump MDWP750-3 is designated with a rated input power of 750 Watts and is intended for the circulation of water with a maximum particle size of Ø 35 mm under a maximum temperature of 35 °C.
- Page 16 Product functions TTB844PMP by TITAN Float switch 1. Adjust the height of the relative switch on and off levels within certain parameters by lengthening or shortening the free cable length of the float switch cable (11). 2. Lift the carry handle (2) firstly, then fix the float switch cable (11) to either of the cable clip (3) afterwards (Fig.
- Page 17 TTB844PMP by TITAN Operation General operation 1. Check the product, its power cord, float switch cable (11) and plug (1) as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
- Page 18 Operation / Care and maintenance TTB844PMP by TITAN After use 1. Disconnect the product from power supply and let it cool down. 2. Check, clean and store the product as described below. The golden rules for care WARNING! Always disconnect the product from the power supply...
- Page 19 TTB844PMP by TITAN Care and maintenance Impeller If excessive deposits collect in the base, dismantle the bottom plate (9a) from the base (9) and clean the components (Fig. 7). Fig. 7 1. Loosen three screws (9b) anti-clockwise with a proper screwdriver and remove the screws (9b) together with the bottom plate (9a) from the base (9).
- Page 20 Care and maintenance TTB844PMP by TITAN UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
-
Page 21: Troubleshooting
TTB844PMP by TITAN Care and maintenance / Troubleshooting Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. - Page 22 Troubleshooting TTB844PMP by TITAN Troubleshooting Problem Possible cause Solution 1. Product does 1.1. Power supply not 1.1. Check power supply not start connected connection 1.2. Float switch (10) does 1.2. Raise position of the not switch on float switch (10) 2.
-
Page 23: Recycling And Disposal
TTB844PMP by TITAN Recycling and disposal Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. - Page 24 Guarantee TTB844PMPby TITAN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( 750W Dirty Water Pump) has a manufacturer’s guarantee of 2...
- Page 25 TTB844PMP by TITAN EC declaration of conformity EC declaration of conformity MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 23 8/6/21 4:41 PM...
- Page 26 EC declaration of conformity TTB844PMP by TITAN EC declaration of conformity MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 24 8/6/21 4:41 PM...
- Page 27 TTB844PMP by TITAN EC declaration of conformity EC declaration of conformity MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 23 8/6/21 4:41 PM...
- Page 28 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products MNL_750W-3 Dirty Water Pump_TTB844PMP_V1_210804.indd 25...
