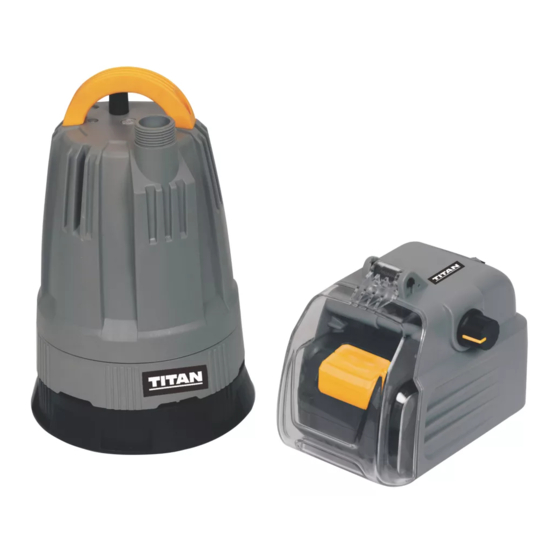

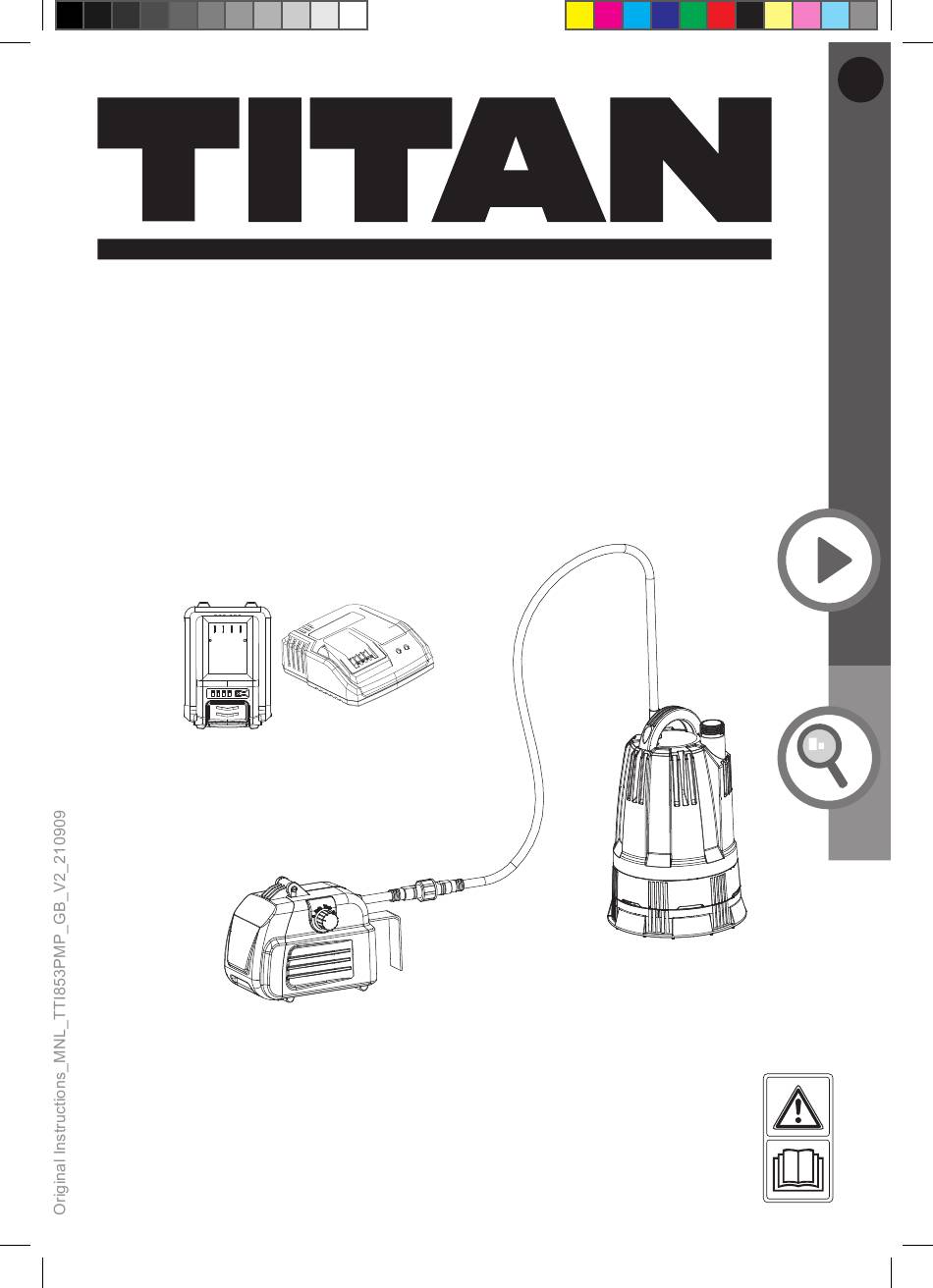

- Page 1 18V Li-Ion Water Butt Pump TTI853PMP EAN: 5059340250328 CAUTION: Read the instructions before using the machine. BX220IM MNL_18V Li-Ion Water Butt Pump_TTI853PMP_GB_V1_210909.indd 1 9/9/21 3:17 PM...
- Page 2 Guarantee Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
- Page 3 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_18V Li-Ion Water Butt Pump_TTI853PMP_GB_V1_210909.indd 3...
-
Page 4: Safety Information
Safety information TTI853PMP by TITAN Safety information General safety warnings 1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 TTI853PMP by TITAN Safety information 11. Do not use the product if damage is visible. Check the power cord, cable connector, battery compartment, attached hoses and casing before each use. Faulty products must be repaired or properly disposed of. 12. Switch the product off and remove the battery pack immediately if the cord or the product is damaged or if a breakdown occurs.
- Page 6 Safety information TTI853PMP by TITAN Safety information 12. Do not use the power cord to transport or secure the product. Fix a rope to the handle for submerging, lifting or securing. 13. Check and clean the outlet and the inlet of the pump when needed.
- Page 7 TTI853PMP by TITAN Safety information Charger safety warnings 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 8 Safety information TTI853PMP by TITAN Safety information 10. Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in any way. Have the charger checked and repaired by an authorised service centre.
- Page 9 TTI853PMP by TITAN Safety information 6. Do not expose a battery pack or tool to fire or excessive temperature. Continuous intense sunlight, fire or other heat sources may cause an increased danger of explosion. 7. Batteries can explode in the presence of a source of ignition, such as a pilot light.
- Page 10 Safety information TTI853PMP by TITAN Safety information Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards.
-
Page 11: Your Product
TTI853PMP by TITAN Safety information / Your product WARNING! This product produces electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend... -
Page 12: Technical Specifications
Your product TTI853PMP by TITAN Your product 1. Power cord b. Indicator line* 2. Outlet nozzle 11. Battery compartment 3. Carry handle a. Spigot (x2)* 4. Ventilation bore b. Release spring* 5. Top housing c. Stopper* 6. Pump housing d. Transparent cover a. - Page 13 TTI853PMP by TITAN Your product > Length of power cord : 3 m > Length of water hose : 3 m Battery pack > Model no. : TTI802BAT > Type : Li-Ion, > Capacity : 4000 mAh > Voltage : 18 V >...
- Page 14 Your product TTI853PMP by TITAN Symbols cubic metres per hour °C Degree Celsius Lock / to tighten or secure. Unlock / to loosen. Read the instruction manual. Note / Remark. Caution / Warning. xxWyy Manufacturing date code; year of manufacturing (20xx) and week of...
- Page 15 The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Rating label explanation TTI853PMP = Model number TT = TITAN I = 18 V 853 = Random number generated PMP = Pump MNL_18V Li-Ion Water Butt Pump_TTI853PMP_GB_V1_210909.indd 15...
-
Page 16: You Will Need
Before you start TTI853PMP by TITAN Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 17 TTI853PMP by TITAN Before you start Accessories 1. Only use accessories that fulfil the requirements of this product. Pay special attention to the diameter of hoses / pipes, adaptors and connectors. 2. We recommend the use of quick-release fasteners on the appropriate place to quickly separate the product for cleaning and/or maintenance work (or for storage) from the hose / pipeline system.
-
Page 18: Connection Of Power Cord
Before you start TTI853PMP by TITAN Setup 6. Fasten a rope to the carry handle (3) and submerge the product carefully into the water reservoir (Fig. 2). NOTE: Ensure the water reservoir has minimum dimensions of 20 x 20 x 40 cm, so that the product can be fully submerged in the water. -
Page 19: Battery Pack
TTI853PMP by TITAN Before you start NOTE: Ensure the seal ring (8f) is in right position without damage. 2. Push forward the lock sleeve (8e) to the cable connector (8) until the stop (Fig. 3, step 2). 3. Hold the cable connector (8) in position, then tighten the locking sleeve (8e) in anti-clockwise on the thread of cable connector (8) (Fig. - Page 20 Before you start TTI853PMP by TITAN Battery pack 2. Connect the charger (16) to the power supply. WARNING! Check the voltage! The voltage must comply with the information on the rating label! 3. After charging finished (this normally takes 1 hour, see below "Power / charging status indicator"...
- Page 21 TTI853PMP by TITAN Before you start 16c 16d Fig. 6 Charging Charging Status Remark failure status indicator indicator (16c) (16d) In charging. Charging Disconnect charger from power supply and remove Fully charged battery pack from charger. The charger will recover...
- Page 22 Before you start TTI853PMP by TITAN Battery pack Attaching the battery pack 1. Open the transpent cover (11d) of battery compartment (11) and hold it firmly in position (Fig. 8, step 1). 2. Align and slide the battery pack (12) into the battery compartment (11).
- Page 23 TTI853PMP by TITAN Before you start Fig. 9 Hook for battery compartment 1. Align and pass two eyelets (9a) of hook (9) to the spigots (11a) of battery compartment (11) (Fig. 10, step 1). 2. Secure the hook (9) in place by sliding the eyelets (9a) until the stop (Fig. 10, Step 2).
- Page 24 TTI853PMP by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal EC declaration of conformity MNL_18V Li-Ion Water Butt Pump_TTI853PMP_GB_V1_210909.indd 24 9/9/21 3:17 PM...
-
Page 25: Intended Use
Product functions Intended use This clean water pump TTI853PMP is designated with a rated voltage of 18 V . With suitable accessories the product can be used for pumping out of water from water reservoirs such as ponds, butts or wells to water gardens, flower beds etc. -
Page 26: General Operation
Product functions / Operation TTI853PMP by TITAN Electronic protection NOTE: Should the electronic protection continuously be activated even after following the steps under “Troubleshooting” do not continue to use the product. Have it checked and repaired by a qualified specialist. -
Page 27: Operation
TTI853PMP by TITAN Operation The function for each marking is listed as below: Marking Description of function Switch the product off. 5min Short running mode, and the pump will run continuously for 5min, then goes in standby mode. 15min Short running mode, and the pump will run continuously for 15min, then goes in standby mode. -
Page 28: After Use
Operation / Care and maintenance TTI853PMP by TITAN After use 1. Switch the product off and remove the battery pack and let it cool down. 2. Check, clean and store the product as described below. The golden rules for care... -
Page 29: Filter Plate
TTI853PMP by TITAN Care and maintenance Filter plate Dismantle the filter plate (6a) and clean it regularly (Fig. 12). Open Close Open Close Fig. 12 1. Turn the base (7) anti-clockwise to “Open” position and remove it. 2. Turn the filter plate (6a) clockwise to “Open” position and remove the filter plate (6a) from the pump housing (6). - Page 30 Care and maintenance TTI853PMP by TITAN UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
-
Page 31: Maintenance
TTI853PMP by TITAN Care and maintenance Maintenance Before and after each use, check the product and accessories for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. Power cord... -
Page 32: Troubleshooting
Care and maintenance / Troubleshooting TTI853PMP by TITAN Transportation 1. Switch the product off and remove the battery pack. 2. Always carry the product by its carry handle (3). 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. -
Page 33: Recycling And Disposal
TTI853PMP by TITAN Troubleshooting / Recycling and disposal Problem Possible cause Solution 3. Product 3.1. Electronic protection of 3.1. Re-install the battery switches off PCB cuts of power due pack, then re-activate after short to abnormal condition the On/Off switch (10). - Page 34 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products MNL_18V Li-Ion Water Butt Pump_TTI853PMP_GB_V1_210909.indd 35...
