- Page 1 1000W 2ʺ INOX dirty water pump TTB945PMP EAN: 5063022023315 CAUTION: Read the instructions before using the machine. BX220IM MNL_1000W INOX Dirty Water Pump_TTB945PMP_V1_220816.indd 1 8/16/22 2:44 PM...
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Technical and legal information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee... - Page 3 Safety information TTB945PMP by by TITAN Safety information General safety warnings This appliance shall not be used by children. Cleaning and user maintenance shall not be carried out by children. Always disconnect the appliance from the supply before assembling, disassembling or cleaning.
- Page 4 Safety information TTB945PMP by by TITAN 12. Do not use the product if damage is visible. Check the power cord, plug, attached hoses and casing before each use. Faulty products must be repaired or properly disposed of. 13. Disconnect the product from the power supply immediately if the cord or the product is damaged or if a breakdown occurs.
- Page 5 TTB945PMP by by TITAN Safety information 11. Do not use the power cord to transport or secure the product. Fix a rope to the handle for submerging, lifting or securing. 12. Check and clean the outlet and the inlet of the pump when needed.
- Page 6 Safety information TTB945PMP by by TITAN Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
-
Page 7: Your Product

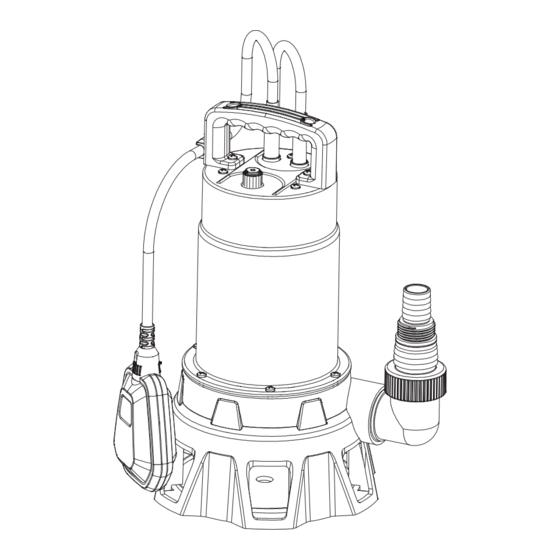

TTB945PMP by by TITAN Your product Your product 1. Float switch cable 8. Adaptor (2’’) 2. Cable clip 9. Outlet nozzle 3. Carry handle 10. Base 4. Ventilation bore a. Bottom plate* 5. Power cord with plug b. Screw (x3)* 6. - Page 8 Your product TTB945PMP by by TITAN Technical specifications > Rated voltage : 220- 240 V~, 50 Hz > Rated input power : 1000 W > Delivery rate (Q : 18500 l/h > Maximum total head (H : max. 9 m : max.
- Page 9 TTB945PMP by by TITAN Your product / Before you start Disconnect the product from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Max. delivery rate xx L/H Max. particle size Total head XX m Max. operating depth XX m WEEE symbol.
-
Page 10: Before You Start
Before you start TTB945PMP by by TITAN Unpacking WARNING! The product and the packaging are not children’s toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation! You will need... - Page 11 TTB945PMP by by TITAN Before you start Hose / pipe system 1. Install hoses / pipes in such a way that they do not exert any mechanical pressure on the product. 2. Secure hose / pipe in such a way as to prevent any oscillation, friction or weight impacting on the product.
- Page 12 Before you start TTB945PMP by by TITAN Setup Rope Hose Fig. 3 Fig. 4 Connection to power supply NOTE: Ask a qualified electrician to ensure that the protective earth conductor and RCD correspond with the local safety regulations and work faultlessly before connecting the product to the power supply.
-
Page 13: In More Detail
TTB945PMP by by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity MNL_1000W INOX Dirty Water Pump_TTB945PMP_V1_220816.indd 13 8/16/22 2:44 PM... - Page 14 TTB945PMP by by TITAN Intended use This dirty water pump TTB945PMP is designated with a rated input power of 1000 Watts and is intended for the circulation of water with a maximum particle size of Ø 35 mm under a maximum temperature of 35 °C.
- Page 15 TTB945PMP by by TITAN Product functions 3. Always make sure that the float switch (11) is free and unblocked when in the water to prevent the pump dry running. Fig. 5 Fig. 6 NOTE: Make sure the base can freely draw water and is free of mud and debris, when lowering the pump to the bottom of the water source.
- Page 16 Operation TTB945PMP by by TITAN General operation 1. Check the product, its power cord, float switch cable (1) and plug (5) as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
- Page 17 TTB945PMP by by TITAN Operation / Care and maintenance NOTE: If the water is not pumped after 20 seconds of starting, lower the float switch and lift the pump. Wait until the pump is emptied. Immerse the whole pump in water.
- Page 18 Care and maintenance TTB945PMP by by TITAN General Cleaning NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. 4. Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again.
- Page 19 Care and maintenance TTB945PMP by by TITAN Power cord If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. WARNING! Do not use the product with a defective or a loose power cord! UK plug (only for UK market) If you need to replace the fitted plug, then follow the instructions below.
- Page 20 Care and maintenance TTB945PMP by by TITAN Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage 1. Disconnect the product from the power supply.
-
Page 21: Troubleshooting
TTB945PMP by by TITAN Troubleshooting Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! -
Page 22: Recycling And Disposal
Recycling and disposal TTB945PMP by by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. -
Page 23: Guarantee
TTB945PMP by by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( 1000W INOX Dirty Water Pump) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. -
Page 24: Ec Declaration Of Conformity
EC declaration of conformity TTB945PMP by by TITAN EC declaration of conformity MNL_1000W INOX Dirty Water Pump_TTB945PMP_V1_220816.indd 24 8/16/22 2:44 PM... - Page 25 TTB945PMP by by TITAN EC declaration of conformity 2011/65/UE como restrição diretiva alterada da utilização de certas substâncias perigosas em equipamentos elétricos e eletrónicos References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared: Références des normes harmonisées pertinentes appliquées, y compris la date de celles-ci, ou des autres specifications techniques, y...
- Page 26 EC declaration of conformity TTB945PMP by by TITAN EC declaration of conformity BS EN IEC 55014-1:2021 BS EN IEC 55014-2:2021 BS EN IEC 61000-3-2:2019+A1 BS EN 61000-3-3:2013+A2 BS EN 60335-1:2012+A15 BS EN IEC 60335-2-41:2021+A11 BS EN 62233:2008 30/10/2023 MNL_1000W INOX Dirty Water Pump_TTB945PMP_V1_220816.indd 24...
- Page 27 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 1 Paddington Square,London,W2 1GG, United Kingdom EU manufacturer: Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands To view instruction manuals online, MNL_1000W INOX Dirty Water Pump_TTB945PMP_V1_220816.indd 26 8/16/22 2:44 PM...
