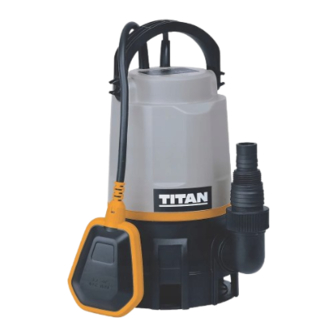

- Page 1 400W Dirty/Clean Water Pump TTB843PMP EAN: 5059340250021 CAUTION: Read the instructions before using the machine. BX220IM MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 1 8/6/21 2:27 PM...
- Page 2 MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 2 8/6/21 2:27 PM...
-
Page 3: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start detail... more Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity... -
Page 4: Safety Information
Safety information TTB843PMP by TITAN Safety information General safety warnings 1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 TTB843PMP by TITAN Safety information 11. Disconnect the product from the power supply immediately if the cord or the product is damaged or if a breakdown occurs. Improper repairs can lead to electric shocks or other accidents. 13. Pull the plug rather than the power cord to disconnect the product from the power supply.
- Page 6 Safety information TTB843PMP by TITAN Safety information handle for submerging, lifting or securing. Check and clean the outlet and the inlet of the pump when needed. Do not pump liquids with sand or other abrasive substances. It causes increased wear and reduces the pumps output.
- Page 7 TTB843PMP by TITAN Safety information Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
-
Page 8: Your Product
Your product TTB843PMP by TITAN Your product 1. Power cord with plug b. Function cover for dirty/ 2. Carry handle clear water* 3. Cable clip (x2) c. Clear water inlet* 4. Housing d. Screw (x4)* 5. Ventilation bore e. Washer* 6. - Page 9 TTB843PMP by TITAN Your product Technical specifications > Rated voltage : 220- 240 V~, 50 Hz > Rated input power : 400 W > Delivery rate (Q : 10000 l/h > Total head H : max. 6 m : max. 7 m >...
-
Page 10: Before You Start
The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. UK Conformity Assessed. Rating label explanation TTB843PMP = Model number TT = TITAN B = 220-240 V 843 = Random number generated... - Page 11 TTB843PMP by TITAN Before you start WARNING! The product and the packaging are not children’s toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation! You will need (items not supplied)
- Page 12 Before you start TTB843PMP by TITAN Setup 3. Lay the hose / pipe in as short and straight as possible. Avoid an excessive number of bends. 4. Choose a reinforced delivery hose / pipe of the same or larger diameter as the outlet nozzle in order to reduce friction loss.
- Page 13 TTB843PMP by TITAN Before you start 4. Fasten a rope to the carry handle (2) and submerge the product carefully into the water reservoir (Fig. 4). Rope Hose Fig. 4 NOTE: Ensure the water reservoir has minimum dimensions of 40 x 40 x 50 cm, so that the float switch (10) can move freely.
-
Page 14: In More Detail
TTB843PMP by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee EC declaration of conformity MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 14 8/6/21 2:27 PM... - Page 15 Product functions Intended use This dirty/clean water pump TTB843PMP is designated with a rated input power of 400 Watts and is intended for the circulation of water with a maximum particle size of Ø 25 mm under a maximum temperature of 35 °C.
- Page 16 Product functions TTB843PMP by TITAN Float switch The product is started at a certain water level by the float switch (10) (switch on level) (Fig. 5, A). The product continues pumping until the water level is lowered to a particular height and then the float switch turns the product off (switch off level) (Fig.
- Page 17 TTB843PMP by TITAN Product functions For dirty water use: 1. Lift the function cover (9b) to make it disengaged, then turn it 180º (Fig. 8) to make the clear water inlet (9c) stay in the opposite positon of the center (Fig.
- Page 18 Product functions / Operation TTB843PMP by TITAN General operation 1. Check the product, its power cord, float switch cable (11) and plug (1) as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
- Page 19 TTB843PMP by TITAN Operation / Care and maintenance NOTE: If the water is not pumped after 20 seconds of starting, lower the float switch and lift the pump. Wait until the pump is emptied. Immerse the whole pump in water.
- Page 20 Care and maintenance TTB843PMP by TITAN General Cleaning 1. Clean the product with a damp cloth and pH-neutral soap. Use a brush for areas that are hard to reach. 2. Remove stubborn dust with high pressure air (max. 3 bar).
- Page 21 TTB843PMP by TITAN Care and maintenance NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. Maintenance Before and after each use, check the product and accessories for wear and damage.
- Page 22 Care and maintenance TTB843PMP by TITAN UK plug (only for UK market) 5 AMP fuse Connect approved to Blue to BS 1362 N(Neutral) Brown L(Live) Outer sleeve Cable grip firmly clamped WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E.
-
Page 23: Troubleshooting
TTB843PMP by TITAN Care and maintenance / Troubleshooting Transportation 1. Disconnect the product from the power supply. 2. Always carry the product by its carry handle (2). 3. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. -
Page 24: Recycling And Disposal
Recycling and disposal TTB843PMP by TITAN Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. For further information visit www.recycle-more.co.uk. -
Page 25: Guarantee
TTB843PMP by TITAN Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( 400W Dirty/Clean Water Pump) has a manufacturer’s guarantee of... -
Page 26: Ec Declaration Of Conformity
EC declaration of conformity TTB843PMP by TITAN EC declaration of conformity MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 24 8/6/21 2:27 PM... - Page 27 TTB843PMP by TITAN EC declaration of conformity EC declaration of conformity MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 25 8/6/21 2:27 PM...
- Page 28 EC declaration of conformity TTB843PMP by TITAN EC declaration of conformity MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 24 8/6/21 2:27 PM...
- Page 29 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products MNL_400W Dirty/Clean Water Pump_TTB843PMP_V1_210803.indd 26...
