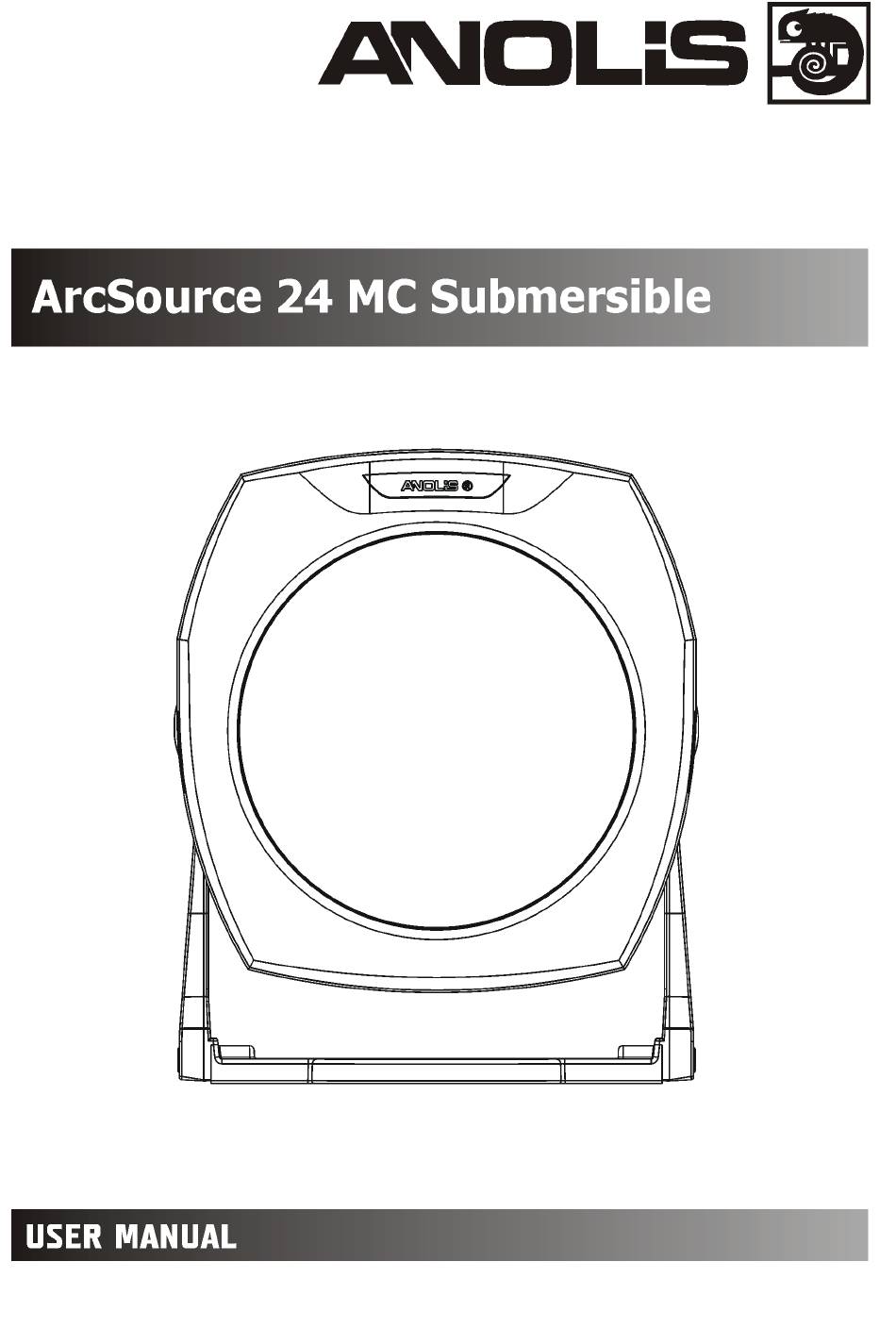

- Page 1 Version1.5...
-
Page 2: Table Of Contents
Table of contents 1. Introduction ....................3 2. Safety information ..................3 3. Mounting.....................3 4. ArcSource 24 MC Submersible connection with a control unit.....4 5. Technical specifications................5 6. Mounting the ArcSource 24 MC Submersible into installation sleeve..7 7. Cleaning and maintenance ...............7... -
Page 3: Introduction
“tilt” adjustment . Use a spanner no.13 (pos.1) and Allen key no.6 (pos. 2) to adjust desired tilt position of the LED module. For fastening the ArcSource 24 MC Submersible to the flat surface use either three holes or two semicircle slots which allows fine adjusting the fixture in a "pan" direction. -
Page 4: Arcsource 24 Mc Submersible Connection With A Control Unit
Maximum distance between the ArcPower 24 MC (24V) and the ArcSource 24 MC Submersible should must not exceed 50 metres. Connect the ArcSource 24 MC Submersible to the control unit ArcPower 24 MC (24V) according the picture below. For more information see the ArcPower 24 MC (24V) user manual. -
Page 5: Technical Specifications
LED module tilt adjustment range: 125° Mounting options: Stirrup Connecting cable: Paige P7342-SP cable, custom length Operating ambient temperature: -20°C +40°C (-4°F +104°F) Optional accessories: Installation sleeve (P/N 10980285) Floor Stand ArcSource 24 MC Submersible 5mm (P/N10980315) Dmensions (mm) ArcSource 24 MC Submersible... - Page 6 Installation sleeve Weight: 10 kg...
-
Page 7: Mounting The Arcsource 24 Mc Submersible Into Installation Sleeve
7. Put the shaped rubber gasket (16) on the glass (15). 8. Screw the top metal flange (17) by means of the six flat head screws M6x30 (18) to the installing sleeve. 9. Connect the ArcSource 24 MC Submersible to the ArcPower 24 MC (24V). 7. Cleaning and maintenance Disconnect from the mains before starting any maintenance work Rinse off loose dirt with low pressure water spray.
