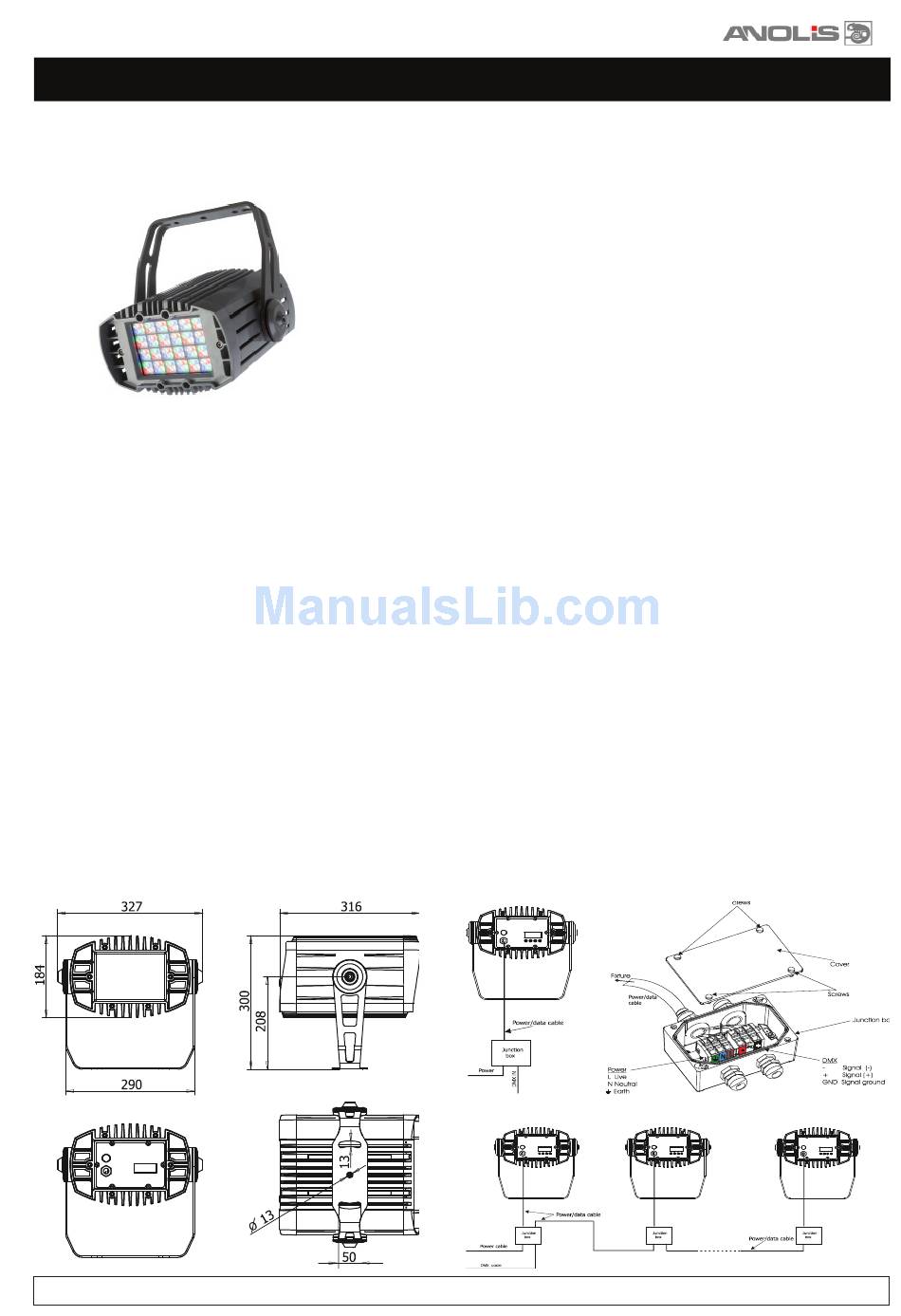

Anolis ArcSource 96 Technical Manual

TECHNICAL GUIDE
ArcSource 96 ™

TECHNICAL SPECIFICATIONS:

Power Supply Required: 100-240V AC 50/60Hz
Max Power Consumption: 200W
In Rush Current:35A Max - 10 ms
Available Beam Angles: See Pg 9
Impact Rating: IK 06
Ingress Protection Rating: IP67
Light Source: High Power LED´s
LED Life Expectancy: Min 76000 Hrs
Typical Lumen Maintenance: 70% @ 76000 hrs
Ral Colour: RAL9006
For further information regarding optical systems please visit the website:
Accessories:
Barndoors
Eggcrate top hat module
Accessories
Mounting Plate
Dimensional Drawing:
Ref: ArcSource 96
The ArcSource 96 Integral is the latest addition to the Anolis range of
LED projectors. Using the advanced technology of the highly successful
ArcPad 48 the ArcSource 96 brings even more power and light output
that is often required by todays demanding lighitng projects. Housed in
a compact IP67 rated aluminium housing, the 96 high power LED's pro-
vide unbelievable light output previously unavaliable in an LED fi xture
of this size. Control is via DMX/RDM allowing for advanced program-
ming options, latest technology electronics ensure stable white balance
is achieved as well as a minimum life expectancy of 76.000 hrs.
Construction: Cast
Fixing Method: Mounting Plate or Stirrup
Product Weight: 11kg
Operating Ambient Temp Range: -20°C/+40°C
Operating Temp: +80°C @ Ambient +40°C
LED Colour Variants: See Pg 9
Cooling System: Convection
Cable: Combined Power / Data (See Manual)
Wireless Version Avaliable: CRMX Technology Lumen Radio
www.anolis.eu
Compatible Drivers:
Connection Scheme:
Category: ArcSource
V10 - 20-06-2012
Page 1
