Summary of Contents for Anolis ArcSource Outdoor 24 MC Integral SmartWhite

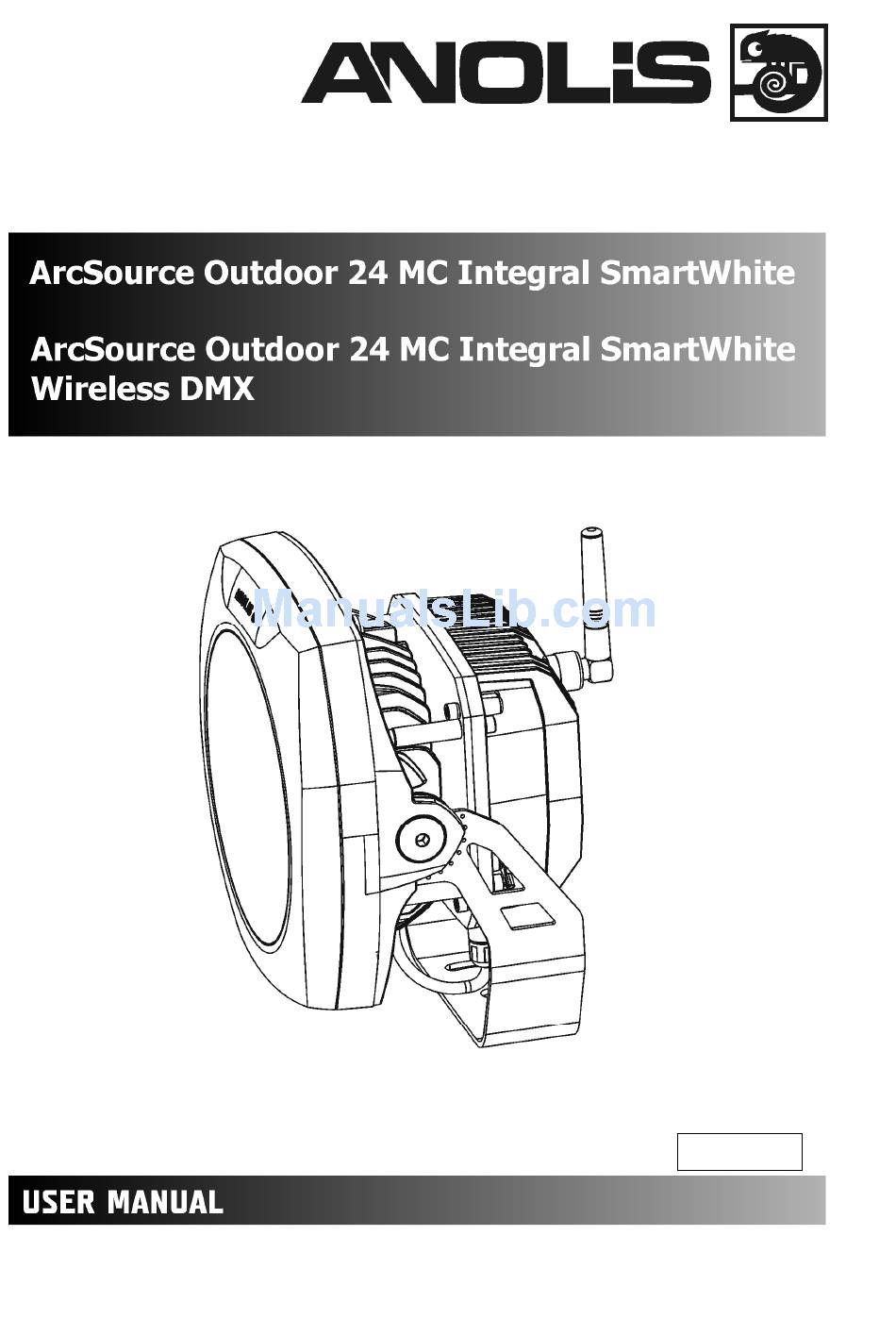

- Page 1 Version 1.4...
-
Page 2: Table Of Contents
ArcSource Outdoor 24 MC Integral SmartWhite Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Top hat (Half top hat ) installlation ........................6 3.3 Connection to the mains ............................ -
Page 3: Safety Instructions
ArcSource Outdoor 24 MC Integral SmartWhite FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcSource Outdoor 24 MC Integral ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual. - Page 4 ArcSource Outdoor 24 MC Integral SmartWhite The fixture was designed for outdoor use. This fixture must not be used for underwater installation. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
-
Page 5: Fixture Exterior View
ArcSource Outdoor 24 MC Integral SmartWhite 2. Fixture exterior view 1. LED unit 2. Control unit 3. Antenna (only wireless DMX version) 4. Tilt adjusting locks 5. „U“ bracket 6. Control board with anti-vandal cover 7. Power/Data cable 8. LED unit connecting cable 3. -
Page 6: Top Hat (Half Top Hat ) Installlation
ArcSource Outdoor 24 MC Integral SmartWhite Three slots in the fixture “U” holder serve for mounting on the non-flammable flat surface Ensure that the structure to which you are attaching the fixture is secure Caution: Overhead installation requires experience. Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the device and consult installation with an expert. -
Page 7: Connection To The Mains
ArcSource Outdoor 24 MC Integral SmartWhite 3.3 Connection to the mains Fixtures must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulation. This device falls under class one and must be grounded! The ArcSource Outdoor 24 MC Integral is equiped with with a 5-cored power/data cable. - Page 8 ArcSource Outdoor 24 MC Integral SmartWhite The junction box allows to connect several fixtures in a daisy chain of the power/data cable. Use the 3 x 1.5mm power cable to connect the first junction box with the mains and the power/data cable for connecting fixtures each other.
-
Page 9: Arcsource Outdoor 24 Mc Integral (Smartwhite) - Dmx Protocol
ArcSource Outdoor 24 MC Integral SmartWhite ArcSource Outdoor 24 MC Integral (SmartWhite) - DMX protocol Version 1.0 Mode/Channel Value Function Type of control Warm white LEDs 0 - 255 Warm white LEDs saturation control (0-100%) proportional Cool white LEDs 0 - 255... -
Page 10: Control Menu Map
ArcSource Outdoor 24 MC Integral SmartWhite 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 DMXA Set DMXA 0001-0512 0001 InFo POn Time. Total... - Page 11 ArcSource Outdoor 24 MC Integral SmartWhite Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Dimmer F 0-255 Store Defaults Manual Warm W 0-255 Dimmer F 0-255 Test Prg St ALone...
-
Page 12: Fixture Menu
ArcSource Outdoor 24 MC Integral SmartWhite Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Sin. Col. Smart W. Wireless Stat Unlink IniBlink On, Off Hold DMX On, Off Flicker freeM... -
Page 13: Personality
ArcSource Outdoor 24 MC Integral SmartWhite Pon Time ---Power On Time. Use the menu item to read the number of operation hours of the fixture. Total - the function shows the total number of the operation hours since the ArcSource Outdoor 24 MC Integral has been fabricated. -
Page 14: Manual Mode
ArcSource Outdoor 24 MC Integral SmartWhite Use this function to adjust contrast of the display (0-100%). Contrast - Use this function to adjust backlight of the display (0-100%). Backlight - Temp U --- Temperature Unit. Use this menu in order to display the fixture temperatures in desired units: °C or °F. -
Page 15: Special Functions
ArcSource Outdoor 24 MC Integral SmartWhite Pr Edit --- Editing a program. The fixture offers 3 freely editable programs (Prog.1-Prog.3) each up to 40 steps. Every program step includes a fade time-the time taken by the step´s channel status to reach the desired level and a step time-the total time occupied by the step in the program. - Page 16 To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from the Anolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.
-
Page 17: Rdm
ArcSource Outdoor 24 MC Integral SmartWhite Select COM if the seriál port is used. Select Robe Universal Interface if the USB port is used. If the connection is OK, click on the Start Uploading button to start uploading. It will take several minutes to perform software update. -
Page 18: Technical Specifications
ArcSource Outdoor 24 MC Integral SmartWhite SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DISPLAY_LEVEL DEVICE_RESET DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. 8. Technical specifications Power supply •... - Page 19 ArcSource Outdoor 24 MC Integral SmartWhite Wireless DMX/RDM module (for wireless DMX version only) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A • Full DMX fidelity and frame integrity • Auto sensing of DMX frame rate and frame size •...
- Page 20 ArcSource Outdoor 24 MC Integral SmartWhite Separate control unit Junction box Top hat...
- Page 21 ArcSource Outdoor 24 MC Integral SmartWhite Half top hat Tilt adjustment range • 90° Weight • 5.7 kg Protection factor • EU: IP 67 US: Suitable for wet location Impact resistance • IK 06 Connection • Data/power cable: Li9Y11Y 3xAWG16+2xAVG24 shielded and jacketed •...
-
Page 22: Cleaning And Maintenance
ArcSource Outdoor 24 MC Integral SmartWhite 9. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent.
