The lighting unit generates light by means of high power LED multichip. The product was designed for
installation to a lower ceiling and is intended for indoor use only.
1. Attention
Do not install the lighting unit near high inflammable liquids or materials.
Do not allow anything to rest on the lighting unit.
Do not use the lighting unit near high humidity or water or expose to the rain.
Do not install the lighting unit near the naked flames.
Do not install the lighting unit in dirty,dusty or badly ventilated location.
Sufficient air accessing to the housing of the unit has to be ensured,
there must not be any heat or anti-noise insulation around 0.6m x 0.6m
around the unit (non-IC rated fixture).
Avoid looking directly into the LED light beam at close range!
2. Installation

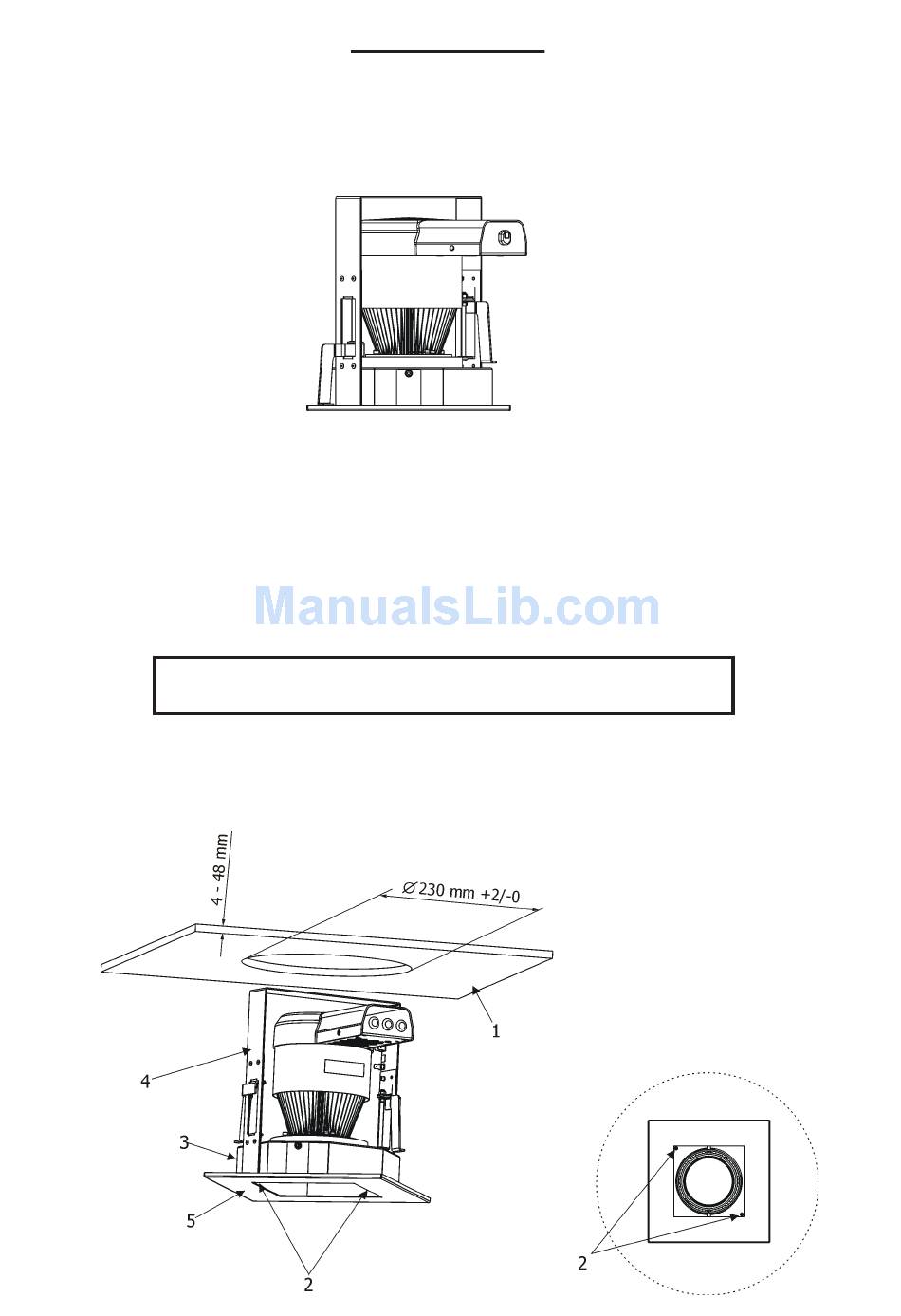

1. Prepare a circular opening in the lower ceiling (1) as shown at the picture below.
2. Insert the ArcSource 140 COB Recessed into the opening. Both adjustable rests (3) must be turned at
bracket (4) position to pass them throw the aperture.
User instructions
ArcSource 140 COB Recessed US
CAUTION!
1
Advertisement
Related Manuals for Anolis ArcSource 140 COB Recessed
Summary of Contents for Anolis ArcSource 140 COB Recessed
- Page 1 1. Prepare a circular opening in the lower ceiling (1) as shown at the picture below. 2. Insert the ArcSource 140 COB Recessed into the opening. Both adjustable rests (3) must be turned at bracket (4) position to pass them throw the aperture.
- Page 2 (1) is "squeezed" between adjustable rest (3) and frame (5) of the ArcSource 140 Recessed COB. 5. The light head can be tilted 15° from a vertical axis. 6. Connect cables to the ArcSource 140 COB Recessed. 3. ArcSource 140 COB Recessed connection...
- Page 3 Connect the cable to the suitable connection block (8). To pass the cable through the cable gland (9), make an opening in the blank cable gland (9). DIP switch DALI Power 4. DMX and DALI address setting and control The fixture can be controlled by one of the following method: DMX 512 DALI ArcPixel Power US (or ArcZone DRS Pixel US)
- Page 4 Compatible drivers: ArcPixel Power US (only one ArcSource 140 COB Recessed US per ArcDot output only) ArcZone DRS Pixel US (only one ArcSource 140 COB Recessed US per ArcZone DRS Pixel US) Diameter of mounting opening in lower ceiling: 230mm +2/-0mm 8.
- Page 5 9. Dimensions (All dimensions in inch) 10. Optional Accessories (P/N 10980299) Anti Glare Louvre AS 140 COB black (P/N 10980300) Anti Glare Louvre AS 140 COB white (P/N 10980301) Anti Glare Louvre AS 140 COB silver (P/N 10980302) Diffuser Holder AS 140 COB black (P/N 10980303) Diffuser Holder AS 140 COB white (P/N 10980304) Diffuser Holder AS 140 COB silver (P/N 10980305) Diffuser 28°...
- Page 6 - Robe Universal Interface To update software in the fixture: I. Installation of the Software Uploader. 1.The Software Uploader program is available from the Anolis web site at WWW.anolis.cz. 2. Download the software to your PC. II.Fixture software updating. 1.Connect the Robe Universal Interface to the PC and to the DMX input of the fixture.
