Anolis ArcLine 36/K2 User Instructions

ArcLine Double Outdoor Optic 36/K2 & 48/K2 & 72/K2
The products generate colored light by means of red,green and blue LEDs.The products were designed for
exterior use and they are ideal for locations where effect lighting with long lifetime is required.
1.Attention:
During the operation the housing becomes hot (up to 85°C).
Consider the respective national norms during the installation.
Operate only in places where the sufficient airflow to cool the module is present.
The maximum surface temperature of the housing must never be exceeded.
Do not install the unit near naked flames.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Avoid looking directly into the LED light beam at close range.
Do not install the module in badly ventilated location
2.Installation:

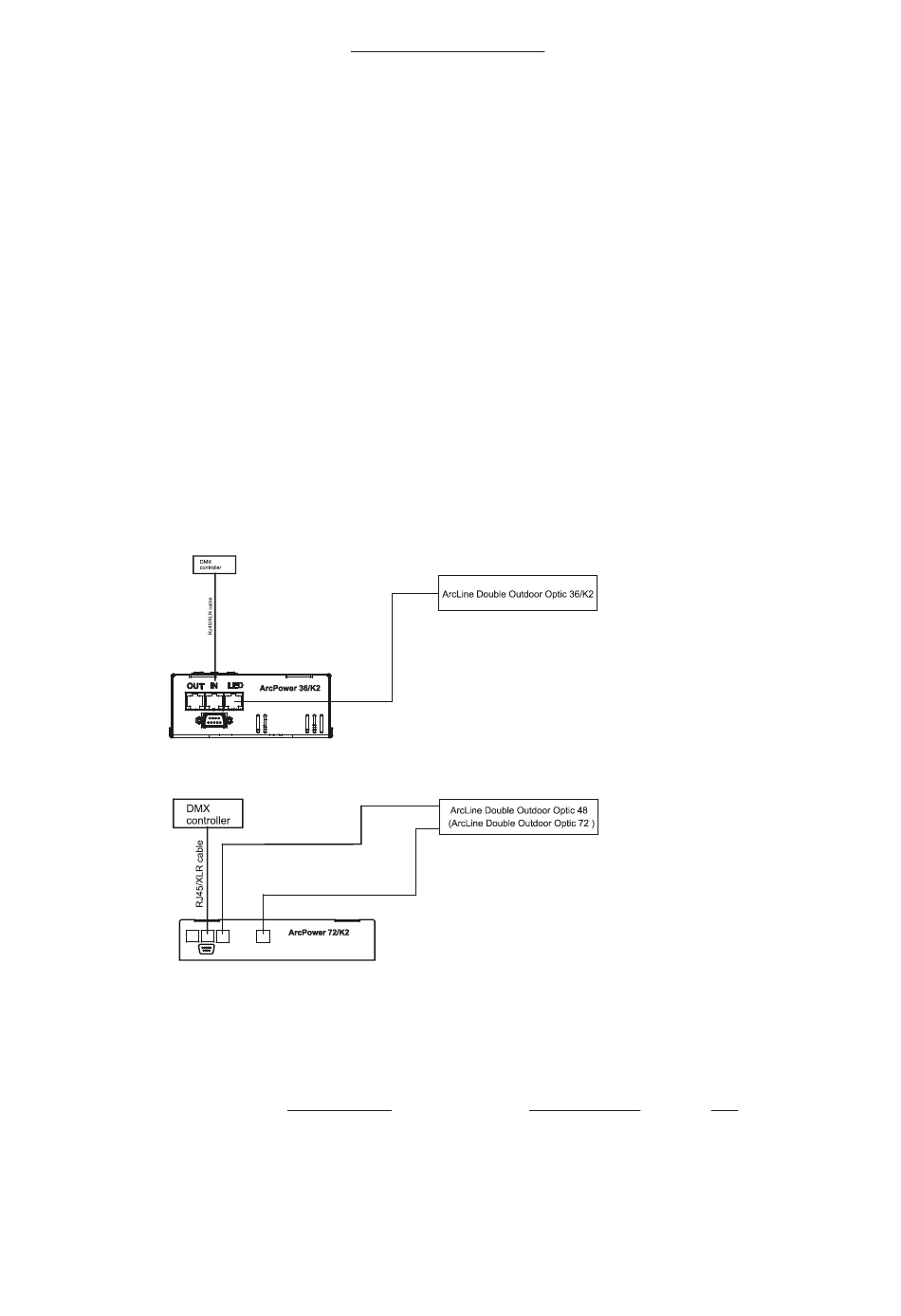

The ArcLine Double Outdoor unit should be connected to the ArcPower drivers according to the LEDs and
colours variants.
See ArcPower 36/K2 or ArcPower 72/K2 (or their SmartWhite variants) user manuals for full details of mains
power requirements and DMX operation.
Note: Set right current-carrying capacity of each LED branch (colour) in order to keep declared lifetime of LED
modules - see menu "SPE" on each ArcPower /K2 driver.
The ArcLine Double Outdoor unit can be arranged in any position orientation.Spotlight body is mounted on
a steel "U" bracket for "tilt" adjustment, with fixings which can be locked in position to retain the focus of the
unit beam.
Connect the end of the ArcLine Double Outdoor´s cable directly to the driver or use suitable cable joint box
(weather-tight for outdoor installation) if the cable has to be extended.The Belden cable that connects the
ArcLine Double Outdoor unit to the driver ArcPower has the following wiring:
Pin Colour of wire
1 white/orange
2 orange
3 white/green
4 blue
5 white blue
6 green
7 white/brown
8 brown
User instructions
RGB or RAB
Red LED +
Green (Amber) LED +
Blue LED +
Not used
Red LED -
Green (Amber) LED -
Blue LED -
Not used
1
Single colour
LED 1+
LED 2+
LED 3+
Not used
LED 1-
LED 2-
LED 3-
Not used
SW
Warm White LED1 +
Cool White LED1 +
Warm White LED2 +
Cool White LED2 +
Warm White LED1 -
Cool White LED1 -
Warm White LED2 -
Cool White LED2 -
