Anolis ArcSource 24 MC User Instructions

The module generates colored light by means of RGBW LED multichips. The product was designed to use
with the ArcPower drivers and for indoor use only.

1.Attention

Do not install the module near high inflammable liquids or materials.
Do not allow anything to rest on the module.
Do not use the module near high humidity or water or expose to the rain.
Do not install the module near the naked flames.
Do not install the module in dirty,dusty or badly ventilated location.
Sufficient air accessing to the cooling ribs of the module housing has to be ensured.
Use the AR111 (not included) fittings to fix the modules on a suitable place.

2.Installation

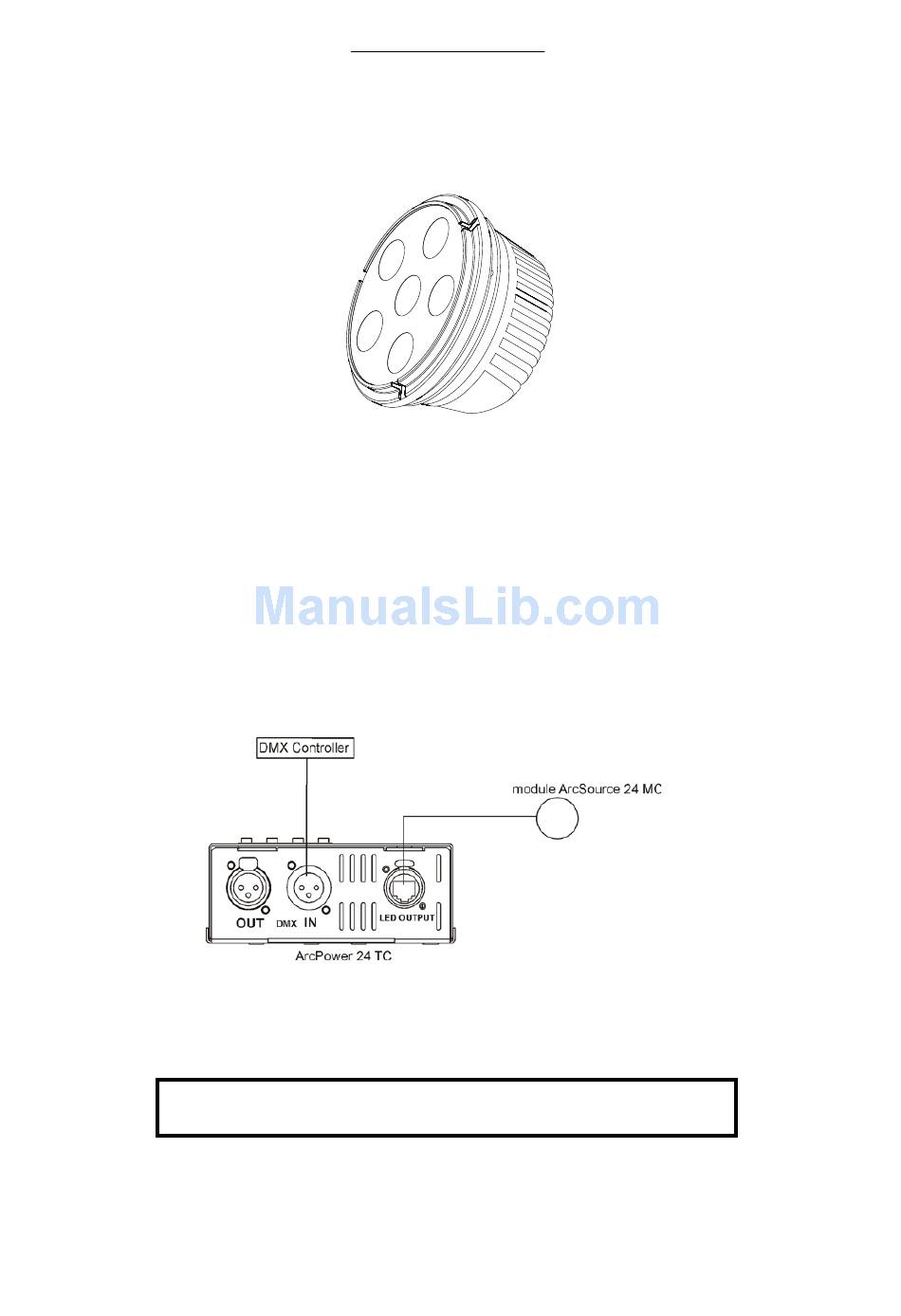

The ArcSource unit should be connected to the ArcPower drivers. See ArcPower 24 TC and ArcPower 4x24TC
user manuals for full details of mains power requirements and DMX operation.
ArcSource units are supplied with .5 m of cable for direct connection to the ArcPower drivers.
Avoid looking directly into the LED light beam at close range!
Only one ArcSource unit can be connected to the ArcPower 24 TC ( or one LED output of the ArcPower 4x24
TC).
Note: The ArcPower 24 TC (ArcPower 4x24TC) has protection against overheating of the LED
module. If the temperature iside of the ArcSource 24 MC unit exceeds max. level, the light output of
the fixture is reduced.
User instructions
ArcSource 24 MC
CAUTION!
