Anolis ArcSource Outdoor 24 MC User Instructions

The product generates colored light by means of high power LEDs.The product was designed for exterior use
and it is ideal for locations where signaling,directional or effect lighting is required.
1.Attention
Consider the respective national norms during the installation!
Do not install the unit near naked flames.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Do not install the module in badly ventilated location
Avoid looking directly into the LED light beam at close range.
2.Installation
The ArcSource Outdoor unit can be connected to the ArcPower Rack Unit,
48 Outdoor, ArcPower 192 Outdoor, DRS. See their user manuals for full details of mains power requirements
and DMX operation.

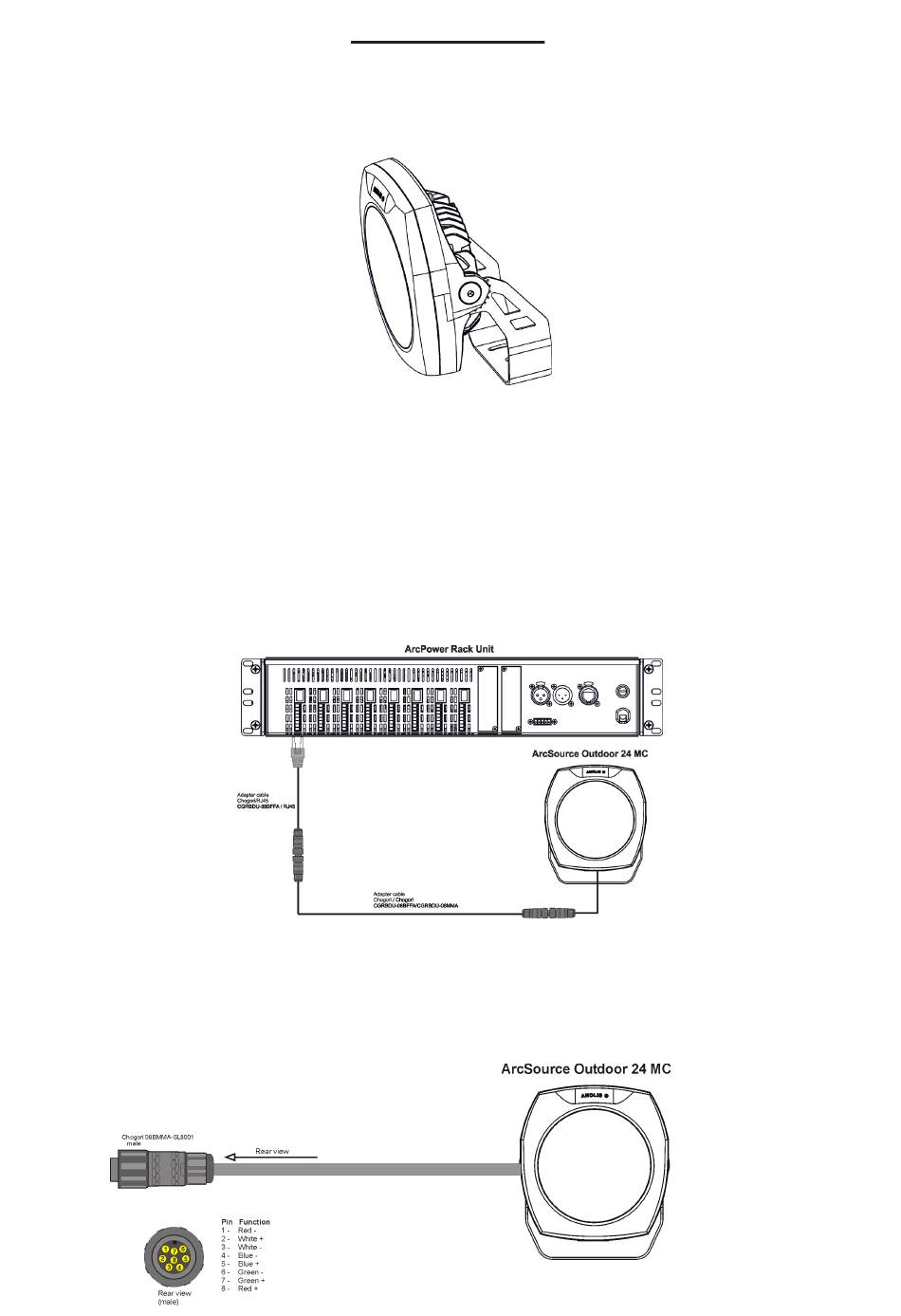

Example of installation:
Number of connected ArcSource Outdoor 24 MC to the one LED output of the LED driver:
1 unit for ArcPower 24 Outdoor
2 units for ArPower 48 Outdoor, ArcPower 192 Outdoor, ArcZone DRS, ArcPower Rack Unit
Note: Use the T-connector Chogori 8-pin (optional accessories) for multiply units installation.
Connections:
1. ArcSource Outdoor 24 MC
User instructions
ArcSource Outdoor 24 MC
1
ArcPower 24 Outdoor, ArcPower
