Summary of Contents for Anolis Divine 160 RGBW

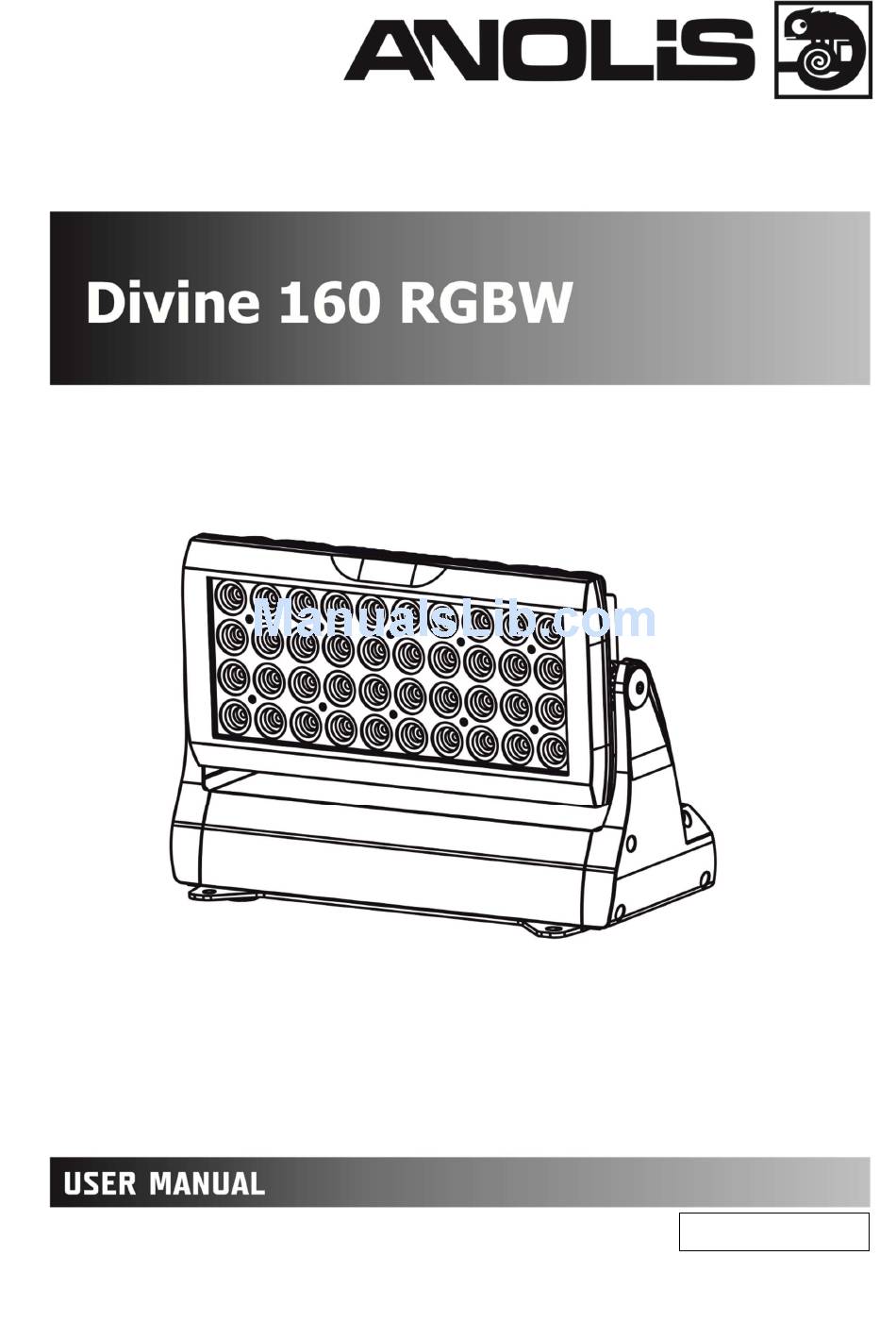

- Page 1 Version 1.1...
-
Page 2: Table Of Contents
3. Installation .................................. 6 3.1 Connection to the mains ............................6 3.2 Mounting the fixture ............................8 4. Divine 160 RGBW - DMX protocol ..........................9 5. Control menu ................................12 5.1 Fixture Address ..............................12 5.2 Fixture information ............................. 12 5.3 Personality ................................ -
Page 3: Safety Instructions
Divine 160 RGBW FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR Divine 160 RGBW! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. - Page 4 Divine 160 RGBW If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation of water might damage your device. Leave the device switched off until it has reached room temperature.
-
Page 5: Fixture Exterior View
Divine 160 RGBW 2. Fixture exterior view Side connection shown Rear connection shown 1. Head with LED array 2. Tilt lock 3. Base 4. Cable glands or blind flange (depends on fixture version) 5. Surface Mounting adapter Note: customer can interchange the cable glands and blind flanges in the fixture base to create a side or rear... -
Page 6: Installation
This device falls under class one and must be grounded! To connect the Divine 160 RGBW to mains and a DMX controller, use a 5-cored cable Flamar Li9YC11Y. The 3 cores serve for the power supply and 2 shielded cores are intended for DMX connection:... - Page 7 Divine 160 RGBW Note: If you are interchanging cable glands (4) and blind flanges (10), do not forget to apply LOCTITE 5331 and 577 on cable glands and LOCTITE 577 on blind flanges. 7. After connecting cables and setting the fixture by means of the control display and four buttons, place the cover (1) on the terminal block back, make sure the seal (5) is inserted correctly.
-
Page 8: Mounting The Fixture
3.2 Mounting the fixture The Divine 160 RGBW can be arranged in any position/orientation without altering its operation characteristics. The LED module can be tilted to desired position by means of the tilt lock. Use an Allen key 6 to adjust desired tilt position. -
Page 9: Divine 160 Rgbw - Dmx Protocol
Divine 160 RGBW 4. Divine 160 RGBW - DMX protocol Version 1.2 Mode 1 Mode 2* Value Function Type of Channel Channel control Special functions 0-19 Reserved To activate following functions , stop in DMX value for at least 3 sec. - Page 10 Divine 160 RGBW 0-255 Green LEDs saturation control (0-100%) proportional Blue - zone 2 0-255 Blue LEDs saturation control (0-100%) proportional White - zone 2 0-255 White LEDs saturation control (0-100%) proportional Red - zone 3 0-255 Red LEDs saturation control (0-100%)
- Page 11 Divine 160 RGBW Red(Red=full, Green=0, Blue=0, White=0) step 176 -214 Red=full, Green=0, Blueup, White=0 proportional Magenta step (Red=full, Green=0, Blue=full, White=0) 216 - 246 Reddown, Green=0, Blue=full, White=0 proportional Blue (Red=0, Green=0, Blue=full, White=0) step 248-251 Rainbow effect from min.->max. s...
-
Page 12: Control Menu
Divine 160 RGBW 5. Control menu The Divine 160 RGBW is equipped with a 4-segment LED display which allows you to set the fixture´s behaviour according to your needs, obtain information on its operation, control all range of effects and program it in stand-alone mode. -
Page 13: Personality
DM.In.---DMX values. Select this function to read DMX values of each channel received by the fixture. 5.3 Personality Use this menu to modify the Divine 160 RGBW operating behaviour. DM.Pr. --- DMX preset. Select this menu item to set a desired DMX mode. Please refer to the chapter "DMX protocol"... - Page 14 Divine 160 RGBW 2. Disconnect DMX controller 3. Select option “AnL.d.” from menu DMX input 4. Connect DC voltage to the DMX input of the fixture F.tin. --- Max. Fade time. Select this menu item to set a desired max. fade time (0-25.4 sec.). This adjusted fade time influences fade of Red, Green, Blue,White and dimmer during DMX operation: If time between two receiving DMX values is >...
-
Page 15: Manual Mode
4. Press the ENTER button and use the UP/DOWN buttons to set value , press the ENTER button to confirm it. 5. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the Divine 160 RGBW. -
Page 16: Stand-Alone Setting
Divine 160 RGBW 5.6 Stand-alone setting The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be different for every fixture. “Stand-alone operation” can be applied to the single fixture or to multiple fixtures operating synchronously. -
Page 17: Special Functions
1. DMX Software Uploader program is available from the Anolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis Uploader) on your hard disk and download the software to it. 3. Unpack the program to the directory. - Page 18 Divine 160 RGBW - with the DMX input of the fixture if you are using the flash cable RS232/DMX - with the DMX output of the Robe Universal Interface if you are using the USB cable. Disconnect the fixture from the other fixtures in the DMX chain. Turn both the computer and the fixture on.
-
Page 19: Technical Specifications
• Manual control of all effects via control panel • One editable program, up to 40 steps Wireless DMX/RDM module (only for wireless DMX version of the Divine 160 RGBW) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A •... - Page 20 Divine 160 RGBW Impact rating • IK10 Temperatures • Ambient operating temperature range: -20°C/+40° C • Operating temperature: 75° C (at 40°C) Minimum distances Min. distance from flammable material: 0.3 m Min. distance of illuminated object: 0.8 m Total heat dissipation •...
-
Page 21: Cleaning And Maintenance
Should you need any spare parts, please use Anolis OEM parts. 7.1 Replacing a fuse This replacement has to be done by a qualified person or Anolis service worker only. 7.2 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local regulations and codes.
