Summary of Contents for Anolis ArcLine DVP 600 Integral

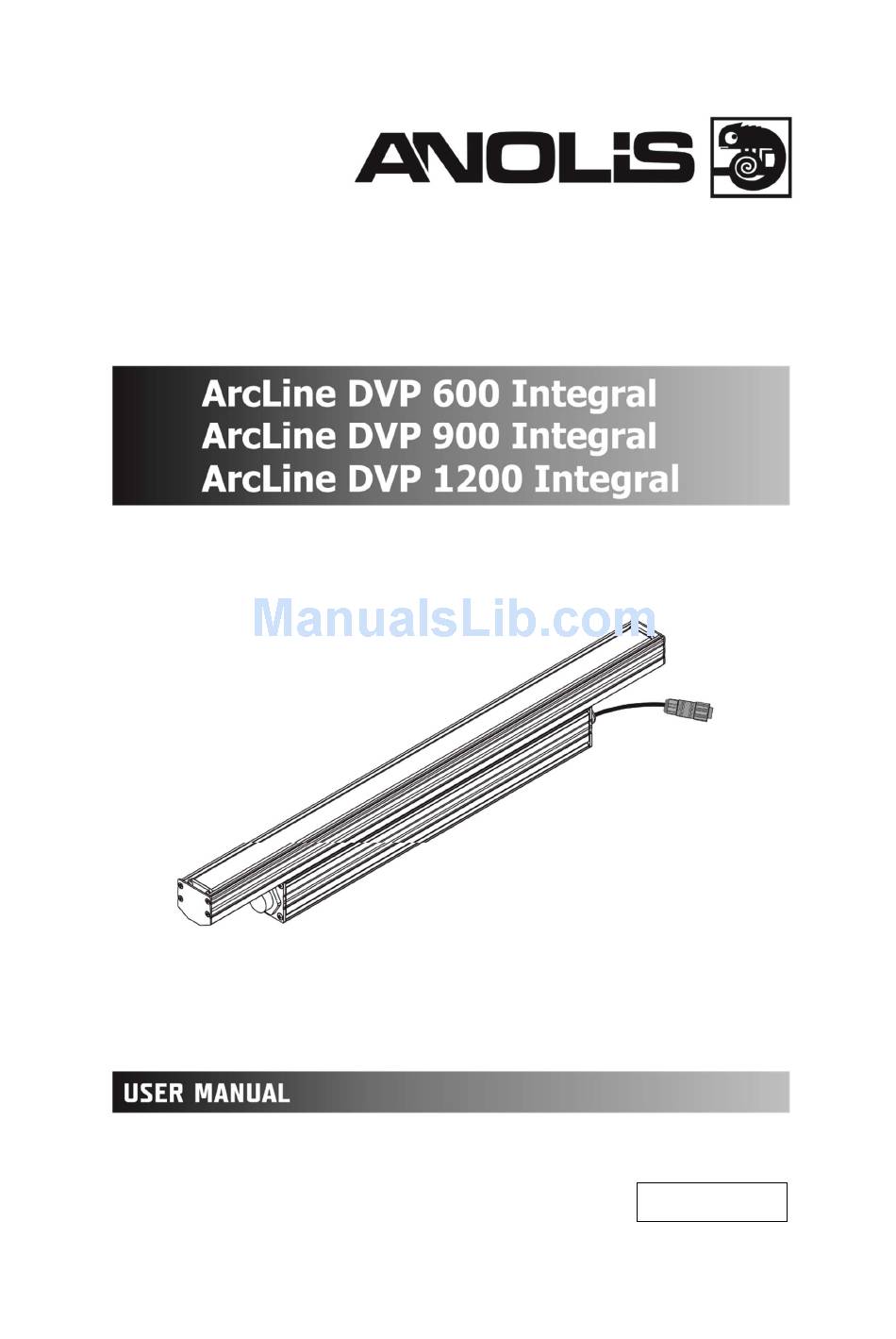

- Page 1 Version 1.3...
-
Page 2: Table Of Contents
ArcLine DVP Integral Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................4 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connecting to mains ............................. 5 3.2 Connecting ArcLines DVP Integral with the Data Configurator ................7 3.3 Installing diffuser .............................. -
Page 3: Safety Instructions
ArcLine DVP Integral FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcLine DVP Integral ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is absolutely necessary for the user to follow the safety instructions and warnings written in this manual. -
Page 4: Fixture Exterior View
ArcLine DVP Integral The fixture was designed for outdoor use. This fixture must not be used for underwater installation. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials when the fixture is under operation. -
Page 5: Installation
ArcLine DVP Integral 3. Installation 3.1 Mounting the fixture The ArcLine DVP Integral can be arranged in any orientation on a flat, non-flammable surface by means of the wall mount adaptor . 1. Screw both mounting brackets (2) on a flat surface by means of suitable flat-head screws (3). The hole in the mounting bracket (2) has a diameter of 6.2mm. - Page 6 ArcLine DVP Integral Wiring of input/output connectors: Input - cable connector Output - panel connector (rear view - from side of soldering) (rear view - from side of soldering) Fixture´s Chogori panel/cable connectors are dust and water protected according to IP 67 by mating with related Chogori cable/panel connectors.
-
Page 7: Connecting Arclines Dvp Integral With The Data Configurator
Both LED outputs of the Data Configurator are used If you install the ArcLines DVP Integral of the same type (e.g. ArcLine DVP 600 Integral), the supply cables of the ArcLines DVP allow installation of the ArcLines DVP Integral close in a row as shown on pictures above. - Page 8 ArcLine DVP Integral Max. load of the Data Configurator is 40 Arcline DVP Integral fixtures regardless of type of used modules (40 x ArcLine 600 DVP Integral or 40 x ArcLine 900 DVP Integral or ArcLine 1200 DVP Integral or their combinations e.g 10 x ArcLine 600 DVP Integral + 30 x ArcLine 1200 DVP Integral).
- Page 9 ArcLine DVP Integral The following picture shows possible combinations of the ArcLines DVP Integral and a need of Connection cables ArcLine DVP-to- ArcLine DVP in some cases of their installation in a close row.
-
Page 10: Installing Diffuser
ArcLine DVP Integral 3.3 Installing diffuser Disconnect the fixture from power before installing diffuser. 1. Remove two side caps (1) on the DVP Integral housing by unscrewing four screws (2) on each side. 2. Screw new side caps (3) to the housing. 3. -
Page 11: Technical Specifications
• ArcLine DVP 600 Integral: 68 BTU/h (calculated) • ArcLine DVP 900 Integral: 102 BTU/h (calculated) • ArcLine DVP 1200 Integral: 136 BTU/h (calculated) Dimensions for ArcLine DVP 600 Integral/ ArcLine DVP 900 Integral/ ArcLine DVP 1200 Integral All dimensions in mm [inch] Without diffuser... - Page 12 ArcLine DVP Integral With round diffuser With flat diffuser Wall mount adaptor (assembled)
- Page 13 ArcLine DVP Integral Weight • ArcLine DVP 600 Integral: 2 kg (4.4 lbs) • ArcLine DVP 900 Integral: 2.2 kg (5.5 lbs) • ArcLine DVP 1200 Integral: 2.6 kg (5.95lbs) Protection factor • CE: IP 66 • US: Suitable for wet location Operating ambient temperature range •...
-
Page 14: Cleaning And Maintenance
Rinse it. Maintenance and service operations are only to be carried out by a qualified person. Should you need any spare parts, please use Anolis OEM parts. 5.1 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local regulations and codes.
