Anolis ArcSource Outdoor 16 MC Pixel User Instructions

The Anolis ArcSource Outdoor 16 MC Pixel is a multi-purpose, high-intensity RGBW LED unit for
generating a wide variety of effects without the limitations associated with a solid fixture unit.The unit´s high
light output can be pixel mapped and therefore can be controlled and used for large scale matrix applications,
as well as used for individual illuminating needs.
.
1.Attention
Consider the respective national norms during installation of the unit!
Do not install the unit near an open flame.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Do not install the module in badly ventilated location
Avoid looking directly into the LED light beam at close range.
2.Installation
The ArcSource Outdoor 16 MC Pixel unit should be connected to the ArcPixel Power-CE (ArcPixel Power US)
or ArcZone DRS Pixel. See their user manuals for full details of mains power requirements and DMX (ArtNet)
operation.

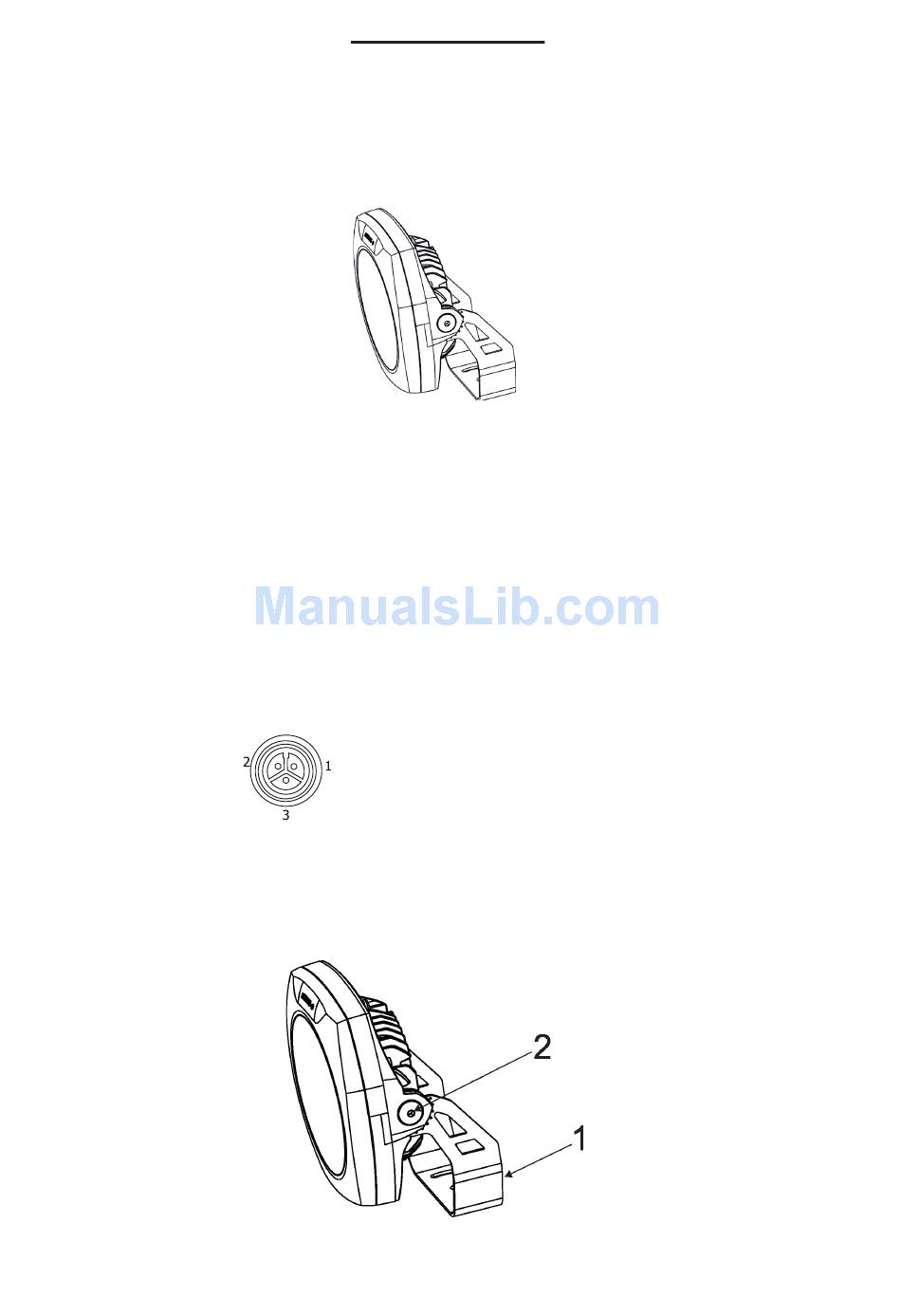

Wiring of the Chogori CGRBB-03BMMA-SL8001 (male)
The ArcSource Outdoor 16 MC Pixel can be arranged in any position orientation. LED module body is mounted
on a steel "U" bracket (1) for tilt adjustment, after adjusting desired inclination, secure the tilt lock (2) by means
of the Allen key 6. For fastening the unit on the wall (truss etc) serves 3 apertures in the U-bracket
User instructions
ArcSource Outdoor 16 MC Pixel
1 GND (blue wire)
2 +48V (red wire)
3 Data (orange wire)
1
