Dynojet POWER COMMANDER Installation Instructions Manual page 3

FIG.A
FIG.B
FIG.C
18-023 www.powercommander.com

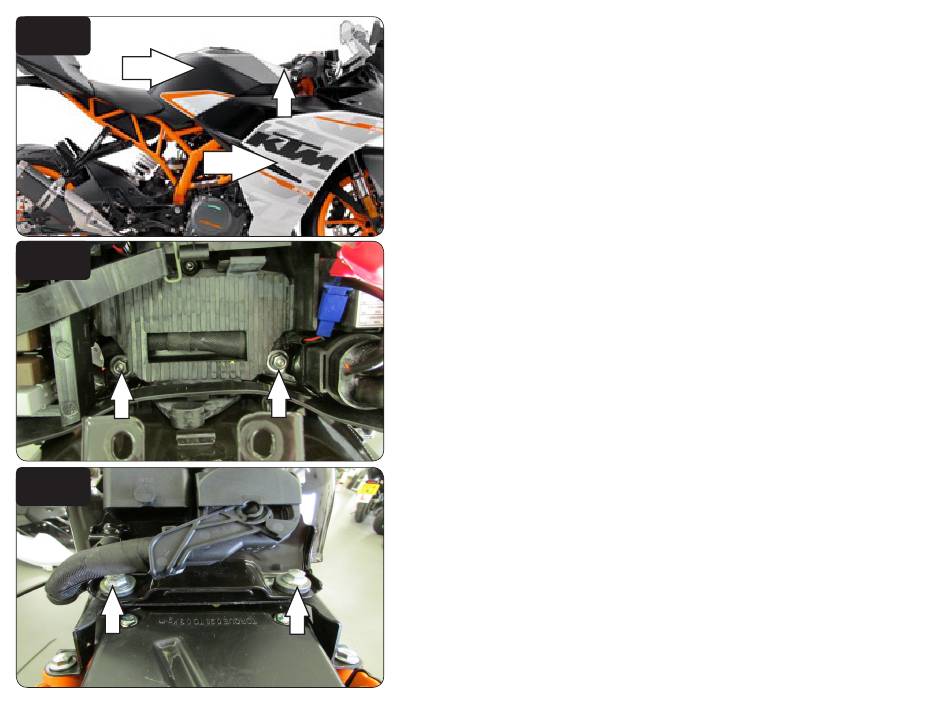

1 Remove the battery access cover, fuel tank cover, and side panels (Fig. A).
4 Remove the battery.
5 To remove the fuel tank remove the two bolts at the bottom of the battery box
(Fig. B).
6 Remove the 2 bolts at the rear of the fuel tank (Fig. C).
7 Unplug the wiring harness from the ECU and remove the fuel tank.
17-18 RC/Duke 390 - PCV - 3
