Parts List
1
Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
2
Velcro
Strip
®
1
Alcohol Swab
1
Posi tap
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
i630-411
www.powercommander.com

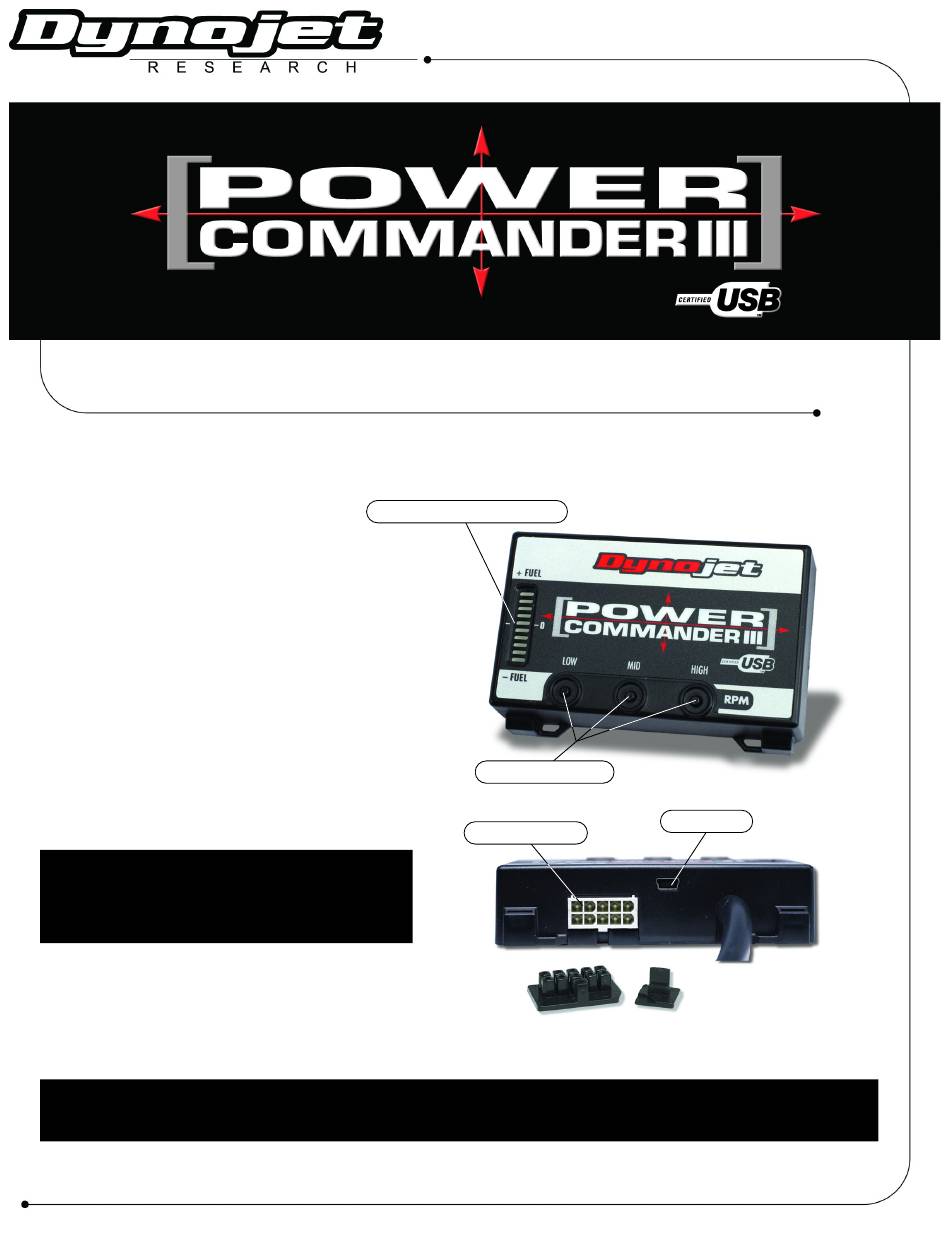

2008 Arctic Cat 700 H1
Installation Instructions

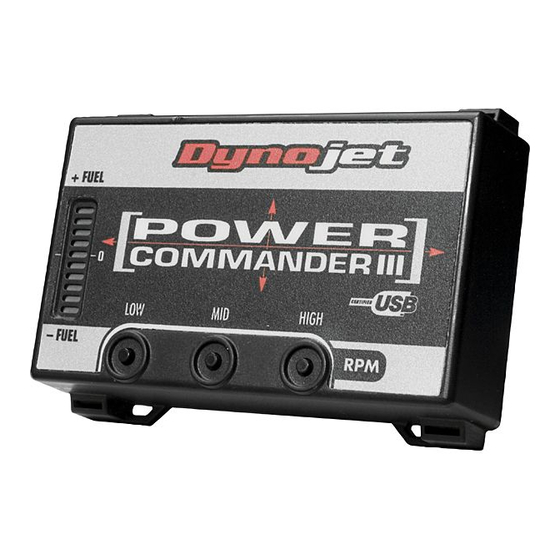

Button Adjustment Display
Faceplate Buttons
Expansion Port
2008 Arctic Cat 700 H1 - PCIII USB - 1
USB Port
