Parts List
1

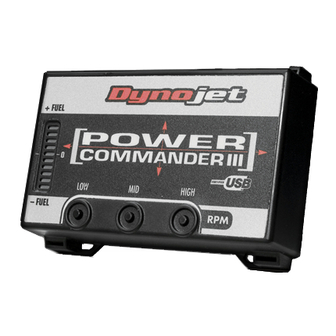

Power Commander
1
USB Cable
1
CD-ROM
1
Installation Guide
1
Power Adapter
2
Power Commander Decals
2
Dynojet Decals
1
Velcro
Strip
®
1
Alcohol Swab
1
Wire tap
The ignition MUST be turned
OFF before installation!
You can also download the Power
Commander software and latest maps
from our web site at:
www.powercommander.com
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com
i902-411
i902-411
www.powercommander.com
2000-2003 Aprilia Mille
Installation Instructions
Button Adjustment Display
Faceplate Buttons
Expansion Port
2000-2003 Aprilia Mille - PCIII USB - 1
USB Port
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Power Commander
Summary of Contents for Dynojet Power Commander
-
Page 1: Parts List
Commander software and latest maps from our web site at: www.powercommander.com PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com i902-411 i902-411 www.powercommander.com 2000-2003 Aprilia Mille - PCIII USB - 1... - Page 2 Remove the seat. PCIII connectors Lift up the front of the fuel tank. Disconnect the wiring harness from the injector on the left hand side of the bike by sqeez- ing the connector. Connect one pair of the leads Stock connector from the PCIII in-line of the stock harness and throttle body (Fig.A).
- Page 3 Attach the ground wire from the PCIII to the negative side of the battery (Fig. D). Ground wire from PCIII Install the PCIII in the rear trunk area of the bike (Fig. E) using the supplied velcro. Make sure to clean both surfaces with alco- hol first.
