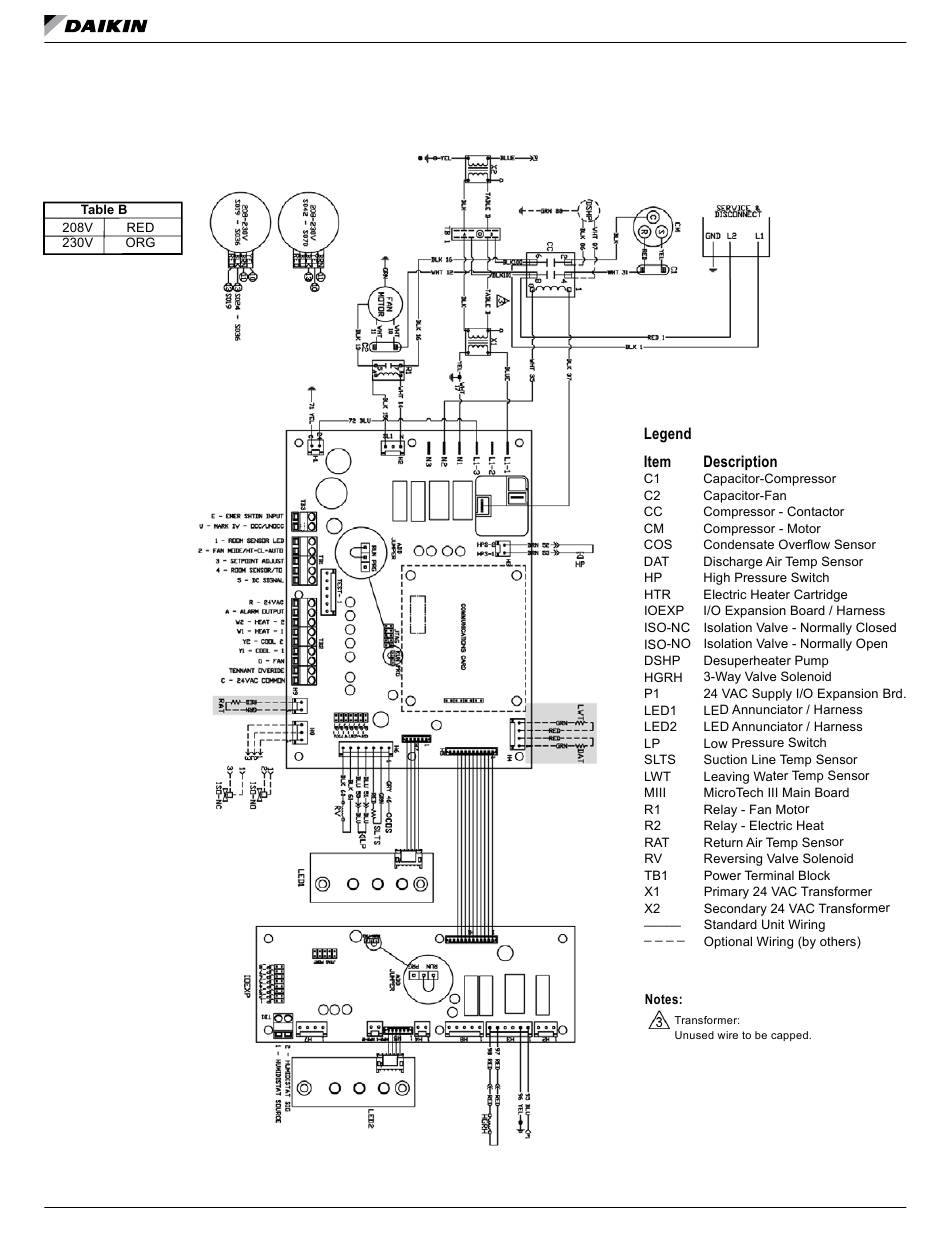

MicroTech III Unit Controller with PSC Motor, Desuperheater and I/O Expansion
Module for Hot Gas Reheat Control (Unit Sizes 019-070) 208/230/60/1-Phase
Drawing No. 669007101A
Wiring diagrams are typical. For the latest drawing
version refer to the wiring diagram located on the inside
of the controls access panel of the unit.
Note: Gray tinted areas in the wiring diagram: Units with factory installed communication module include Discharge Air Temperature (DAT) and
Return Air Temperature (RAT) sensors shipped loose and are field installed. The Leaving Water Temperature (LWT) sensor is factory installed.
OM 931-6 • MicroTech III Unit Controller for WSHP
