Interface Description

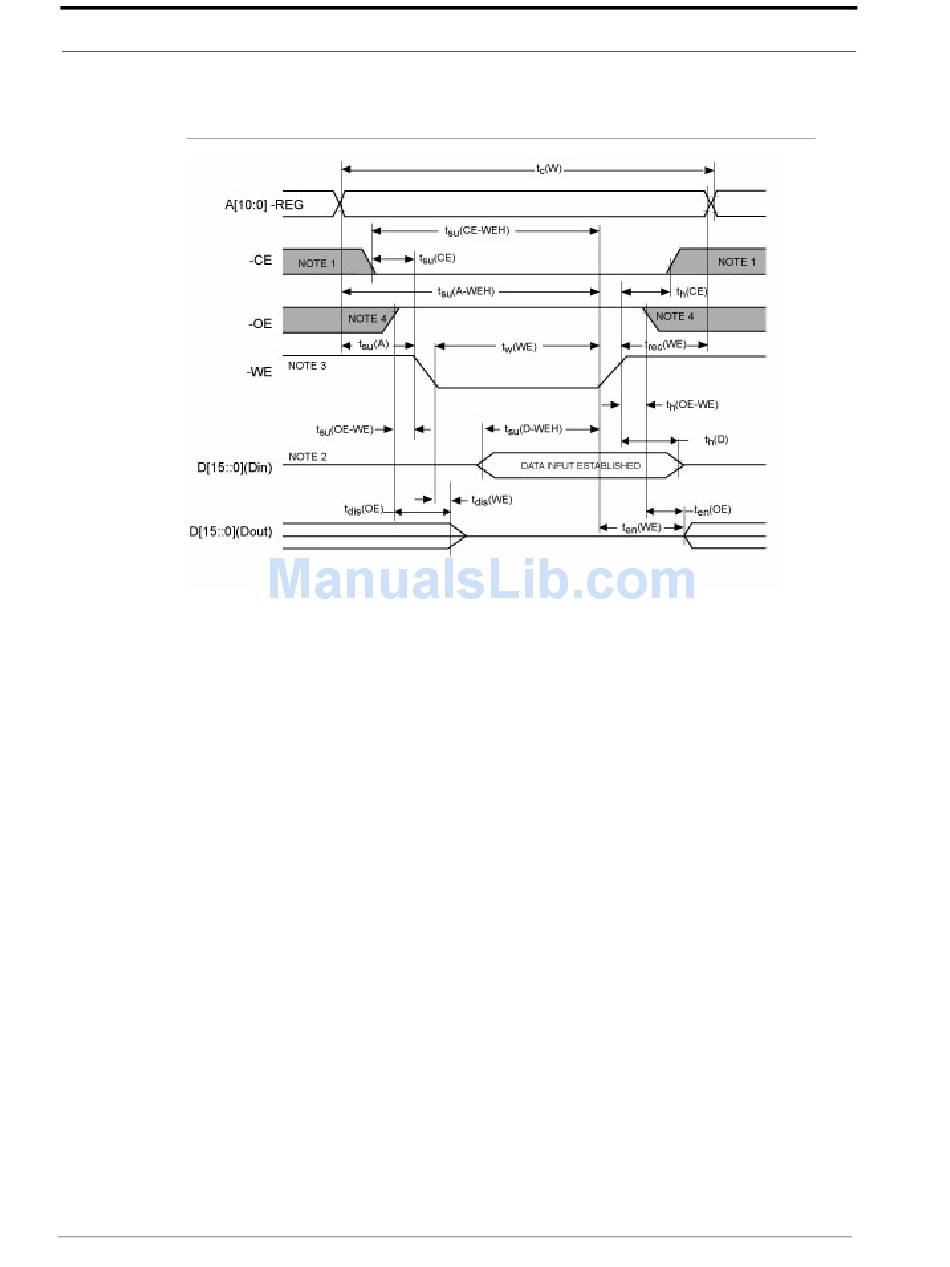

Figure 3-4 Common and Attribute Memory Write Timing Diagram
1:
NOTE
2:
NOTE
3:
NOTE
4:
NOTE
02/07, Rev. 12.0
Shaded areas may be high or low.
When the data I/O pins are in the output state, no signals shall be applied to
the data pins (D[15::0]) by the host system
May be high or low for write timing, but restrictions on -OE from previous
figures apply.
SanDisk CompactFlash Memory Cards do not assert the -WAIT signal.
3-14
