12.9 AUTOMATIC SHUT-OFF

Each machine and any accessories which are wired
into the electrical system are controlled by the start-stop
buttons. The machine will automatically shut off when the

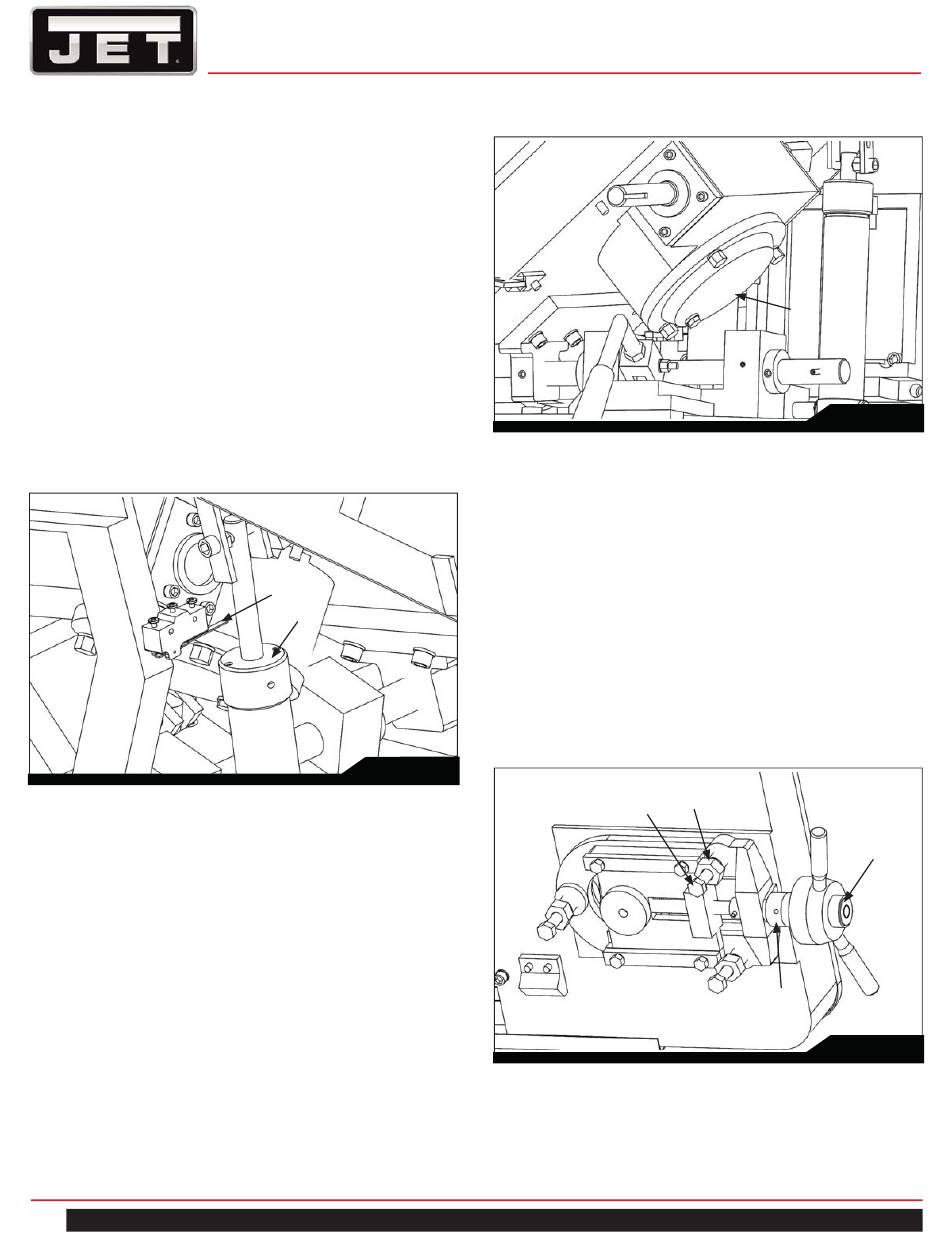

cut is completed. The lever (A) Fig. 13, for the automatic
shut-off, contacts the top of the hydraulic cylinder (B) and
shuts off the machine.
LUBRICATION OF HYDRAULIC SYSTEM
If it is necessary to fi ll the hydraulic cylinder with oil,
proceed as follows:
1. Lift the saw frame slightly (about 15°), place a block
underneath the saw frame to hold it.
2. Turn cover (B) shown in Fig. 13 counterclockwise,
then fi ll hydraulic oil or equivalent until it is full.

12.10 GEAR CASE

After the fi rst 50 hours of use the gear case should be
drained and refi lled. Remove drain plug (A) Fig. 14 drain
all of the oil out of the gearbox. Remove oil fi ller plug
located underneath the right wheel and fi ll the gear case
with 850ml of multi-function gearbox oil or equivalent.
12
A
B
Fig. 13
12.11 ADJUST BLADE TENSION & BLADE
TRACKING ADJUSTMENT
Blade tension has been preset at the factory; however
if the tension should need to be increased, this can be
accomplished by turning the handwheel (A) clockwise until
the tension limiter (B) slips. Please note that one does not
need to press the handwheel, simply turn. For purposes
of proper blade tracking, the back of th blade should be
located against the fl ange of the blade wheel. If it is not,
the tracking can be adjusted by loosening the screw (C)
in Fig. 15, and adjusting screw (D) in Fig. 15, until the
blade is tracking properly, When adjustment is complete,
retighten screw (C).
C
A
Fig. 14
D
B
Fig. 15
Horizontal Band Saw
