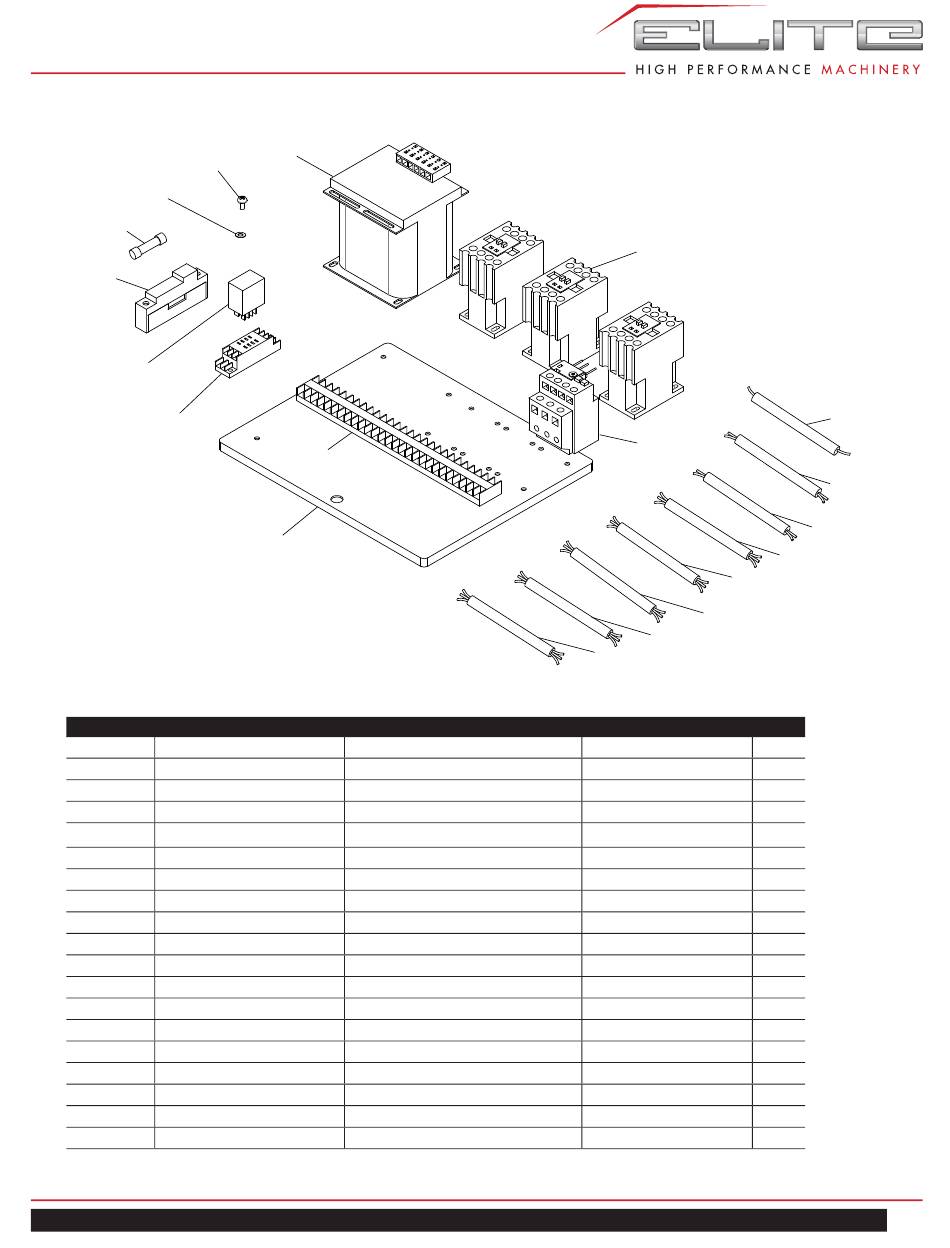

ELECTRICAL BOX ASSEMBLY — EHB 1018VM
308-7
308-8
308-2-1
308-2
308-3
308-4
PARTS LIST ELECTRICAL BOX — EHB 1018VM
Index No. Part No.
308-1 EHB1018VM-308-1
308-2 EHB1018VM-308-2
308-2-1 EHB1018VM-308-2-1
308-3 EHB1018VM-308-3
308-4 EHB1018VM-308-4
308-5 EHB1018VM-308-5
308-6 EHB1018VM-308-6
308-7 EHB1018VM-308-7
308-8 TS-0680011
308-9 EHB1018VM-308-9
308-10 EHB1018VM-308-10
308-11 EHB1018VM-308-11
308-12 EHB1018VM-308-12
308-13 EHB1018VM-308-13
308-15 EHB1018VM-308-15
308-16 EHB1018VM-308-16
308-17 EHB1018VM-308-17
308-18 EHB1018VM-308-18
308-19 EHB1018VM-308-19
EHB-1018VM | EHB-1018VMH
308-1
308-5
308-6
Description
Transformer
Fuse Blocks
Fuse
Relay
Relay Socket
Terminal Block
Electrical Plate
Round Head Screw
Washer
Power Cable
Control Wire
Ground Cable
Overload Relay (4.5-6.5A)
Magnetic Contactor
Motor Cable
Pump Cable
Hydraulic Cable
Limit Switch Cable
Limit Switch Cable
308-13
308-12
308-16
308-15
308-10
308-9
Size Qty.
230/460/12/24/110V 1
32A 600V 1
5A 1
250V 10A 1
1
9
1
3/16" x 3/8" 54
3/16" 54
1
1
Yellow/Green 1
RHU-10K1 1
CU-11 110V 3
1
1
1
1
1
308-11
308-19
308-18
308-17
25
