1, Model: JTS-600X, JTS-600XL
2, Stock No. : 10000070XM/XT
3, Brand: JET
4, Description of products (with photos)
Heavy duty steel machine table completely
galvanized to avoid corrosion.
Separate hand wheel for blade tilt up to 45°
with adjustable stop at 0°.
Powerful induction motor with break to stop the
saw blade in seconds.
A dia. 100mm dust port and upper dust
collection ensure best working conditions.
Anodized aluminium table insert for precise
work piece support and reduced friction.
A sliding table for max 1250mm crosscut and a
right table extension are on option.
5.
Supplier
Qingdao Capital Resource Electric Co. LTD
Supplier's model name
6.
QCR Model: TS250, Ta250B Table Saw
Supplier's CE declaration of conformity with latest directives and EN
7.
standards (including comparison of supplier's model to JPW's model)
JTS-600X & JTS-600XL TCF
Table Saw
10000070XLM/XLT

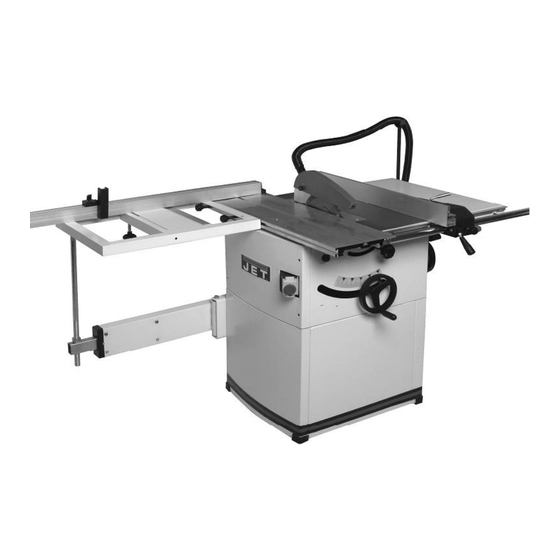

JTS-600X PHOTO
JTS-600XL
