Operating Instructions and Parts Manual
Structural Dual-Miter Band Saw, 18"
Model ECB-1833DMEVS
JET
®
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Ph.: 855-336-4032
Document No. M-891170
Edition 1 12/2020
Copyright © 2020 JET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite ECB-1833DMEVS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet Elite ECB-1833DMEVS

Summary of Contents for Jet Elite ECB-1833DMEVS

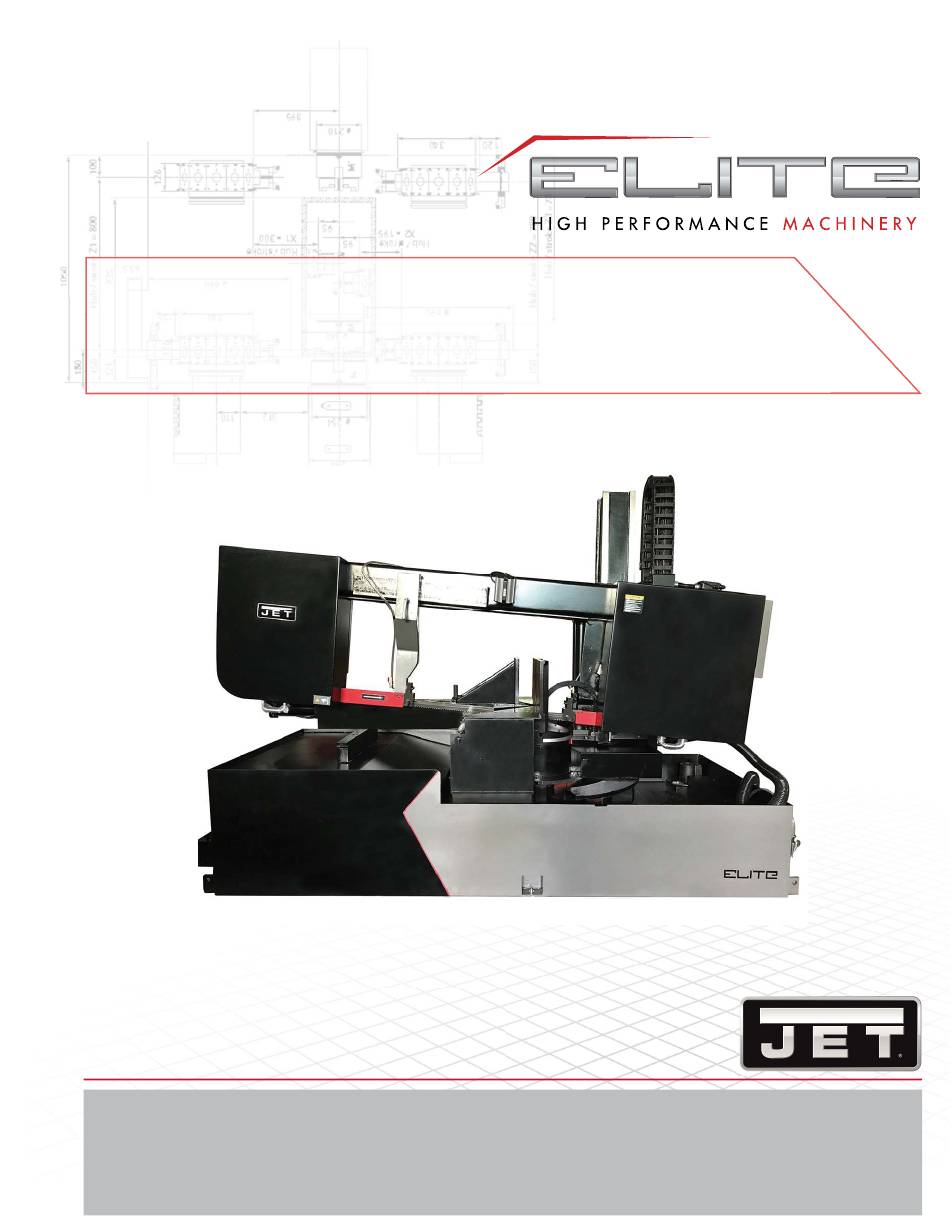

  • Page 1 Operating Instructions and Parts Manual Structural Dual-Miter Band Saw, 18” Model ECB-1833DMEVS ® 427 New Sanford Road LaVergne, Tennessee 37086 Document No. M-891170 www.jettools.com Edition 1 12/2020 Ph.: 855-336-4032 Copyright © 2020 JET...

  • Page 2: Warranty And Service

    Technical Service by calling 1-855-336-4032, 8AM to 5PM CST, Monday through Friday. WARRANTY PERIOD The general warranty lasts for the time period specifi ed in the literature included with your product or on the offi cial JET branded website, jettools.com.
  • Page 3 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. JET sells through distributors only. The specifi cations listed in JET printed materials and on offi cial JET website are given as general information and are not binding. JET reserves the right to eff ect at any time, without prior notice, those alterations to parts, fi...

  • Page 4: Table Of Contents

    2.0 TABLE OF CONTENTS 1.0 WARRANTY AND SERVICE ............................2 2.0 TABLE OF CONTENTS ..............................4 3.0 IMPORTANT SAFETY INSTRUCTIONS ........................5 4.0 INTRODUCTION ................................7 5.0 SPECIFICATIONS ................................8 6.0 UNCRATING AND ASSEMBLY ............................8 7.0 INSTALLATION ................................9 8.0 COOLANT ..................................9 9.0 ELECTRICAL CONNECTIONS ..........................10 10.0 CONTROLS................................10 10.1 AUXILIARY COOLANT HOSE..........................

  • Page 5: Important Safety Instructions

    5. Do not use this band saw for other than its intended use. If used for other purposes, JET ®...
  • Page 6 28. Maintain proper adjustment of blade tension, blade guides and thrust bearings. 29. Turn off the machine and disconnect from power before cleaning. Use a brush to remove chips or debris — do not use bare hands. 30. Do not use compressed air to clean the machine. This creates flying metal debris and may wedge pieces into crevices of the machine.

  • Page 7: Introduction

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www. jettools.com. Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.

  • Page 8: Specifications

    The specifi cations in this manual were current at time of publication, but because of our policy of continuous improve- ment, JET reserves the right to change specifi cations at any time and without prior notice, without incurring obligations. Horizontal Band Saw...

  • Page 9: Uncrating And Assembly

    6.0 UNCRATING AND ASSEMBLY Note: Read and understand the entire manual before attempting setup or operation. 1. Finish uncrating the saw and inspect for damage. Should any have occurred, contact your local distributor. 2. Remove all bolts attaching machine to shipping base. 3.

  • Page 10: Electrical Connections

    9.0 ELECTRICAL CONNECTIONS Hydraulic Start Button (F) - Press this fi rst to activate all other functions on the panel. Power Indicator Light (G) – Illuminated whenever machine is connected to power. Electrical connections must be made by a qualifi ed electrican in compliance with all relevant codes.

  • Page 11: Auxiliary Coolant Hose

    10.1 AUXILIARY COOLANT HOSE 15. Jog the blade “on” and “off ” to be sure the blade is in place and tracking properly. The saw is equipped with an auxiliary coolant hose and nozzle. This can be used when a larger fl ood of coolant 16.

  • Page 12: Adjusting Blade Guides

    11.4 ADJUSTING BLADE GUIDES The saw blade should also ride between the two roller bearings (B) and (C) and the carbide blocks (E). Proper adjustment of blade guide bearings is critical to effi cient operation of the saw. The band saw is shipped Use the adjusting screw (A) to lightly press the carbide with the blade tensioned and blade guides properly set.

  • Page 13: Vise Adjustment

    11.7 VISE ADJUSTMENT the head from rising higher than 35mm (1.8in.) from the workpiece, where it awaits control panel input for the next The vise system is equipped with knurled pin (A) and vise sequence. This results in greater effi ciency of time and rack with 6 holes.

  • Page 14: Blade Break Sensor

    11.11 BLADE TENSION & TRACKING Turn handle (A, Fig. 11-8) clockwise to tighten the blade, or left to detension it for blade replacement. Blade tension has been preset by the manufacturer for the supplied blade. Tension is shown in the gauge above the handle;...

  • Page 15: Powered Chip Brush

    13.0 GENERAL OPERATING 11.12 POWERED CHIP BRUSH PROCEDURE The wire brush is driven by the motor via the belt. Keep 1. Adjust left blade guide bracket as close as possible to the brush in contact with the blade to prevent excess the left vise jaw, without causing obstruction.

  • Page 16: User-Maintenance

    14.4 COOLANT Periodically clean the sump in the machine base to extend JET off ers a bio-degradable, concentrated fl ood coolant pump life and promote effi cient cutting. Change coolant (not provided) formulated for band saws, lathes, and regularly at intervals recommended by coolant supplier.

  • Page 17: Machine Storage

    14.7 BELT ADJUSTMENT If pulley slips or generates noise during operation, adjust the tension knob (Fig. 14-3) clockwise to tighten the belt. Fig. 14-2 If future adjustment becomes necessary, turn knob A counterclockwise to reduce pressure. See Fig. 14-2. NOTE: If workpiece is thin, it is preferable to use a jig Fig.

  • Page 18: Maintenance Schedule

    14.9 MAINTENANCE SCHEDULE If routine maintenance is neglected, the result will be premature wear and poor performance. DAILY: • General cleaning of machine; remove accumulated shavings. (Note: Do not use compressed air.) • Clean coolant drain hole to avoid excess fl uid buildup in the trough. •...

  • Page 19: Replacement Parts

    15.0 REPLACEMENT PARTS — ECB-1833DMEVS Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-855-336-4032, Monday through Friday, 8 a.m. to 5 p.m. CST. Having the Model Number and Serial Number of your machine available when you call will allow us to serve you quickly and accurately.
  • Page 20 BASE ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 21 PARTS LIST BASE ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-A01 Base ECB1833DMEVS-A02 Coolant Pump 1/8HP, 230/ 460V 3Ph 2P, 220L ECB1833DMEVS-A03 Wires Sheet Metal Cover ECB1833DMEVS-A04 Cooling Fan ECB1833DMEVS-A05 Table Parallel Block ECB1833DMEVS-A06 Rotary Arm ECB1833DMEVS-A07 Adjustable Parallel Block ECB1833DMEVS-A08 Front Auxiliary frame ECB1833DMEVS-A09 Rear Auxiliary frame ECB1833DMEVS-A10 Front Top Auxiliary Fram...
  • Page 22 SWIVEL SEAT ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 23 PARTS LIST SWIVEL SEAT ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-B01 Center Fixed Plate Of Turret ECB1833DMEVS-B02 Turret Base ECB1833DMEVS-B03 Turret Shaft ECB1833DMEVS-B04 Turret Shaft Bushing ECB1833DMEVS-B05 Top Turret Block SPB 809640 Self Lubrication Bearing SPB 809640 BB-80105 Thrust Bearing 80105...
  • Page 24 Index No. Part No. Description Size Qty. ECB1833DMEVS-B50 Brake Plate 1018T/1220T TS-0561052 Hex Nut W1/2'' ECB1833DMEVS-B52 Oil Hose Fitting 1/4''PT x1/4''TH ECB1833DMEVS-B53 Oil Hose 1/4" x 1200 x B.L ECB1833DMEVS-B55 Top Wires Collect Box ECB1833DMEVS-B56 Cable Organizer ECB1833DMEVS-B57 Socket Head Cap Screw W3/16'' x 1/2'' ECB1833DMEVS-B58 Washer 3/16''...
  • Page 25 SLIDE ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-D01 Column ECB1833DMEVS-D02 Front Column Sliding ECB1833DMEVS-D03 Rear Column Sliding Cover ECB1833DMEVS-D04 TS-0720131 Lock Washer 5/8" ECB1833DMEVS-D06 Socket Head Cap Screw W5/8" x 2" ECB1833DMEVS-D07 Socket Head Cap Screw W5/8"...
  • Page 26 SAW FRAME ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 27 PARTS LIST SAW FRAME ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-E01 Saw Bow ECB1833DMEVS-E02 Driving Wheel Gasket ECB1833DMEVS-E03 Driving Wheel TS-0209081 Socket Head Cap Screw W3/8'' x 1-3/4'' ECB1833DMEVS-E05 Idler Wheel BB30210 Tapper Roller Bearing 30210 ECB1833DMEVS-AW10 Star Washer AW10...
  • Page 28 GEAR BOX ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 29 PARTS LIST GEAR BOX ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-F01 Gear Box ECB1833DMEVS-F02 Shaft ECB1833DMEVS-F03 Worm Gear BB30214 Tapper Roller Bearing 30214 ECB1833DMEVS-F05 Oil Seal 709012 ECB1833DMEVS-AW14 Star Washer AW14 ECB1833DMEVS-AN14 Precision Nut AN14 ECB1833DMEVS-F08 Gear Box Cover TC17020015 Oil Seal...
  • Page 30 MOVEABLE SEAT ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 31 PARTS LIST MOVEABLE SEAT ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-G01 Moveable Table ECB1833DMEVS-G02 Wear-Resistant Plate ECB1833DMEVS-G03 Vise Rack ECB1833DMEVS-G04 Moveable Vise ECB1833DMEVS-G05 Oil Hydraulic Cylinder Fixed bracket ECB1833DMEVS-G06 Vise Fixed Pin ECB1833DMEVS-G07 Oil Hydraulic Cylinder Set for Vise Clamp ECB1833DMEVS-G08 Oil Hydraulic Cylinder Set for Moveable Table ECB1833DMEVS-G09...
  • Page 32 LEFT SIDE GUIDE ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 33 PARTS LIST LEFT SIDE GUIDE ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-H01 Slide Plate ECB1833DMEVS-H02 Left Bearing Guide ECB1833DMEVS-H03 Lock Block ECB1833DMEVS-LBGA Left Bearing Guide Assembly Index no.5-18 ECB1833DMEVS-H05 Bearing Guide Bracket - left ECB1833DMEVS-H06 Top Carbide Guide - left ECB1833DMEVS-H07 Socket Head Cap Screw W3/16"...
  • Page 34 RIGHT SIDE GUIDE ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 35 PARTS LIST RIGHT SIDE GUIDE ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-I01 Bearing Guide Block Seat ECB1833DMEVS-I02 Bearing Guide Block ECB1833DMEVS-H09 Lock Shaft ECB1833DMEVS-H08 Lock Knob ECB1833DMEVS-H10 Disc Spring ECB1833DMEVS-I06 Top Carbide Guide, right ECB1833DMEVS-I07 Socket Head Cap Screw W3/16"...
  • Page 36 MOTOR ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-J01 Upper Bracket ECB1833DMEVS-J02 Middle Bracket ECB1833DMEVS-J03 Buttom Bracket ECB1833DMEVS-J04 Tension Knob ECB1833DMEVS-J05 Flat Washer 1/2" ECB1833DMEVS-J06 Motor Support Plate ECB1833DMEVS-J07 Main Motor 7.5HP/ 230/460V, 3Ph ,4P TS-0208081 Socket Head Cap Screw W5/16"...
  • Page 37 PULLEY ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-K01 PulleyBox- Buttom ECB1833DMEVS-K02 Pulley Box-Cover ECB1833DMEVS-K03 Lock Knob ECB1833DMEVS-K04 Flat Washer 3/16'' ECB1833DMEVS-I07 Socket Head Cap Screw W3/16" x 5/8" ECB1833DMEVS-K06 Motor pulley ECB1833DMEVS-K07 Gear Box pulley VB-A37 V Belt ECB-1833DMEVS...
  • Page 38 SLIDING TOUCH BAR ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-L01 Rapid Down Feed Measuring Rod ECB1833DMEVS-L02 Self- Lubrication Bearing CB1220 ECB1833DMEVS-L03 Contour Screw M12 x 45 TS-0051071 Hex Cap Screw W5/16'' x 1-1/2'' TS-0570021 Hex Nut W5/16'' Horizontal Band Saw...
  • Page 39 BLADE TENSIONER ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-N01 Blade Tension Mechanism Set Index no.2-9 ECB1833DMEVS-N02 Blade Tension Bracket ECB1833DMEVS-N03 Blade Tension Sliding Block ECB1833DMEVS-N04 Slider Fixed Plate ECB1833DMEVS-N05 Idler Shaft TS-0208061 Socket Head Cap Screw W5/16'' x 1'' TS-0208072 Socket Head Cap Screw...
  • Page 40 WIRE BRUSH ASSEMBLY — ECB-1833DMEVS Horizontal Band Saw...
  • Page 41 PARTS LIST WIRE BRUSH ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-M01 Driven Brush Wheel set Index No 2-12 ECB1833DMEVS-M02 Pulley ECB1833DMEVS-M03 Shaft ECB1833DMEVS-M04 Double Round Key 5 x 5 x 20 ECB1833DMEVS-M05 Socket Set Screw W3/16'' x 5/16'' ECB1833DMEVS-M06 Fixed Plate ECB1833DMEVS-M07...
  • Page 42 CONTROL BOX ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-O01 Indicator Lamp ECB1833DMEVS-O02 Green Push Button -light ECB1833DMEVS-O03 Red Push Button ECB1833DMEVS-O04 Select Switch ECB1833DMEVS-O05 Black Push Button ECB1833DMEVS-O06 Valve Regulator Knob ECB1833DMEVS-O07 Blade Speed Knob ECB1833DMEVS-O08 Handle ECB1833DMEVS-O09 Control Panel Box...
  • Page 43 HYDRAULIC UNIT ASSEMBLY — ECB-1833DMEVS Index No. Part No. Description Size Qty. ECB1833DMEVS-P01 Oil Tank ECB1833DMEVS-P02 Oil Tank Cover ECB1833DMEVS-P06 Oil level Gauge ECB1833DMEVS-P07 Oil Motor ECB1833DMEVS-P10 Oil Pump ECB1833DMEVS-F27 Plug ECB1833DMEVS-P03 Reduce Valve Regulator ECB1833DMEVS-P05 Check Valve ECB1833DMEVS-P04 Solenoid Valve ECB1833DMEVS-P08 Oil Circuit Board ECB1833DMEVS-P09...
  • Page 44 ELECTRICAL BOX DIAGRAM — ECB-1833DMEVS Horizontal Band Saw...
  • Page 45 PARTS LIST ELECTRICAL BOX — ECB-1833DMEVS Index No. Part No. Description Size Qty. VFDS1-INV Inverter S1 230V VFDS1-INV460 Inverter S1 460V EHB1833DMEVS-TC1 Transformer 200VA EHB1833DMEVS-QS1 Door Switch EHB1833DMEVS-FU1-2 Fuse 4A/230V EHB1833DMEVS-FU1-4 Fuse 2A/460V EHB1833DMEVS-FU2-2 Fuse 4A/230V EHB1833DMEVS-FU2-4 Fuse 2A/460V EHB1833DMEVS-FU3 Fuse EHB1833DMEVS-FU4 Fuse...

  • Page 46: Wiring Diagram

    16.0 WIRING DIAGRAM Horizontal Band Saw...
  • Page 47 ECB-1833DMEVS...
  • Page 48 Horizontal Band Saw...
  • Page 49 MANUAL/AUTO UP DOWN SWITCH TABLE FOR BACKWARD SWITCH COOLANT PUMP SWITCH ANGLE +/– SWITCH VISE CLAMP OPEN SWITCH EMERGENCY STOP BLADE START SWITCH BLADE STOP SWITCH HYDRAULIC START SWITCH ANGLE RAPID SWITCH BLADE BREAK SENSOR LOWER END LIMIT SWITCH UPPER LIMIT SWITCH TABLE FORWARD LIMIT SWITCH TABLE BACKWARD LIMIT SWITCH ANGLE+ LIMIT SWITCH...
  • Page 50 Horizontal Band Saw...
  • Page 51 NOTES ECB-1833DMEVS...
  • Page 52 Horizontal Band Saw...

This manual is also suitable for:

891170891175

Table of Contents
