Jet EHB-916V Operating Instructions And Parts Manual

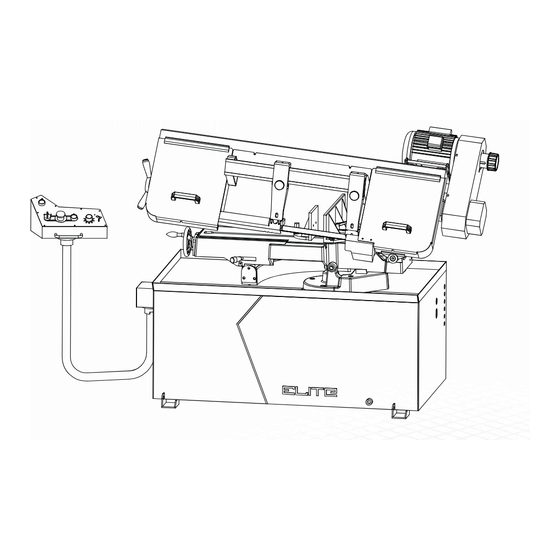

Horizontal band saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

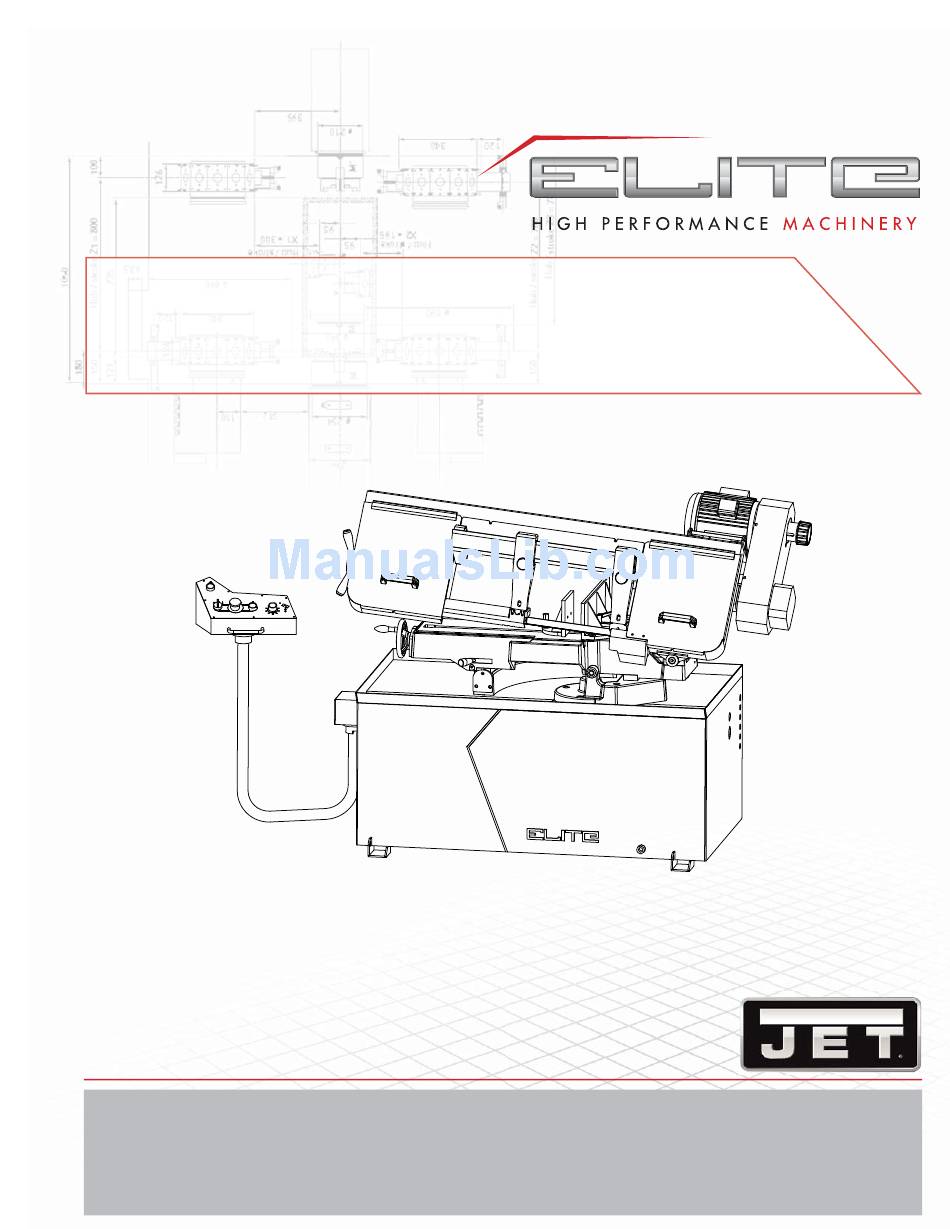

Operating Instructions and Parts Manual
Horizontal Band Saw
Models EHB-916V | EHB-1018V
®
JET
427 New Sanford Road
LaVergne, Tennessee 37086
www.jettools.com
Ph.: 855-336-4032
This .pdf document is bookmarked
Part No. M-891050
REV C 11/2016
Copyright © 2016 JET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHB-916V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet EHB-916V

Summary of Contents for Jet EHB-916V

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal Band Saw Models EHB-916V | EHB-1018V ® 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-891050 www.jettools.com REV C 11/2016 Ph.: 855-336-4032 Copyright © 2016 JET...

  • Page 2: Warranty And Service

    Technical Service by calling 1-855-336-4032, 8AM to 5PM CST, Monday through Friday. WARRANTY PERIOD The general warranty lasts for the time period specifi ed in the literature included with your product or on the offi cial JET branded website, jettools.com.
  • Page 3 THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. JET sells through distributors only. The specifi cations listed in JET printed materials and on offi cial JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fi...

  • Page 4: Table Of Contents

    2.0 TABLE OF CONTENTS 1.0 WARRANTY AND SERVICE ............................2 2.0 TABLE OF CONTENTS ..............................4 3.0 SAFETY WARNINGS ..............................5 4.0 INTRODUCTION ................................6 5.0 SPECIFICATIONS .................................6 6.0 UNCRATING AND ASSEMBLY .............................7 7.0 INSTALLATION ................................7 8.0 ELECTRICAL CONNECTIONS .............................7 9.0 CONTROLS...................................8 10.0 AUXILIARY COOLANT HOSE.............................8 11.0 PRIOR TO OPERATION ..............................8 12.0 OPERATING CONTROLS AND ADJUSTMENTS .......................8 12.1 REMOVING AND INSTALLING THE BLADE ......................8...

  • Page 5: Safety Warnings

    ® Do not use this band saw for other than its intended use. If used for other purposes, JET , disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.

  • Page 6: Introduction

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www. jettools.com. Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.

  • Page 7: Uncrating And Assembly

    Do not which the saw is wired. use gasoline, paint thinner, mineral spirits, etc. These To convert the EHB-916V from 115V to 230V, the following may damage painted surfaces. items will have to be changed: 5.

  • Page 8: Controls

    11.0 PRIOR TO OPERATION 9.0 CONTROLS 1. Check that blade tooth direction matches diagram on Refer to Figure 2. blade guides. Power Indicator Light (A) – lit whenever machine is 2. Check to see that blade is properly seated on wheels running.

  • Page 9: Adjusting Blade Guide Brackets

    BOTH WHEELS. THIS IS VERY IMPORTANT. 10. When you are sure the back of the blade is against the wheel fl anges of both wheels and properly insert- Fig. 6 ed into the guides, fi nish putting tension on the blade. EHB-916V | EHB-1018V...

  • Page 10: Adjusting Blade Guide Roller Bearings

    12.3 ADJUSTING BLADE GUIDE ROLLER 12.4 CHANGING BLADE SPEED BEARINGS The back of the blade (A) Fig. 7, should ride against the back-up support bearing (B) which is positioned at an Only adjust speed with power on and blade turning. angle so as to provide greater bearing support, eliminating bearing wear and extending blade life.

  • Page 11: Bow Weight Adjustment

    (A) Fig.11, the desired distance away from the blade. The stop may be repositioned by loosening screw (B) and moving the rod (C) accordingly. To move the stop block (A) out of the way simply push it to the down position. Fig. 12 EHB-916V | EHB-1018V...

  • Page 12: Automatic Shut-Off

    12.9 AUTOMATIC SHUT-OFF The machine and any accessories which are wired into the electrical system are controlled by the start-stop buttons. The machine will automatically shut off when the cut is completed. The lever (A) Fig. 13, for the automatic shut-off contacts the top of the hydraulic cylinder (B) and shuts off the machine.

  • Page 13: Maintenance

    13.0 MAINTENANCE 15.0 REPLACEMENT PARTS — EHB-916V and EHB-1018V Replacement parts are listed on the following pages. To order parts or reach our service department, call Before doing maintenance on the machine, discon- 1-855-336-4032, Monday through Friday (see our nect it from the electrical supply by pulling out the website for business hours, www.jettools.com).
  • Page 14 SAW STAND AND BED ASSEMBLY — EHB-916V 79-1 79-5 72-1 79-2 79-3 79-4 72-2 56-1 54-1 57-1 90-1 78-2 78-1 Horizontal Band Saw...
  • Page 15 PARTS LIST SAW STAND AND BED — EHB-916V Index No. Part No. Description Size Qty. EHB916V-64 Fitting EHB916V-65 Tubing 5/16" × 65". EHB916V-66 Valve EHB916V-67 Feed Knob EHB916V-101 Cable Glands PG-11 TS-0209071 Socket Head Cap Screw 3/8 × 1-1/2" EHB916V-191...
  • Page 16 Index No. Part No. Description Size Qty. TS-0209081 Socket Head Cap Screw 3/8"-16T × 1-3/4" 3 TS-0680041 Flat Washer 3/8" TS-0050031 Hex Cap Screw 1/4-20T × 3/4" TS-0680021 Flat Washer 1/4" TS-0271051 Set Screw 3/8"-16 × 1/2" EHB916V-241 Strap TS-0680021 Flat Washer 1/4"...
  • Page 17 5/16" TS-0051051 Hex Head Screw 5/16"-18 ×1" EHB916V-289 Socket Head Button Screw 3/16" x 3/8" EHB916V-300 Nameplate EHB916V-301 Start Switch EHB916V-302 Emergency Switch EHB916V-303 Selection Switch EHB916V-305 Indication Light For Power EHB916V-306 Control Box 90-1 EHB916V-306-1 Tube EHB-916V | EHB-1018V...
  • Page 18 SAW ARM ASSEMBLY — EHB-916V Horizontal Band Saw...
  • Page 19 PARTS LIST SAW ARM — EHB-916V Index No. Part No. Description Size Qty. EHB916V-01 Handwheel EHB916V-01-1 Handwheel handle EHB916V-02 Collar EHB916V-03 Shaft EHB916V-04 Bracket EHB916V-05 Slide EHB916V-06 EHB916V-07 Collar EHB916V-08 Roll pin M5x30 EHB916V-08-1 Roll pin M5x40 TS-0081031 Hex Cap Screw...
  • Page 20 Index No. Part No. Description Size Qty. TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" TS-0561011 Hex Nut 1/4” EHB916V-47 SB-3/16 Steel Ball TS-0270061 Set Screw 5/16"-18 × 5/8" TS-0207021 Socket Head Cap Screw 1/4"-20 × 5/8" BB-6004 Bearing 6004 EHB916V-52 Input Shaft BB-3205...
  • Page 21 Flat Washer 3/8" BB6200ZZ Bearing 6200 ZZ EHB916V-148 Special Screw M10 x 30 BB6200ZZ Bearing 6200 ZZ EHB916V-150 Special Screw EHB916V-151 Special Screw EHB916V-153 Adjustable Handle EHB916V-154 Guide Cover 154-1 EHB916V-154-1 Screw 154-2 TS-0680011 Washer EHB916V-155 Bracket-L.H. EHB-916V | EHB-1018V...
  • Page 22 Index No. Part No. Description Size Qty. EHB916V-156 Blade Cover 156-1 EHB916V-156-1 Screw 156-2 TS-0680011 Washer EHB916V-157 Blade Cover EHB916V-158 Special Knob TS-0680041 Flat Washer 3/8" EHB916V-160 Hex Head Screw 3/8 ×16 ×3/4" EHB916V-161 Bracket EHB916V-165 Round Head Screw 3/16 ×3/8" EHB916V-166 Cover L.H EHB916V-167...
  • Page 23 SAW STAND AND BED ASSEMBLY — EHB-1018V 79-2 79-1 72-1 79-3 79-5 79-4 72-2 56-1 57-1 36 37 91-1 78-2 78-1 EHB-916V | EHB-1018V...
  • Page 24 SAW STAND AND BED — EHB-1018V Index No. Part No. Description Size Qty. EHB916V-64 Fitting EHB916V-65 Tubing 5/16" × 65". EHB916V-66 Valve EHB916V-67 Feed Knob EHB916V-101 Cable Glands PG-11 TS-0209071 Socket Head Cap Screw 3/8 × 1-1/2" EHB916V-191 Special Washer EHB1018V-192 Vise Jaw Bracket EHB916V-193...
  • Page 25 EHB-916V-275 Knob EHB-916V-276 Adjustable Bolt EHB916V-277 Spring EHB916V-278 Gun Set 78-1 EHB916V-278-1 Hook 78-2 EHB916V-278-2 Hex Cap Screw EHB916V-281 Coolant Tank 79-1 EHB1018V-281-1 Coolant Pump 79-2 EHB916V-281-2 Pan Head Machine Screw 79-3 EHB916V-96 3 Way Coolant Block EHB-916V | EHB-1018V...
  • Page 26 Index No. Part No. Description Size Qty. 79-4 EHB916V-281-4 Lock W/Key 79-5 EHB916V-281-5 Lock W/o Key EHB916V-283 Hex Nut 1/2"-12T EHB916V-284 Hex Cap Screw 1/2" -12T x 2" EHB1018V-285 Seat TS-0720081 Lockwasher 5/16" TS-0051051 Hex Head Screw 5/16"-18 ×1" EHB916V-289 Socket Head Button Screw 3/16"...
  • Page 27 SAW ARM ASSEMBLY — EHB-1018V EHB-916V | EHB-1018V...
  • Page 28 PARTS LIST SAW ARM — EHB-1018V Index No. Part No. Description Size Qty. EHB916V-01 Handwheel EHB916V-01-1 Handwheel handle EHB916V-02 Collar EHB916V-03 Shaft EHB916V-04 Bracket EHB916V-05 Slide EHB916V-06 EHB916V-07 Collar EHB916V-08 Roll pin M5x30 EHB916V-08-1 Roll pin M5x40 TS-0081031 Hex Cap Screw 5/16 x 3/4 EHB916V-10 Adjusting Screw...
  • Page 29 EHB916V-91 Front Pivot Bracket TS-0732061 Lock Washer 3/8" TS-0060081 Hex Cap Screw 3/8-16 ×3/4" TS-0271051 Socket Set Screw 3/8-16 ×1/2" EHB1018V-95 Motor 2Hp,230V EHB916V-96 3 Way Coolant Block EHB916V-97 Hose EHB916V-98 Valve EHB1018V-99 Horse Clamp EHB916V-100 Belt EHB-916V | EHB-1018V...
  • Page 30 Index No. Part No. Description Size Qty. EHB916V-103 Upper Guard EHB916V-109 Lower Guard EHB916V-110 Motor Pulley TS-0270021 Socket Set Screw 5/16-18 ×5/16" EHB916V-112 Pulley TS-0270021 Socket Set Screw 5/16-18 ×5/16" EHB916V-114 5 x 5 x 40 TS-0720081 Lock Washer 5/16" EHB916V-119 Hex Head Screw 5/16”-20 ×3/4"...
  • Page 31 Index No. Part No. Description Size Qty. EHB1018V-161 Bracket EHB916V-165 Round Head Screw 3/16 ×3/8" EHB-916V-166 Cover L.H EHB916V-167 Handle TS-081F051 Phillips Screw 1/4"-20 × 3/4" 891096 Blade 1" x 0.035" x 132-1/2"( 4/6T) EHB-916V | EHB-1018V...
  • Page 32 308-2-1 308-12 308-2 308-3 308-4 308-1 308-7 308-8 308-5 308-11 308-6 308-19 308-16 308-15 308-10 308-9 PARTS LIST ELECTRICAL BOX — EHB-916V Index No. Part No. Description Size Qty. 308-1 EHB916V-308-1 Transformer 115/230/110V 308-2 EHB916V-308-2 Fuse Blocks 308-2-1 EHB916V-308-2-1 Fuse...
  • Page 33 Control Wire 308-11 EHB916V-308-11 Ground Cable Yellow/Green 308-12 EHB1018V-308-12 Overload Relay 11.3-16A 308-13 EHB916V-308-13 Magnetic Contactor CU-11 110V 308-13-1 EHB916V-308-13 Magnetic Contactor CU-11 110V 308-15 EHB1018V-308-15 Motor Cable 308-16 EHB916V-308-16 Pump Cable 308-19 EHB916V-308-19 Limit Switch Cable EHB-916V | EHB-1018V...

  • Page 34: Wiring Diagram

    16.0 WIRING DIAGRAM Horizontal Band Saw...
  • Page 35 NOTES EHB-916V | EHB-1018V...
  • Page 36 NOTES Horizontal Band Saw...
