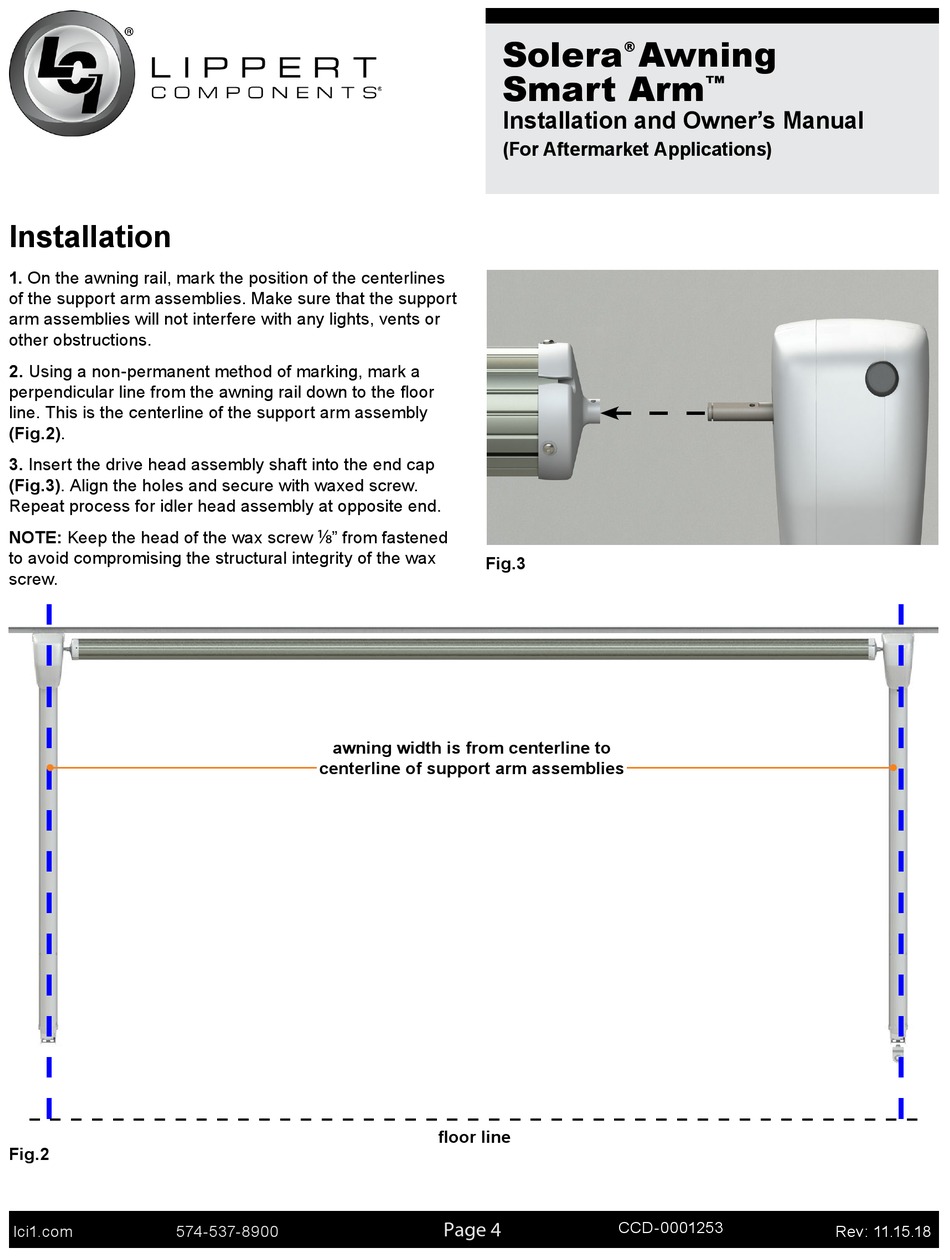

Installation
1. On the awning rail, mark the position of the centerlines
of the support arm assemblies� Make sure that the support
arm assemblies will not interfere with any lights, vents or
other obstructions�
2. Using a non-permanent method of marking, mark a
perpendicular line from the awning rail down to the floor
line� This is the centerline of the support arm assembly
(Fig.2)�
3. Insert the drive head assembly shaft into the end cap
(Fig.3)� Align the holes and secure with waxed screw�
Repeat process for idler head assembly at opposite end�
NOTE: Keep the head of the wax screw
to avoid compromising the structural integrity of the wax
screw�
Fig.2
lci1�com
574-537-8900
1/8
" from fastened
Fig.3
awning width is from centerline to
centerline of support arm assemblies
floor line
Page 4
Solera
Awning
®
Smart Arm
Installation and Owner's Manual
(For Aftermarket Applications)
CCD-0001253
™
Rev: 11�15�18
