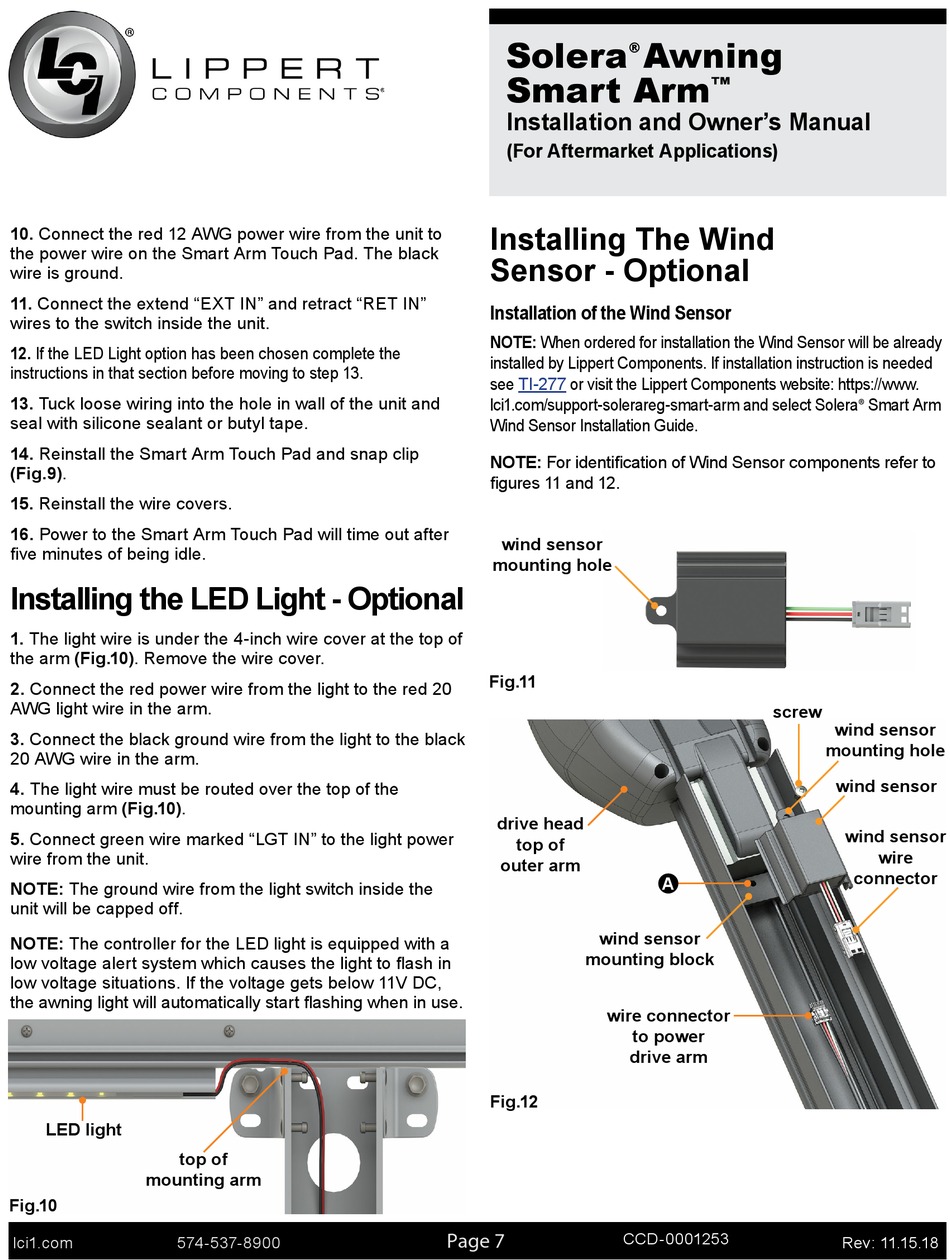

Installing The Led Light - Optional; Installing The Wind Sensor - Optional; Installation Of The Wind Sensor - Lippert Components Solera Installation And Owner's Manual

10. Connect the red 12 AWG power wire from the unit to
the power wire on the Smart Arm Touch Pad� The black
wire is ground�
11. Connect the extend "EXT IN" and retract "RET IN"
wires to the switch inside the unit�
12. If the LED Light option has been chosen complete the
instructions in that section before moving to step 13�
13. Tuck loose wiring into the hole in wall of the unit and
seal with silicone sealant or butyl tape�
14. Reinstall the Smart Arm Touch Pad and snap clip
(Fig.9)�
15. Reinstall the wire covers�
16. Power to the Smart Arm Touch Pad will time out after
five minutes of being idle.

Installing the LED Light - Optional

1. The light wire is under the 4-inch wire cover at the top of
the arm (Fig.10)� Remove the wire cover�
2. Connect the red power wire from the light to the red 20
AWG light wire in the arm�
3. Connect the black ground wire from the light to the black
20 AWG wire in the arm�
4. The light wire must be routed over the top of the
mounting arm (Fig.10)�
5. Connect green wire marked "LGT IN" to the light power
wire from the unit�
NOTE: The ground wire from the light switch inside the
unit will be capped off�
NOTE: The controller for the LED light is equipped with a
low voltage alert system which causes the light to flash in
low voltage situations� If the voltage gets below 11V DC,
the awning light will automatically start flashing when in use.
LED light
top of
mounting arm
Fig.10
lci1�com 574-537-8900
Solera
Smart Arm
Installation and Owner's Manual
(For Aftermarket Applications)
Installing The Wind
Sensor - Optional

Installation of the Wind Sensor

NOTE: When ordered for installation the Wind Sensor will be already
installed by Lippert Components� If installation instruction is needed
see TI-277 or visit the Lippert Components website: https://www�
lci1�com/support-solerareg-smart-arm and select Solera® Smart Arm
Wind Sensor Installation Guide�
NOTE: For identification of Wind Sensor components refer to
figures 11 and 12.
wind sensor
mounting hole
Fig.11
drive head
top of
outer arm
wind sensor
mounting block
wire connector
Fig.12
Page 7
CCD-0001253
Awning
®
™
screw
A
to power
drive arm
wind sensor
mounting hole
wind sensor
wind sensor
wire
connector
Rev: 11�15�18
