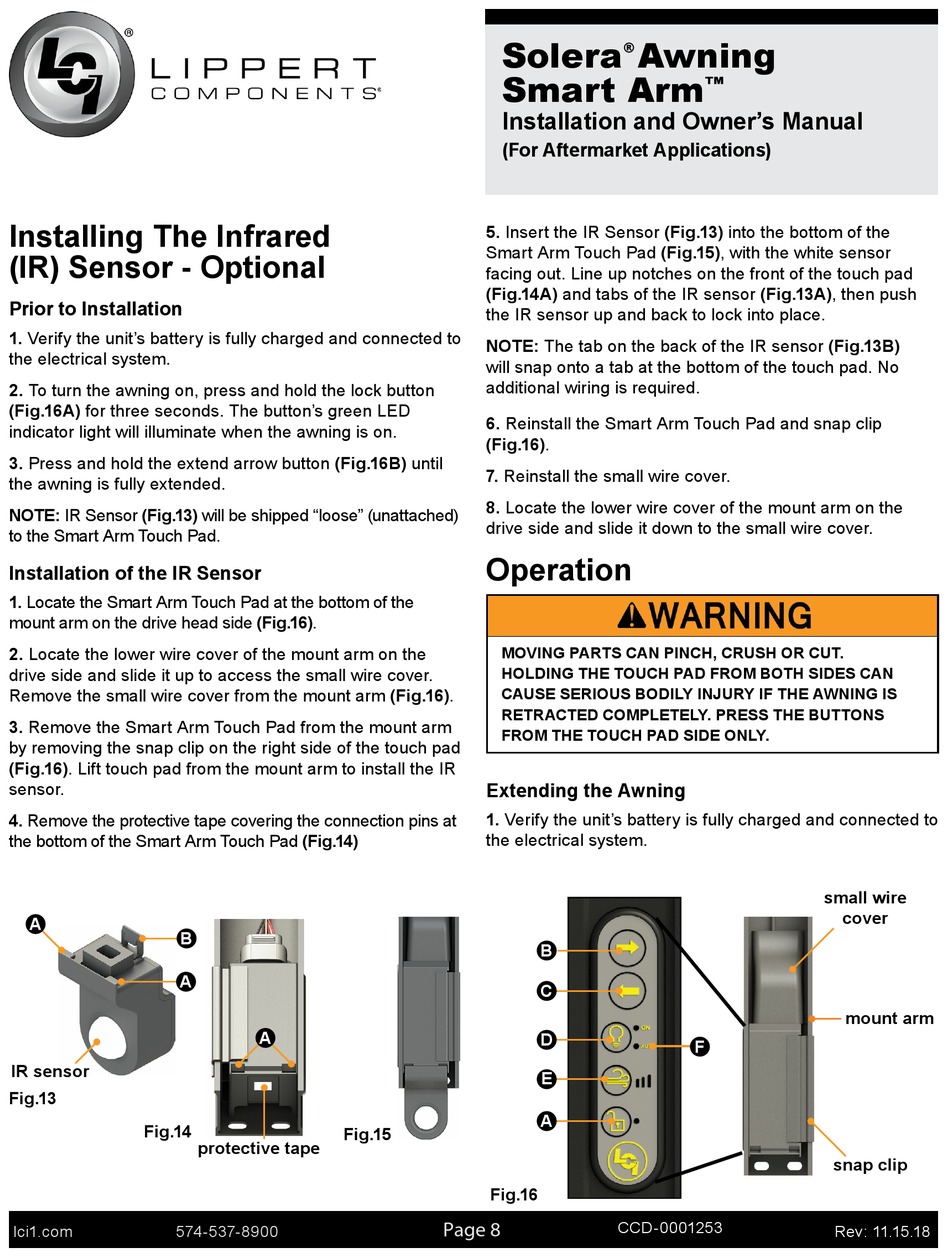

Installing The Infrared
(IR) Sensor - Optional

Prior to Installation

1. Verify the unit's battery is fully charged and connected to
the electrical system�
2. To turn the awning on, press and hold the lock button
(Fig.16A) for three seconds� The button's green LED
indicator light will illuminate when the awning is on�
3. Press and hold the extend arrow button (Fig.16B) until
the awning is fully extended�
NOTE: IR Sensor (Fig.13) will be shipped "loose" (unattached)
to the Smart Arm Touch Pad�

Installation of the IR Sensor

1. Locate the Smart Arm Touch Pad at the bottom of the
mount arm on the drive head side (Fig.16)�
2. Locate the lower wire cover of the mount arm on the
drive side and slide it up to access the small wire cover�
Remove the small wire cover from the mount arm (Fig.16)�
3. Remove the Smart Arm Touch Pad from the mount arm
by removing the snap clip on the right side of the touch pad
(Fig.16)� Lift touch pad from the mount arm to install the IR
sensor�
4. Remove the protective tape covering the connection pins at
the bottom of the Smart Arm Touch Pad (Fig.14)
A
B
A
IR sensor
Fig.13
Fig.14
lci1�com 574-537-8900
A
Fig.15
protective tape
Solera
Smart Arm

Installation and Owner's Manual

(For Aftermarket Applications)

5. Insert the IR Sensor (Fig.13) into the bottom of the
Smart Arm Touch Pad (Fig.15), with the white sensor
facing out� Line up notches on the front of the touch pad
(Fig.14A) and tabs of the IR sensor (Fig.13A), then push
the IR sensor up and back to lock into place�
NOTE: The tab on the back of the IR sensor (Fig.13B)
will snap onto a tab at the bottom of the touch pad� No
additional wiring is required�
6. Reinstall the Smart Arm Touch Pad and snap clip
(Fig.16)�
7. Reinstall the small wire cover�
8. Locate the lower wire cover of the mount arm on the
drive side and slide it down to the small wire cover�

Operation

MOVING PARTS CAN PINCH, CRUSH OR CUT.
HOLDING THE TOUCH PAD FROM BOTH SIDES CAN
CAUSE SERIOUS BODILY INJURY IF THE AWNING IS
RETRACTED COMPLETELY. PRESS THE BUTTONS
FROM THE TOUCH PAD SIDE ONLY.

Extending the Awning

1. Verify the unit's battery is fully charged and connected to
the electrical system�
B
C
D
E
A
Fig.16
Page 8
CCD-0001253
Awning
®
™
F
small wire
cover
mount arm
snap clip
Rev: 11�15�18
