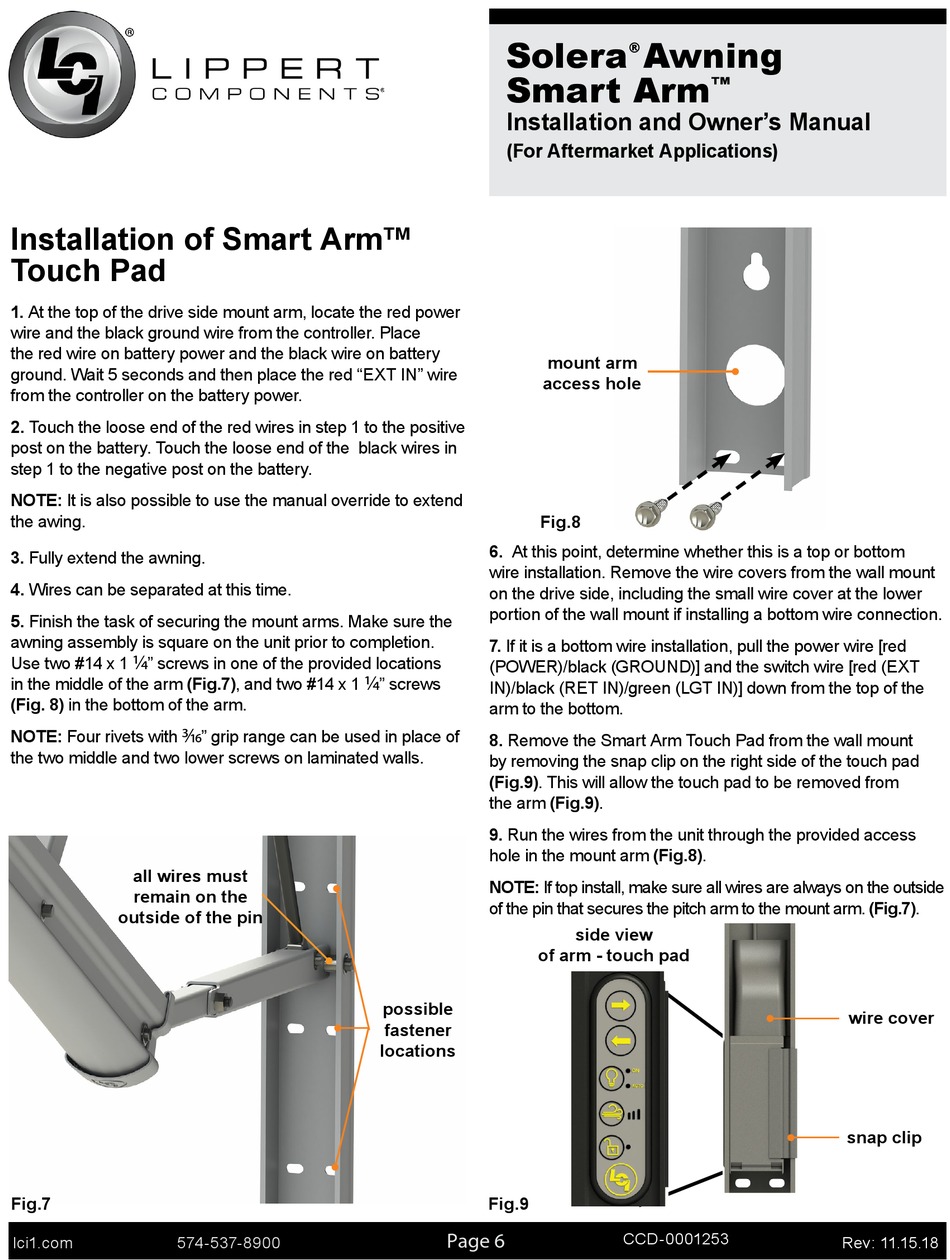

Installation of Smart Arm™
Touch Pad
1. At the top of the drive side mount arm, locate the red power
wire and the black ground wire from the controller� Place
the red wire on battery power and the black wire on battery
ground� Wait 5 seconds and then place the red "EXT IN" wire
from the controller on the battery power�
2. Touch the loose end of the red wires in step 1 to the positive
post on the battery� Touch the loose end of the black wires in
step 1 to the negative post on the battery�
NOTE: It is also possible to use the manual override to extend
the awing�
3. Fully extend the awning�
4. Wires can be separated at this time�
5. Finish the task of securing the mount arms� Make sure the
awning assembly is square on the unit prior to completion�
1/4
Use two #14 x 1 " screws in one of the provided locations
in the middle of the arm (Fig.7), and two #14 x 1
(Fig. 8) in the bottom of the arm�
3/16
NOTE: Four rivets with
the two middle and two lower screws on laminated walls�
all wires must
remain on the
outside of the pin
Fig.7
lci1�com 574-537-8900
1/4
" screws
" grip range can be used in place of
locations
Solera
Smart Arm
Installation and Owner's Manual
(For Aftermarket Applications)
mount arm
access hole
Fig.8
6. At this point, determine whether this is a top or bottom
wire installation� Remove the wire covers from the wall mount
on the drive side, including the small wire cover at the lower
portion of the wall mount if installing a bottom wire connection�
7. If it is a bottom wire installation, pull the power wire [red
(POWER)/black (GROUND)] and the switch wire [red (EXT
IN)/black (RET IN)/green (LGT IN)] down from the top of the
arm to the bottom�
8. Remove the Smart Arm Touch Pad from the wall mount
by removing the snap clip on the right side of the touch pad
(Fig.9)� This will allow the touch pad to be removed from
the arm (Fig.9)�
9. Run the wires from the unit through the provided access
hole in the mount arm (Fig.8)�
NOTE: If top install, make sure all wires are always on the outside
of the pin that secures the pitch arm to the mount arm� (Fig.7)�
of arm - touch pad
possible
fastener
Fig.9
Page 6
Awning
®
™
side view
CCD-0001253
wire cover
snap clip
Rev: 11�15�18
