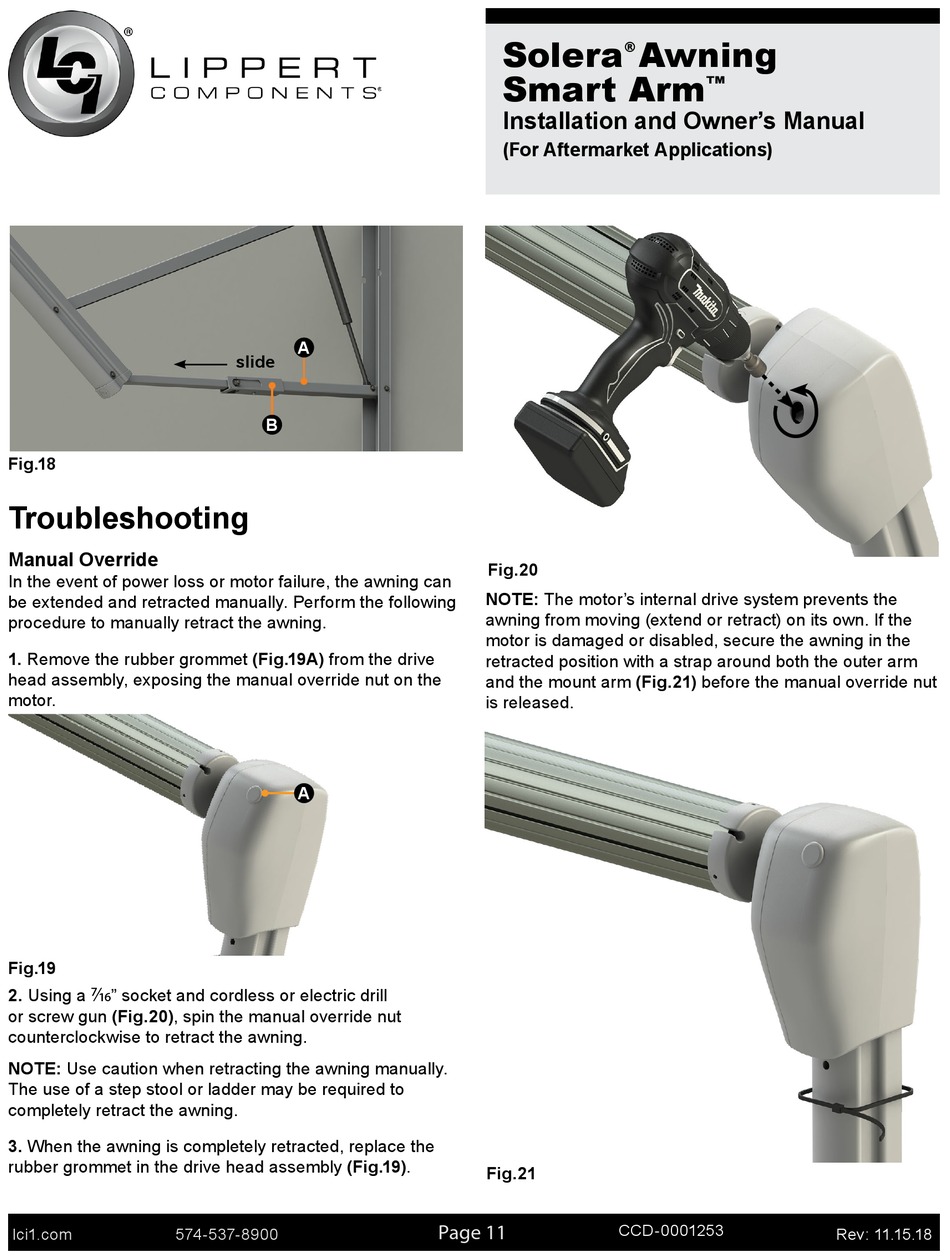

Troubleshooting; Manual Override - Lippert Components Solera Installation And Owner's Manual

Smart arm awning
Hide thumbs Also See for Solera:
Table of Contents

Advertisement

Fig.18

Troubleshooting

Manual Override

In the event of power loss or motor failure, the awning can
be extended and retracted manually� Perform the following
procedure to manually retract the awning�
1. Remove the rubber grommet (Fig.19A) from the drive
head assembly, exposing the manual override nut on the
motor�
Fig.19
7/16
2. Using a
" socket and cordless or electric drill
or screw gun (Fig.20), spin the manual override nut
counterclockwise to retract the awning�
NOTE: Use caution when retracting the awning manually�
The use of a step stool or ladder may be required to
completely retract the awning�
3. When the awning is completely retracted, replace the
rubber grommet in the drive head assembly (Fig.19)�
lci1�com
574-537-8900
A
slide
B
A
Solera
Smart Arm
Installation and Owner's Manual
(For Aftermarket Applications)
Fig.20
NOTE: The motor's internal drive system prevents the
awning from moving (extend or retract) on its own� If the
motor is damaged or disabled, secure the awning in the
retracted position with a strap around both the outer arm
and the mount arm (Fig.21) before the manual override nut
is released�
Fig.21
Page 11
Awning
®
CCD-0001253
Rev: 11�15�18
